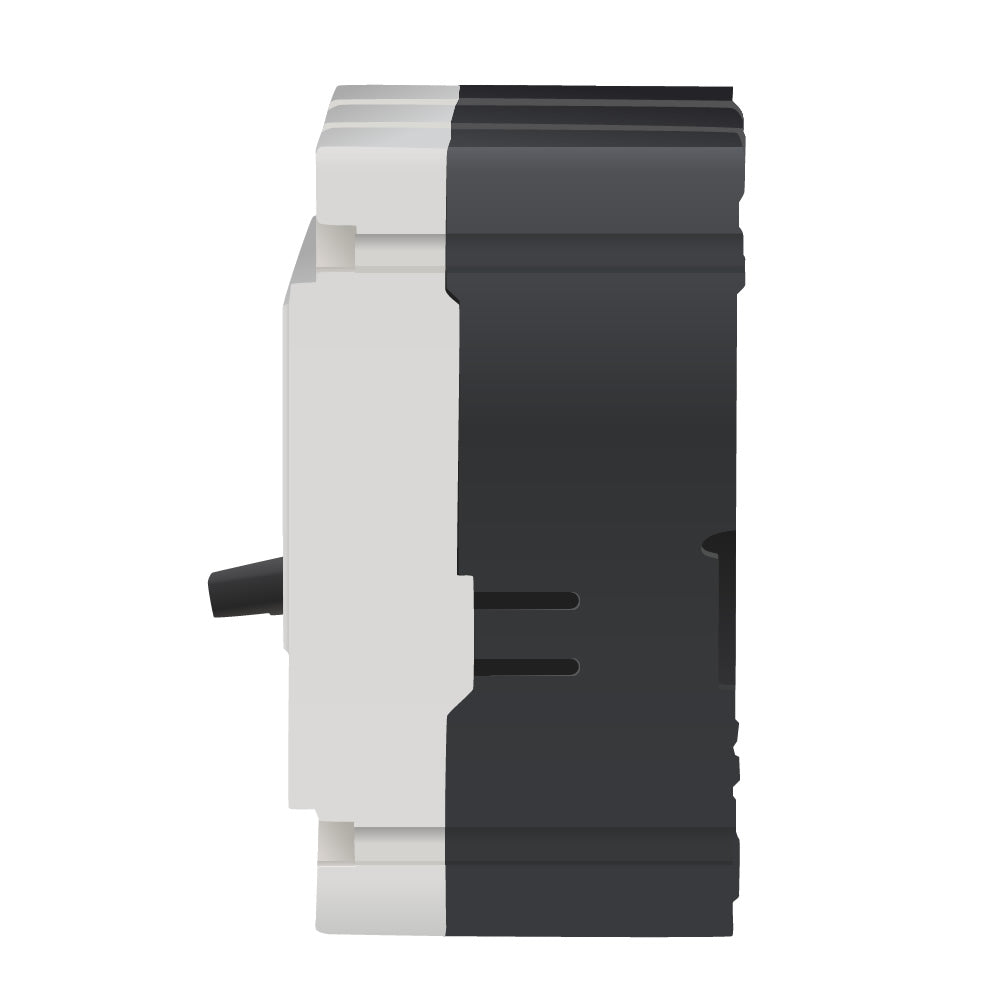

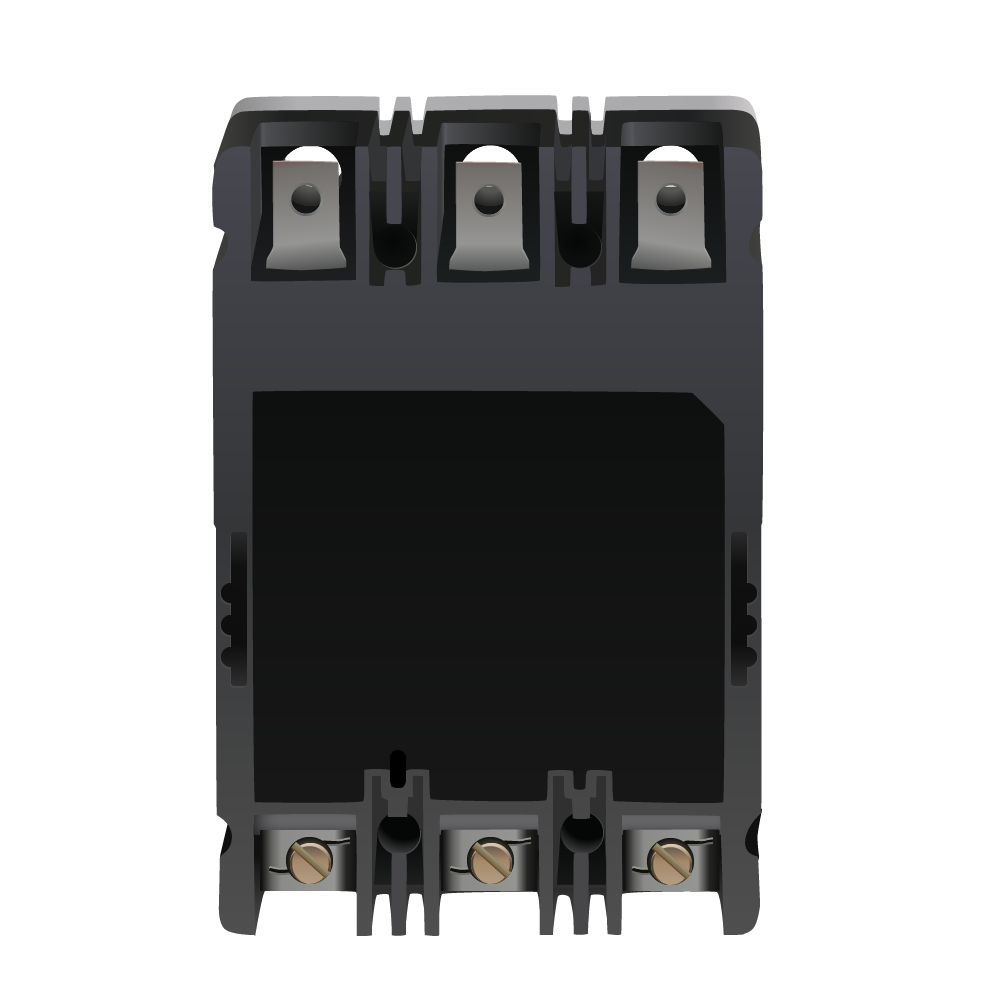

Cutler Hammer FD3100 - Molded Case Circuit Breaker 100A 600V 3P
Cutler Hammer FD3100 - Molded Case Circuit Breaker 100A 600V 3P
Cutler Hammer FD3100 - Molded Case Circuit Breaker 100A 600V 3P
Cutler Hammer FD3100 - Molded Case Circuit Breaker 100A 600V 3P

Cutler Hammer FD3100 - Molded Case Circuit Breaker 100A 600V 3P

Cutler Hammer
Price
Save $1,661.18
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer FD3100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact 225A frame with dimensions of 3.38" D x 6" H x 4.13" W and a weight of 4.5 lb. The breaker is constructed with a thermal-magnetic trip unit for LI (Long-time and Instantaneous) protection and utilizes a three-pole, bolt-on connection with load-side lugs compatible with wire sizes from 14 AWG to 1/0 AWG. It complies with UL, CSA, and IEC standards and is rated for an interrupting capacity of 35kA at 480V AC, operating effectively in temperatures from -4°F to 158°F. This breaker is typically applied in motor control centers (MCCs), switchboards, and enclosed control panels from manufacturers like Allen-Bradley, Eaton, and Rockwell Automation.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Frame Size: 225A/F
  • Poles: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: Bolt-On, Load Side Lug
  • Phase Connection: 3-Phase, ABC
  • Protection Functions: LI (Long-Time & Instantaneous)
  • Wire Size Range: 14 AWG to 1/0 AWG
  • Dimensions: 3.38 in (D) x 6 in (H) x 4.13 in (W)
  • Weight: 4.5 lb
  • Operating Temperature: -4°F to 158°F (-20°C to 70°C)
  • Standards & Certification: UL Listed, CSA Certified, IEC Rated
  • Compatible Panel Types: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse


Product Identification
  • UPC: 786679305768
  • GTIN: 00786679305768
