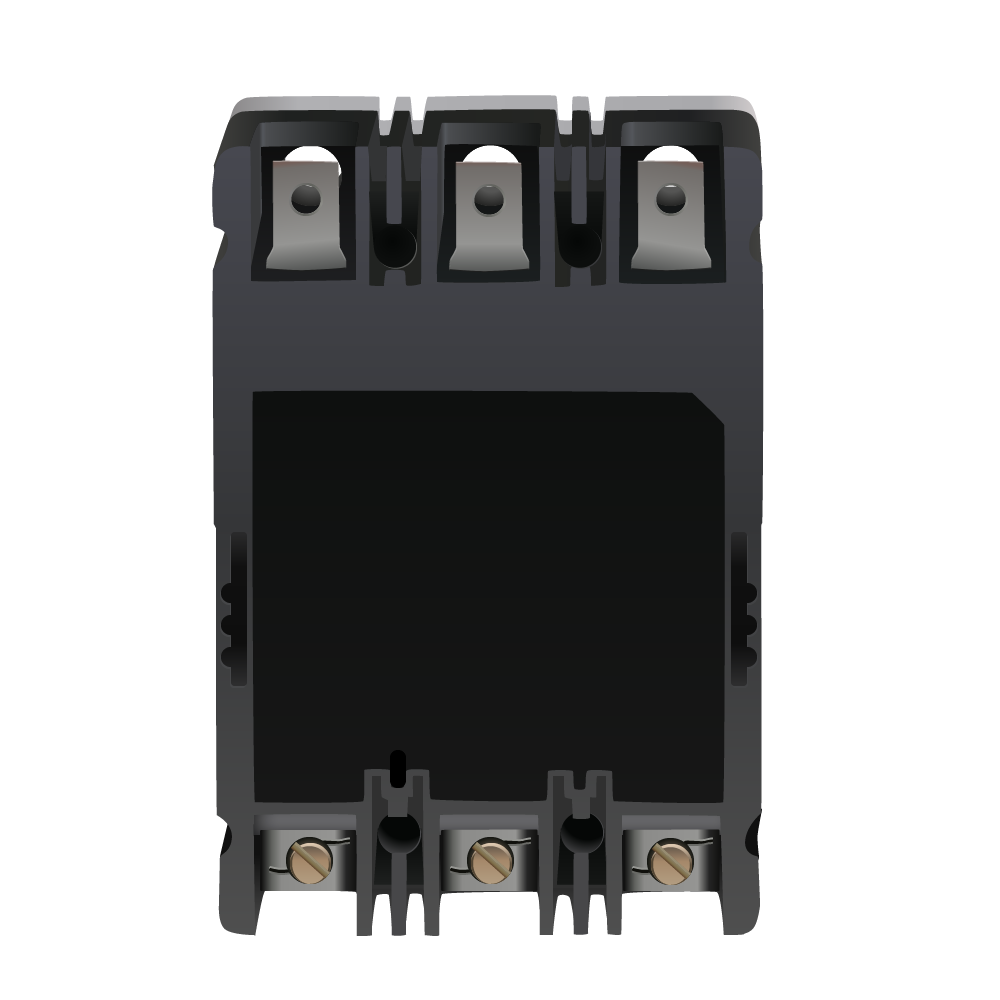

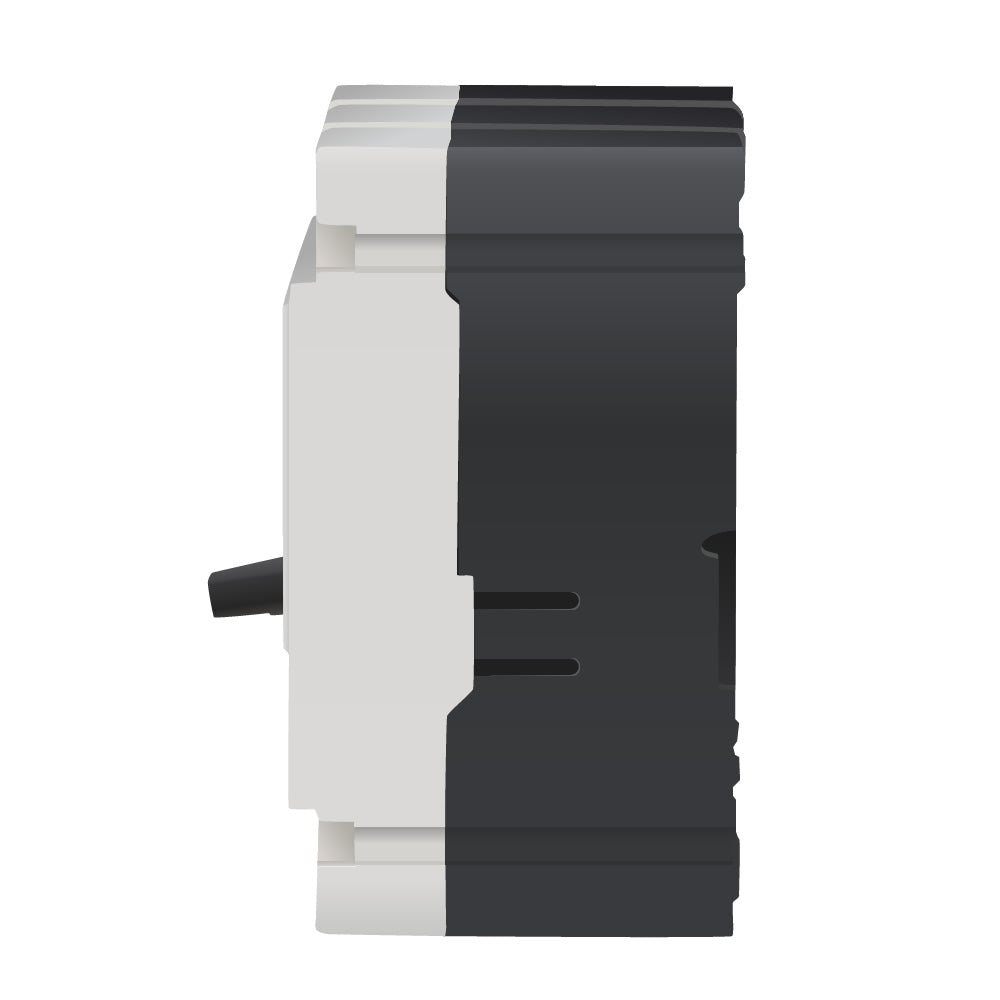

Cutler Hammer FD3060 - Molded Case Circuit Breaker 60A 600V 3P
Cutler Hammer FD3060 - Molded Case Circuit Breaker 60A 600V 3P
Cutler Hammer FD3060 - Molded Case Circuit Breaker 60A 600V 3P
Cutler Hammer FD3060 - Molded Case Circuit Breaker 60A 600V 3P

Cutler Hammer FD3060 - Molded Case Circuit Breaker 60A 600V 3P

Cutler Hammer
Price
Save $1,889.65
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer FD3060 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power systems. It features a 60A current rating and a 600V AC voltage rating, housed within a compact 225A frame with dimensions of 3.38" D x 6" H x 4.13" W and a weight of 4.5 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous (LI) protection, is CSA, UL, and IEC certified, and is commonly applied in motor control centers, switchboards, and enclosed control panels.

Key Features & Specifications
  • Type: FD Series C, 3-pole, bolt-on, thermal-magnetic molded case circuit breaker
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Frame Size: 225A/F
  • AIC Rating: 35kA at 480V AC
  • Poles: 3
  • Phase Connection: ABC
  • Protection Functions: Long-time and instantaneous (LI)
  • Connection: Bolt-on with load side lug terminals
  • Wire Size Range: 14 AWG to 1/0 AWG
  • Operating Temperature: -4°F to 158°F (-20°C to 70°C)
  • Standards & Certification: CSA Certified, UL Listed, IEC Rated
  • Typical Panel Types: Allen-Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Dimensions: 3.38 in (Depth) x 6 in (Height) x 4.13 in (Width)
  • Weight: 4.5 lb


Product Identification
  • UPC: 786679305713
  • GTIN: 00786679305713
