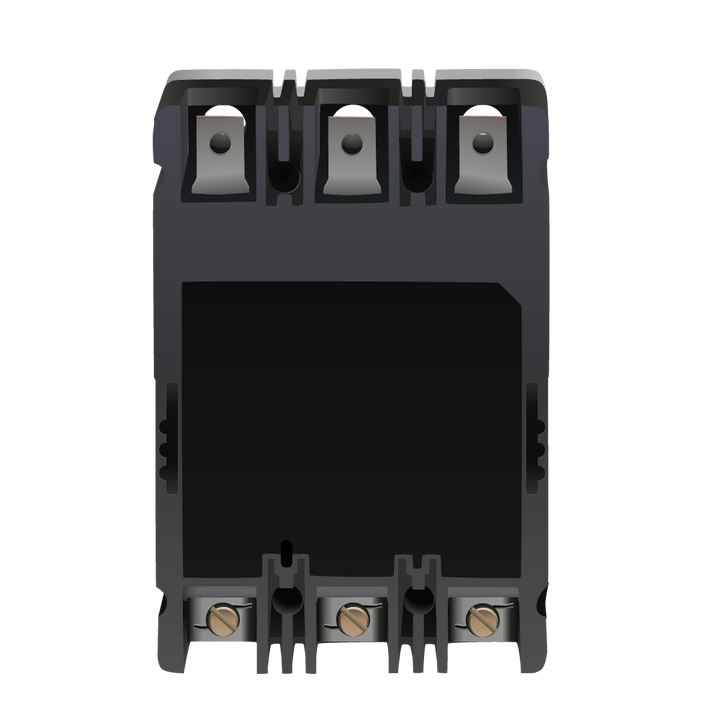

Eaton FD3035 - Molded Case Circuit Breaker 35A 600V 3P
Eaton FD3035 - Molded Case Circuit Breaker 35A 600V 3P
Eaton FD3035 - Molded Case Circuit Breaker 35A 600V 3P
Eaton FD3035 - Molded Case Circuit Breaker 35A 600V 3P

Eaton FD3035 - Molded Case Circuit Breaker 35A 600V 3P

Eaton
Price
Save $1,544.26
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price

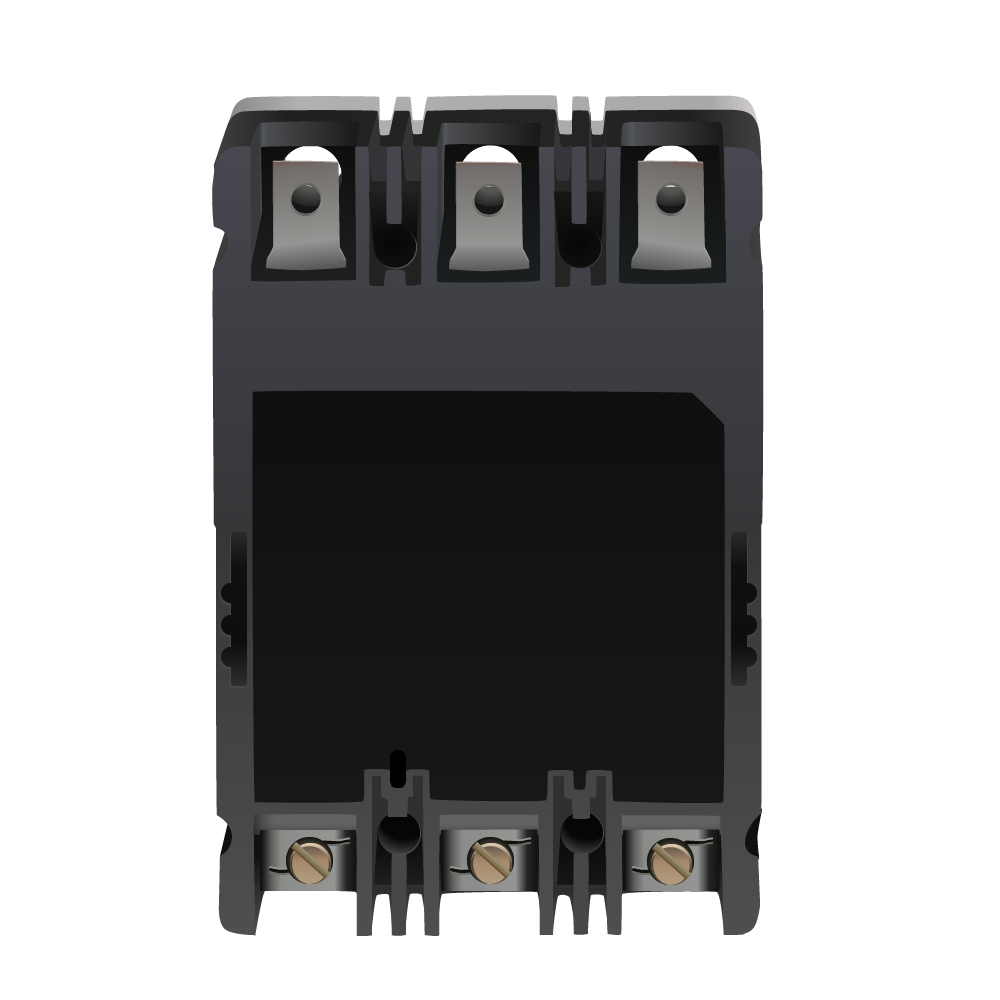

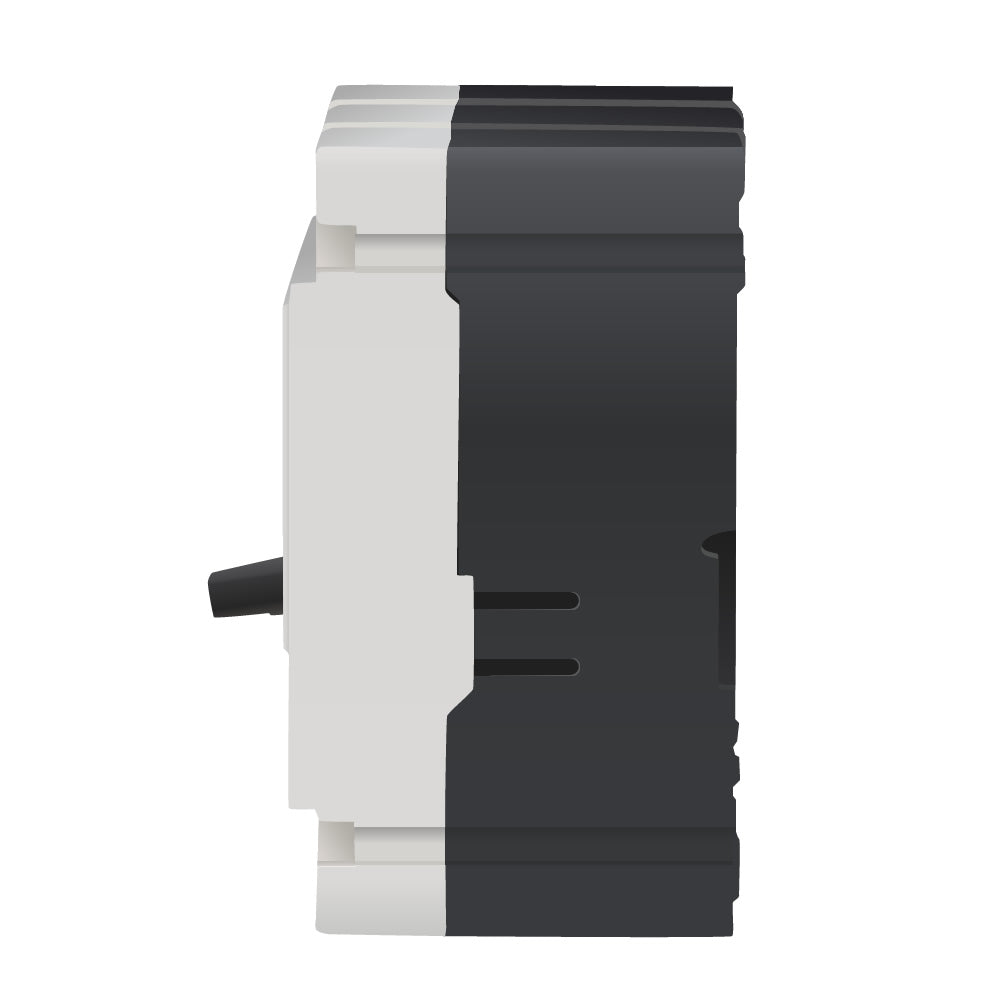

Eaton FD3035 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 35A current rating and a 600V voltage rating, housed within a compact 3.38" x 6" x 4.13" (LxHxW) bolt-on unit with a 225A frame size. This thermal magnetic breaker is CSA Certified, IEC Rated, and UL Listed, ensuring compliance with key industry standards for safety and performance. Its 35kA interrupting capacity at 480V and three-pole configuration make it suitable for integration into motor control centers, switchboards, and enclosed controls from major manufacturers like Allen-Bradley, Eaton, and Rockwell Automation.

Key Features & Specifications
  • Type: FD Series C, Molded Case, Thermal Magnetic Protection, Standard Breaker Type
  • Voltage Rating: 600V AC
  • Current Rating: 35A
  • Dimensions: 3.38 in (Depth) x 6 in (Height) x 4.13 in (Width)
  • Standards: CSA Certified, IEC Rated, UL Listed
  • Applications: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse Panel Types
  • Switch Type: Circuit Breaker
  • Configuration: Three-Pole
  • Temp Rating: -4°F to 158°F (-20°C to 70°C)
  • Shipping Dimensions: 3.38 in x 6 in x 4.13 in
  • Phase: 3
  • Voltage: 600V
  • Amperage: 35A
  • AIC rating: 35kA @ 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 225A/F
  • Panel Type: Compatible with listed MCCs and switchboards
  • Breaker Type: Standard
  • MCM Size: 14 AWG to 1/0 AWG
  • Mounting: Bolt-On
  • Phase Connection: ABC
  • Terminal Connection: Load Side Lug
  • Certification: CSA, IEC, UL
  • Current Rating: 35A
  • Weight: 4 lb


Product Identification
  • UPC: 786679305577
  • GTIN: 00786679305577
