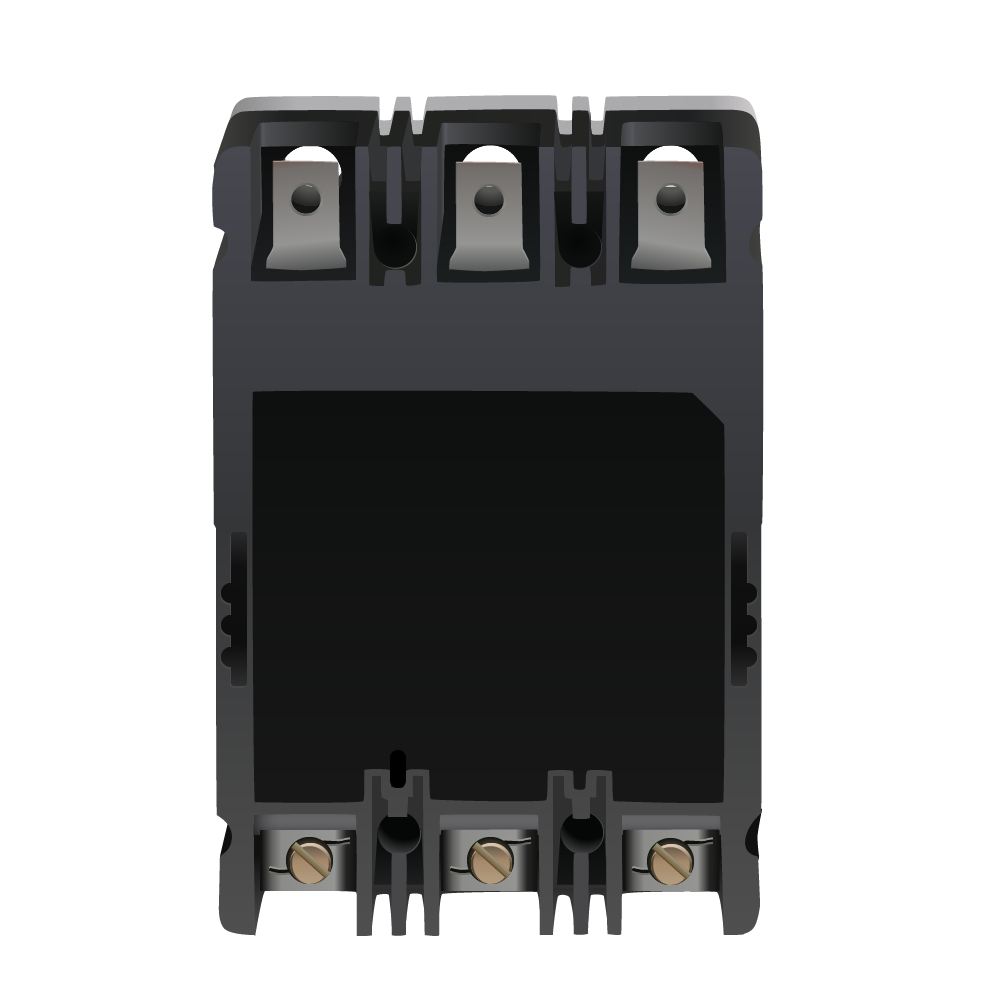

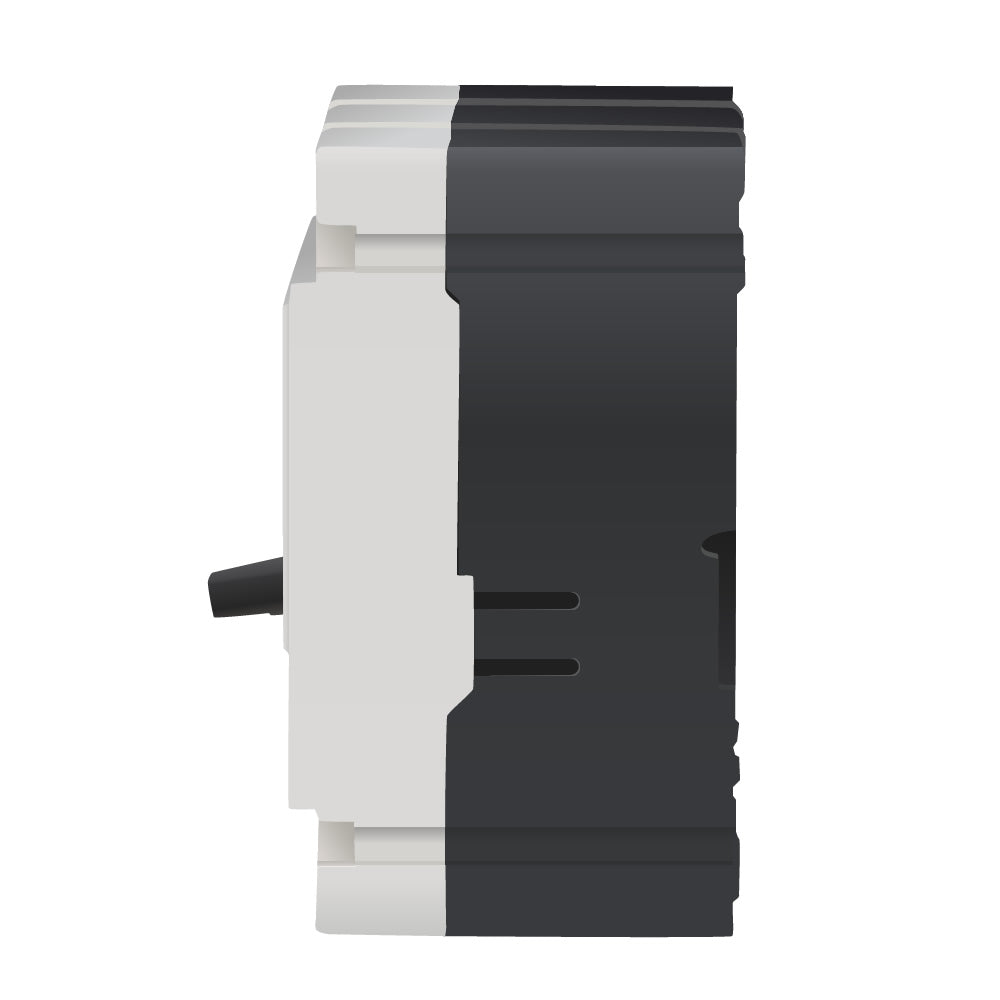

Cutler Hammer FD3025 - Molded Case Circuit Breaker, 25A 600V 3P
Cutler Hammer FD3025 - Molded Case Circuit Breaker, 25A 600V 3P
Cutler Hammer FD3025 - Molded Case Circuit Breaker, 25A 600V 3P
Cutler Hammer FD3025 - Molded Case Circuit Breaker, 25A 600V 3P

Cutler Hammer FD3025 - Molded Case Circuit Breaker, 25A 600V 3P

Cutler Hammer
Price
Save $1,465.02
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
The Cutler Hammer FD3025 is a molded case circuit breaker designed for reliable overcurrent protection in three-phase industrial power systems. It features a 25A current rating and a 600V AC voltage rating, housed within a compact, durable frame measuring 3.38" x 6" x 4.13" (LxHxW) and weighing 4.35 lb. This thermal-magnetic breaker provides both long-time and instantaneous (LI) protection functions, is CSA, UL, and IEC certified, and is engineered for integration into motor control centers, switchboards, and enclosed controls from major manufacturers.

Key Features & Specifications
  • Type: FD Series C, Molded Case, Thermal Magnetic Protection, Standard Breaker Type
  • Voltage Rating: 600V AC
  • Current Rating: 25A
  • Frame Size: 225A/F
  • Poles: 3
  • AIC Rating: 35kA at 480V
  • Connection: Bolt-On, Load Side Lug Terminal
  • Phase Connection: ABC, 3-Phase
  • Functions: LI (Long-Time and Instantaneous)
  • Wire Size Range: 14 AWG to 1/0 AWG
  • Operating Temperature: -4°F to 158°F (-20°C to 70°C)
  • Dimensions: 3.38 in (Depth) x 6 in (Height) x 4.13 in (Width)
  • Weight: 4.35 lb
  • Standards & Certification: CSA Certified, IEC Rated, UL Listed
  • Compatible Panel Types: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679305645
  • GTIN: 00786679305645
