Westinghouse FD2150 - Molded Case Circuit Breaker 150A 2-Pole
Westinghouse FD2150 - Molded Case Circuit Breaker 150A 2-Pole
Westinghouse FD2150 - Molded Case Circuit Breaker 150A 2-Pole
Westinghouse FD2150 - Molded Case Circuit Breaker 150A 2-Pole
Westinghouse FD2150 - Molded Case Circuit Breaker 150A 2-Pole
Westinghouse FD2150 - Molded Case Circuit Breaker 150A 2-Pole

Westinghouse FD2150 - Molded Case Circuit Breaker 150A 2-Pole

Cutler Hammer
Price
Save $4,706.35
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

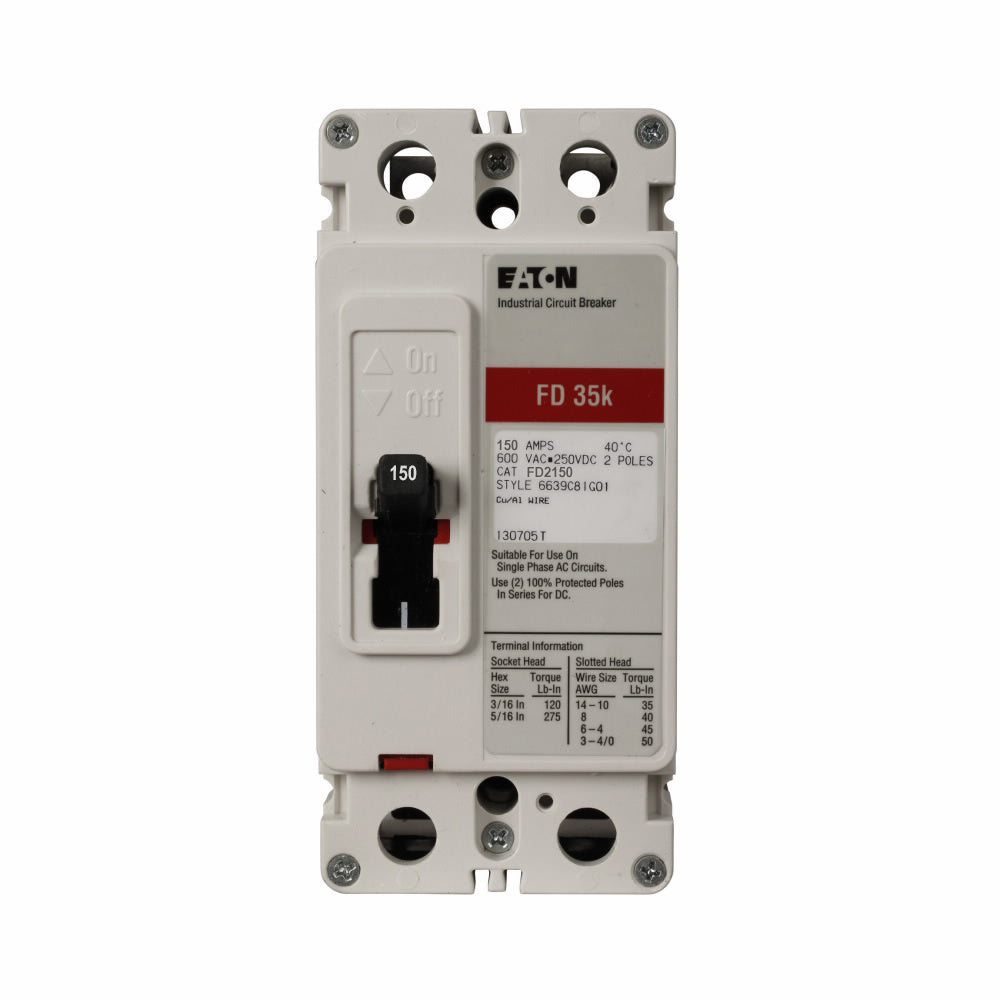

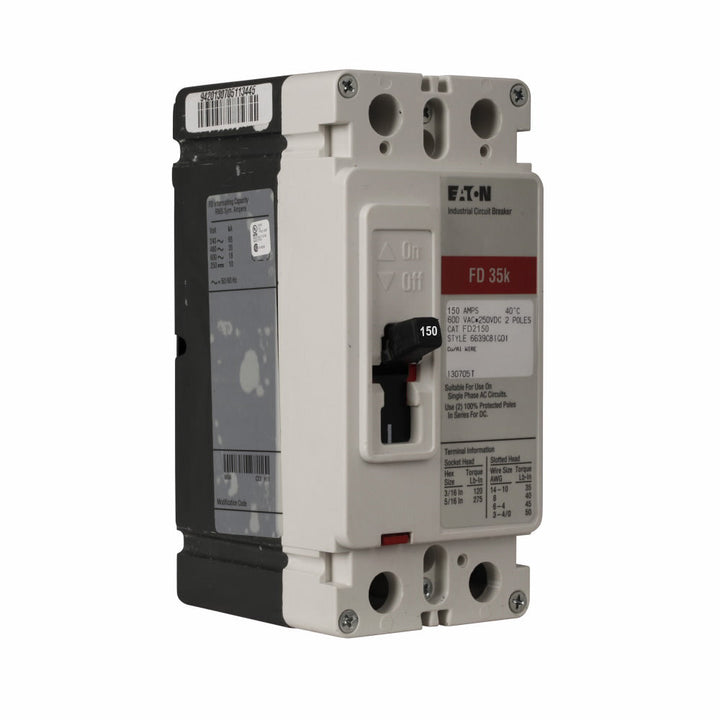

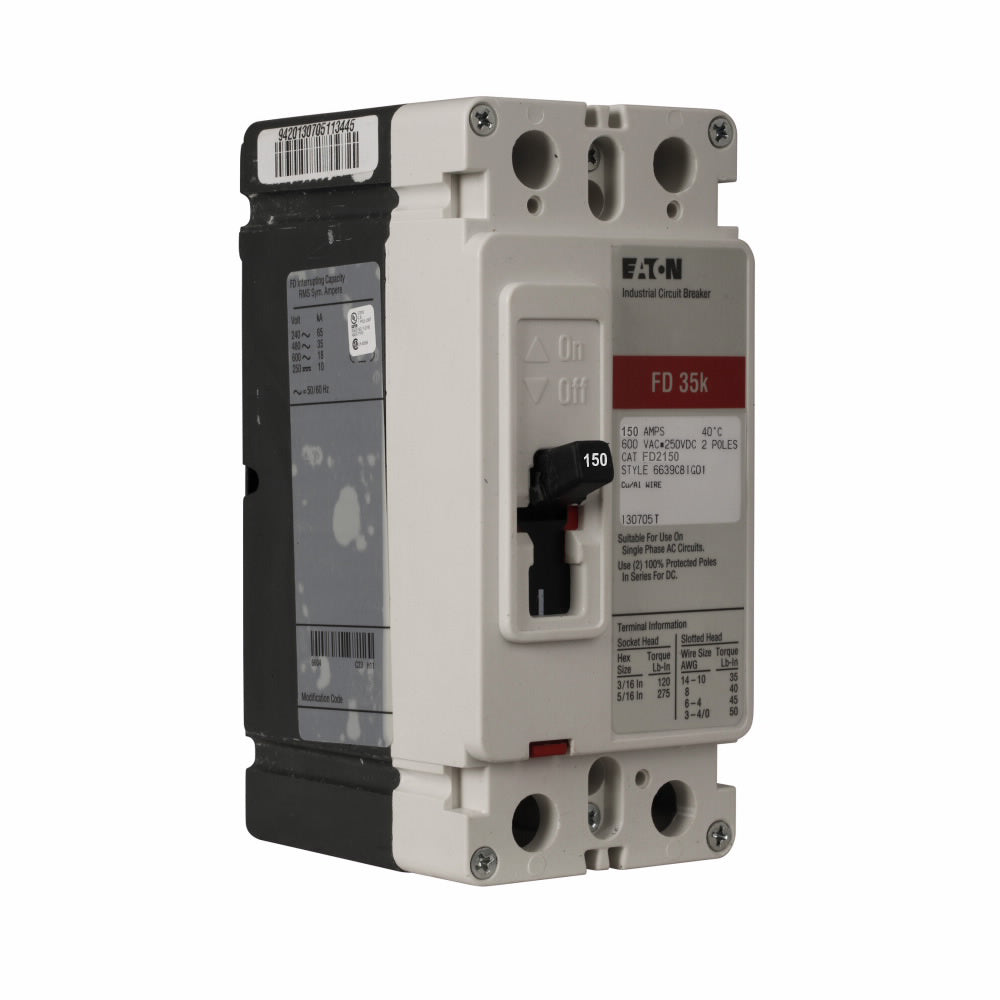

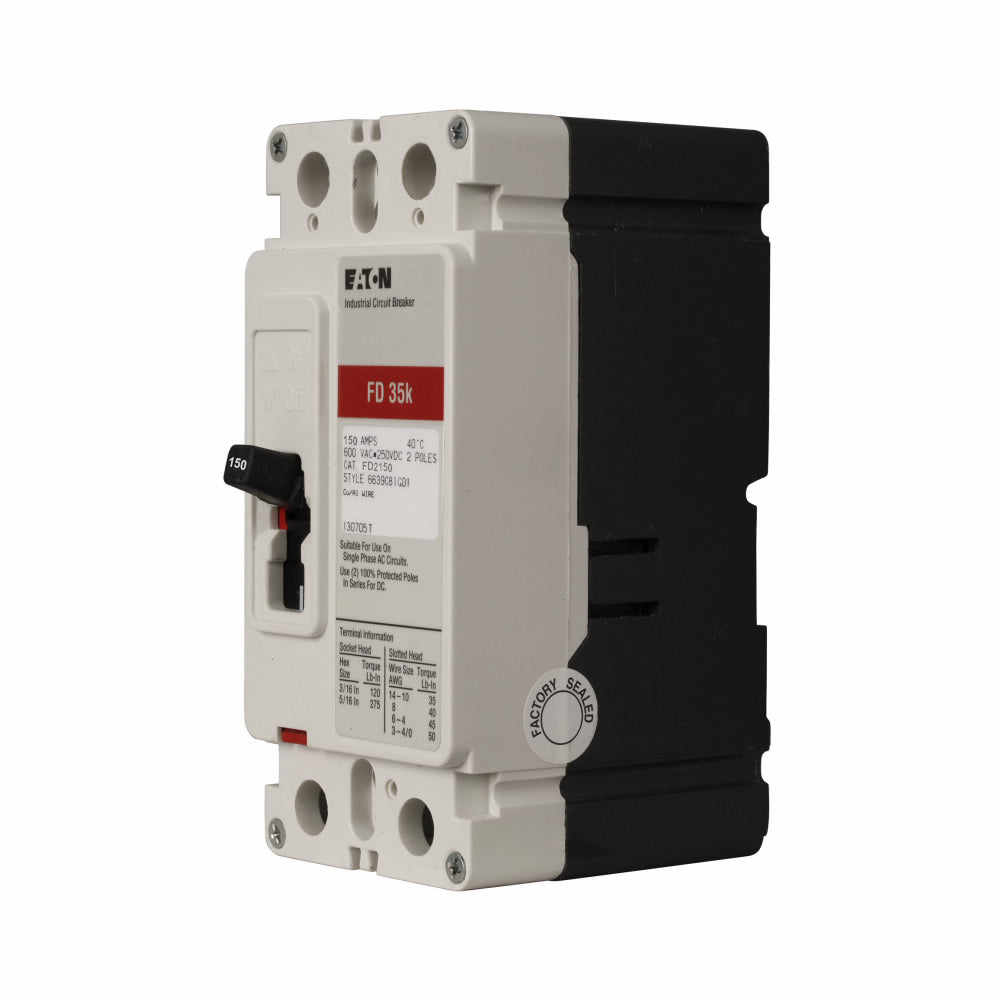

Westinghouse FD2150 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial electrical systems. It features a 150A current rating and a 600V voltage rating, housed within a compact F-frame measuring 3.38 in x 6 in x 5.2 in (L/D x H x W) with a bolt-on connection. This thermal magnetic breaker is UL Listed and provides 35kA interrupting capacity at 480V, with an operating temperature range of -25°C to 70°C (-13°F to 158°F). It is engineered for protecting feeders and branch circuits in commercial and industrial panelboards, utilizing a long-time and instantaneous (LI) trip function for coordinated system protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Dimensions: 3.38 in (Depth) x 6 in (Height) x 5.2 in (Width)
  • Standards: UL Listed
  • Applications: Industrial & Commercial Panelboards, Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: F Frame
  • Breaker Type: Molded Case
  • Weight: 2.95 lb
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679312322
  • GTIN: 00786679312322
