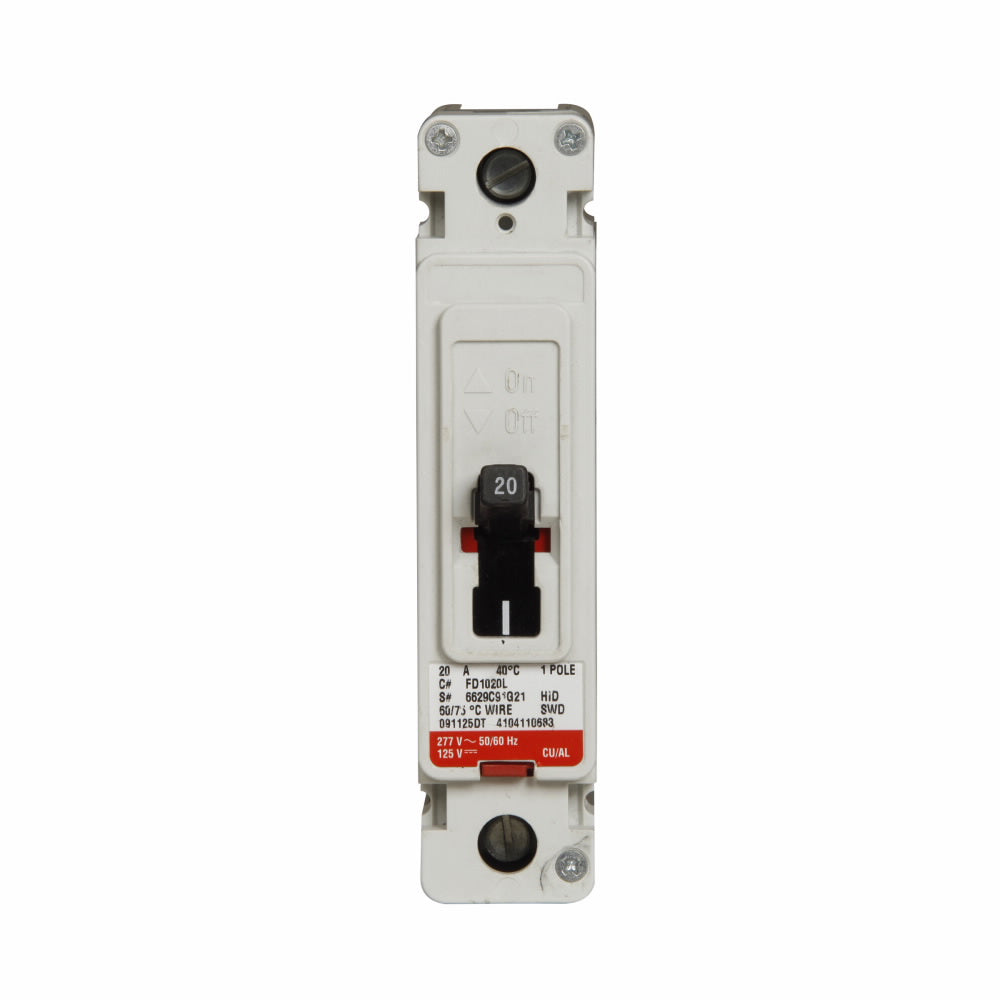

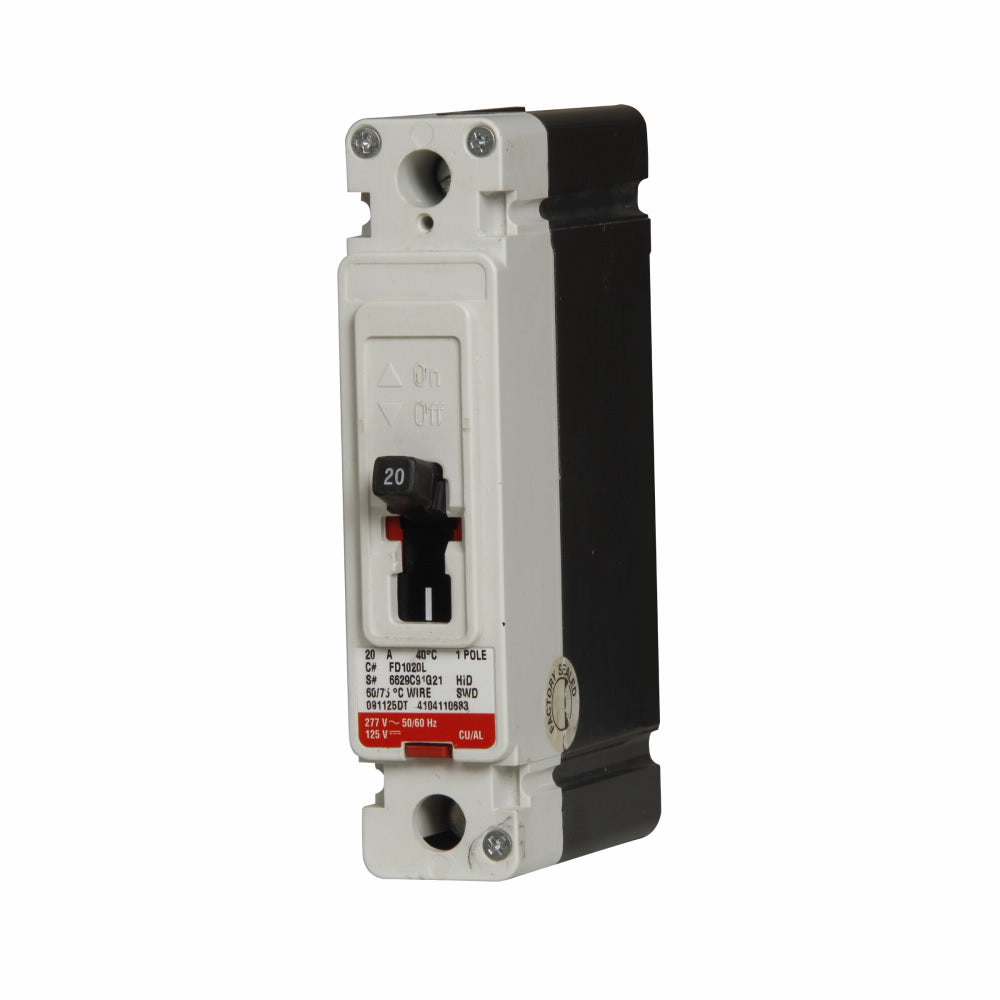

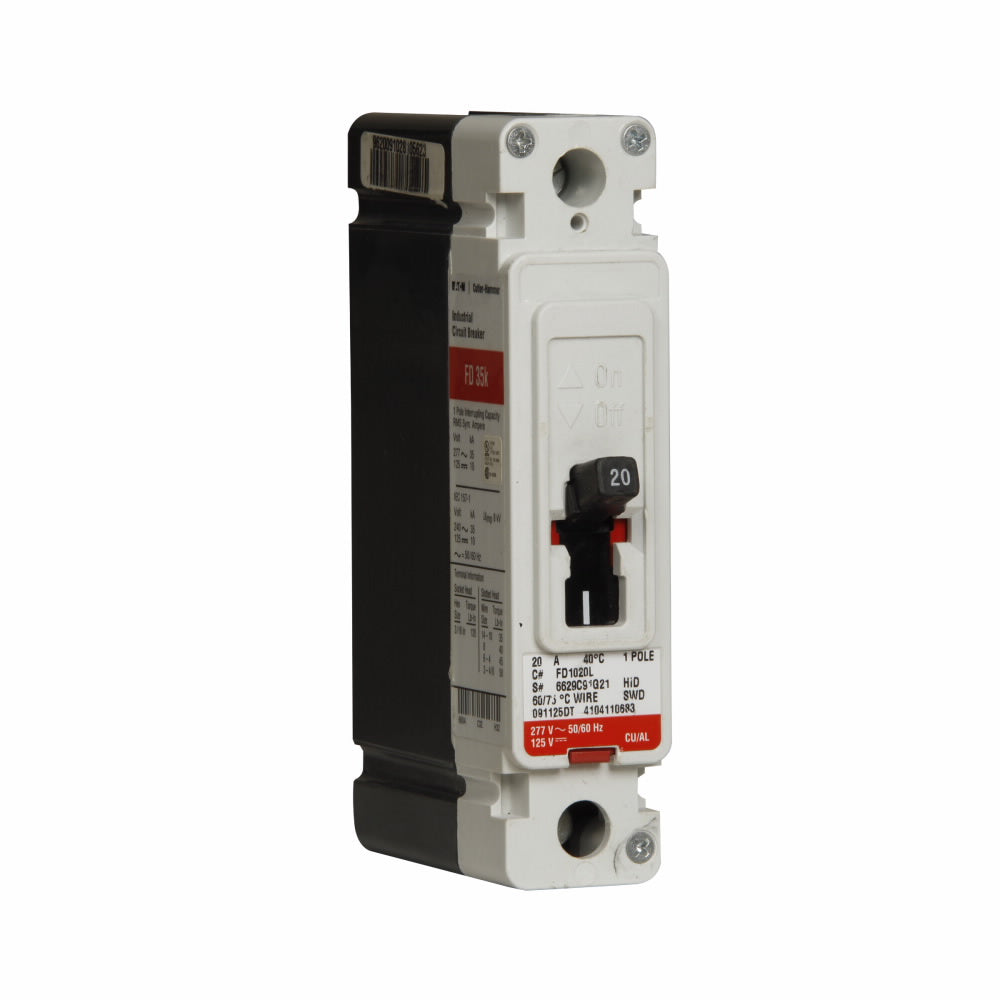

Cutler Hammer FD1020 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 20A current rating and a 277V AC voltage rating, housed within a compact 3.38" x 6" x 1.38" (LxHxW) bolt-on unit weighing 1.6 lb. This thermal magnetic breaker is CSA Certified, IEC Rated, and UL Listed, ensuring compliance with key industry standards for safety and performance. It is engineered for use in motor control centers, switchboards, and enclosed control panels, offering a 35kA interrupting capacity at 277V for robust fault protection.

Key Features & Specifications
  • Type: FD Series C, Standard Thermal Magnetic Molded Case Circuit Breaker
  • Voltage Rating: 277V AC
  • Current Rating: 20A
  • Dimensions: 3.38 in (Depth) x 6 in (Height) x 1.38 in (Width)
  • Standards: CSA Certified, IEC Rated, UL Listed
  • Applications: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse Panel
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On Connection
  • Temp Rating: -4°F to 158°F (-20°C to 70°C)
  • Shipping Dimensions: 3.38 in x 6 in x 1.38 in
  • Phase: 1
  • Voltage: 277V
  • Amperage: 20A
  • AIC rating: 35kA @ 277V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 225A/F
  • Trip Type: Thermal Magnetic
  • Panel Type: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 1/0 AWG
  • Insulation Temperature: Rated for -4°F to 158°F
  • Mounting: Bolt-On
  • Hz: 50/60 Hz
  • Phase Connection: A
  • Terminal Connection: Load Side Lug
  • Frequency Rating: 50/60 Hz
  • Standards: UL Listed, CSA Certified, IEC Rated
  • Certification: UL Listed
  • Item QTY: 1
  • Current Rating: 20A
  • Polarity: Single Pole
  • Operating Temperature Maximum Celsius: 70°C


Product Identification
  • UPC: 786679312117
  • GTIN: 00786679312117
