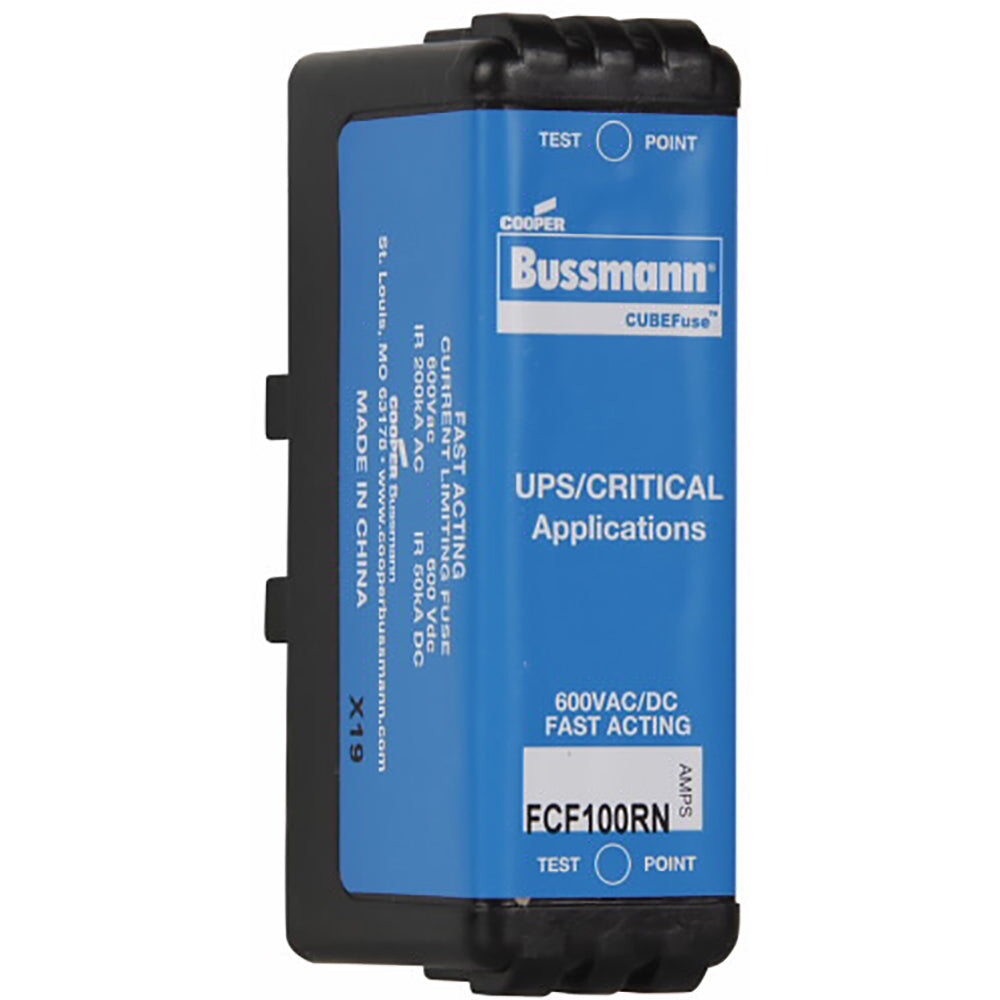

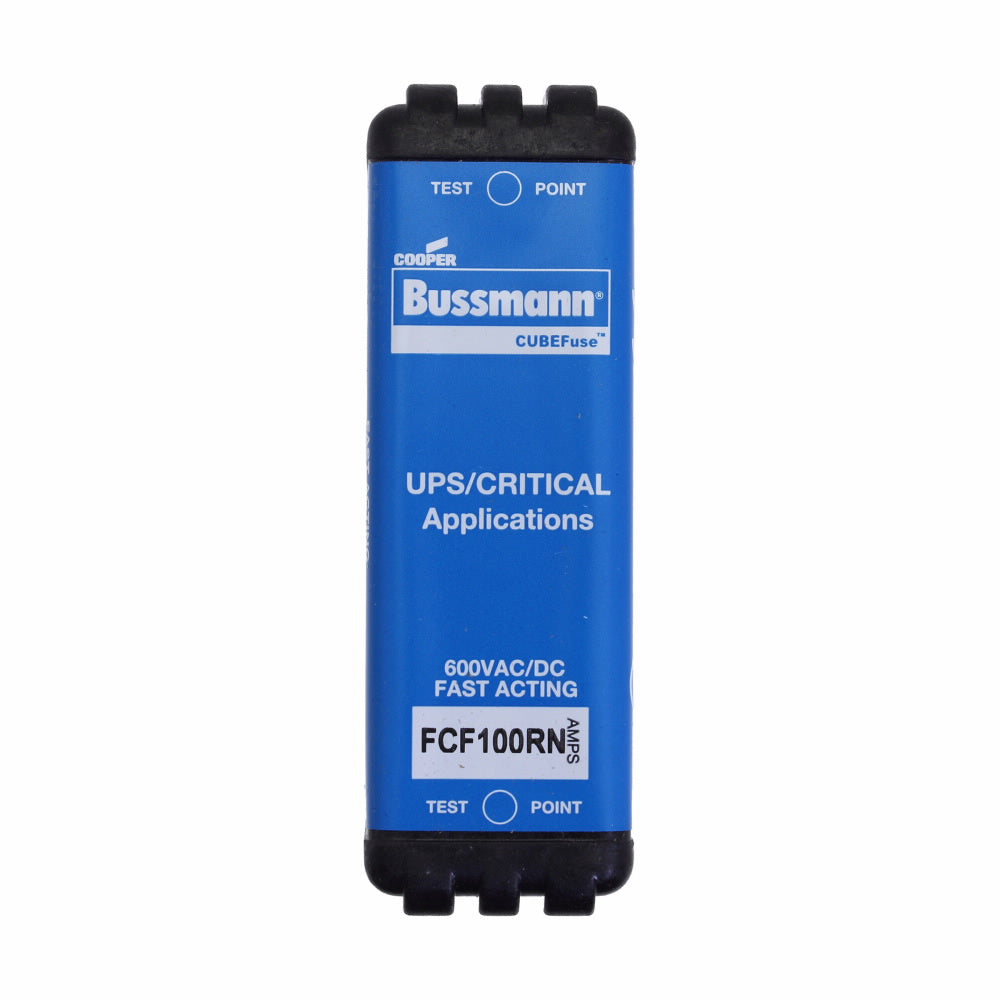

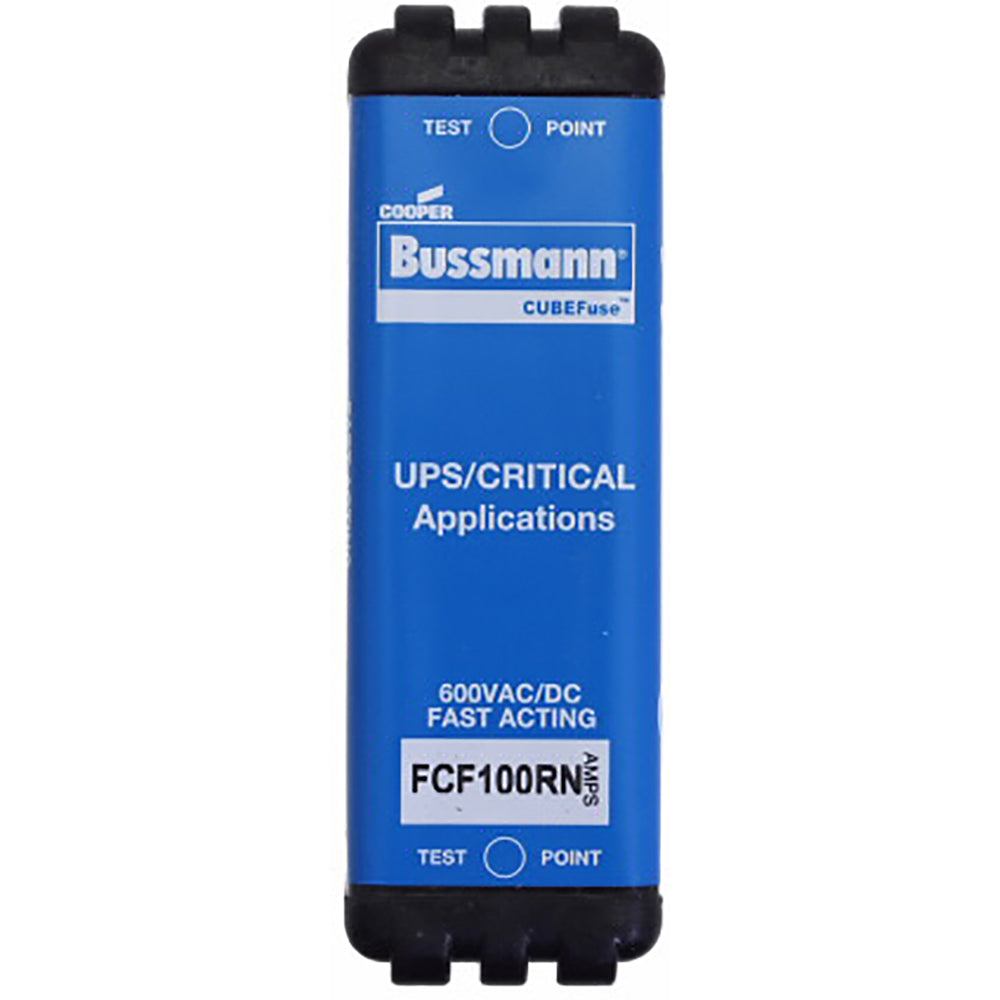

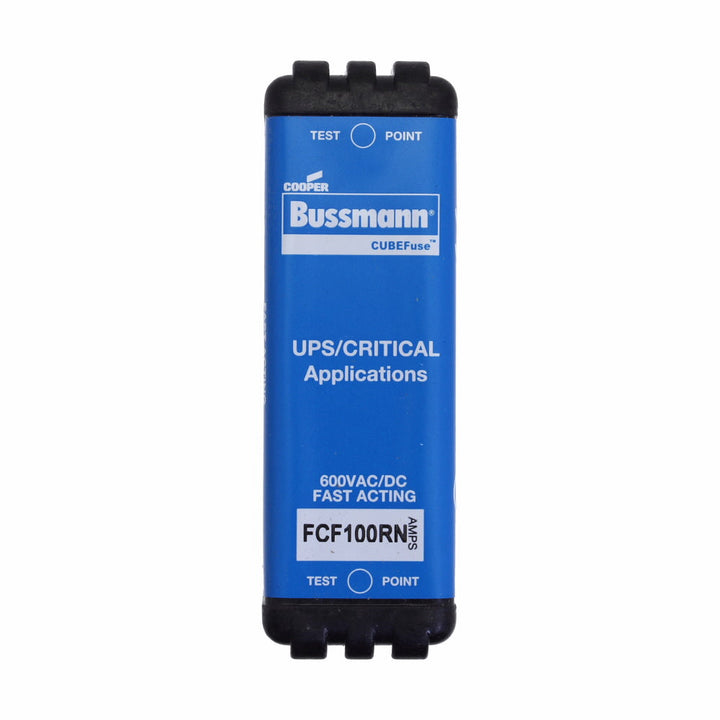

Bussmann FCF100RN - Class CF Fuse 100A@600V (200kA AIC)

Bussmann FCF100RN is a Class CF low-voltage fuse designed for circuit protection in industrial applications. It features a 600V AC/DC voltage rating and 100A current capacity with a fast-acting response for overcurrent protection. The compact finger-safe design measures 3.01" x 2.125" x 1" (76.5mm x 54mm x 25.4mm) and weighs 1.284 lb, constructed to UL/CSA standards. With 200kA interrupting capacity at 600V, this CUBEFuse series component meets rigorous safety requirements for power distribution systems, motor circuits, and transformer protection.

Key Features & Specifications

• Type: Fast-acting Class CF cartridge fuse with finger-safe terminals
• Voltage Rating: 600V AC/DC
• Current Rating: 100A
• Dimensions: 3.01" L x 2.125" H x 1" W (76.5mm x 54mm x 25.4mm)
• Weight: 1.284 lb (582g)
• Standards: UL/CSA listed
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: 200kA@600V
• Connection: Finger-safe blade terminals
• Family: CUBEFuse series

Product Identification

• UPC: 05171236257
• GTIN: 00051712362573
