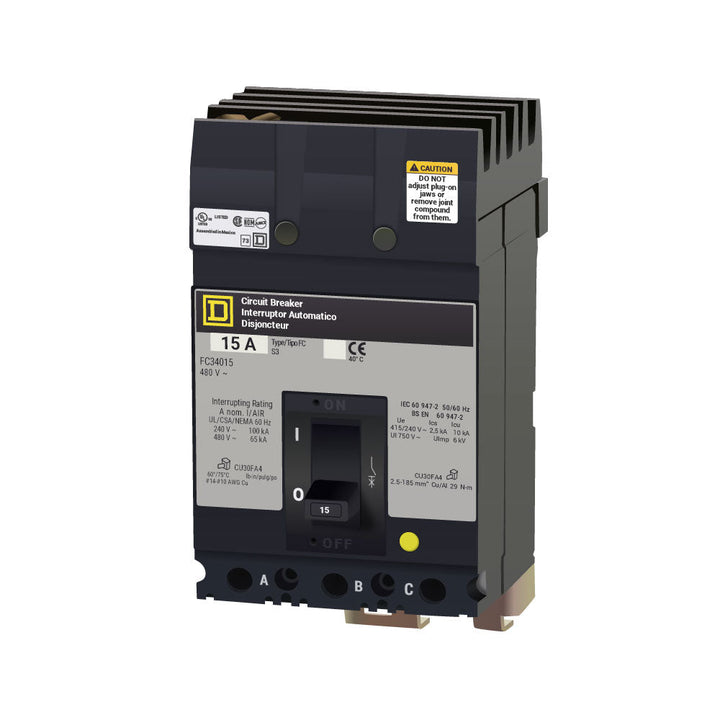

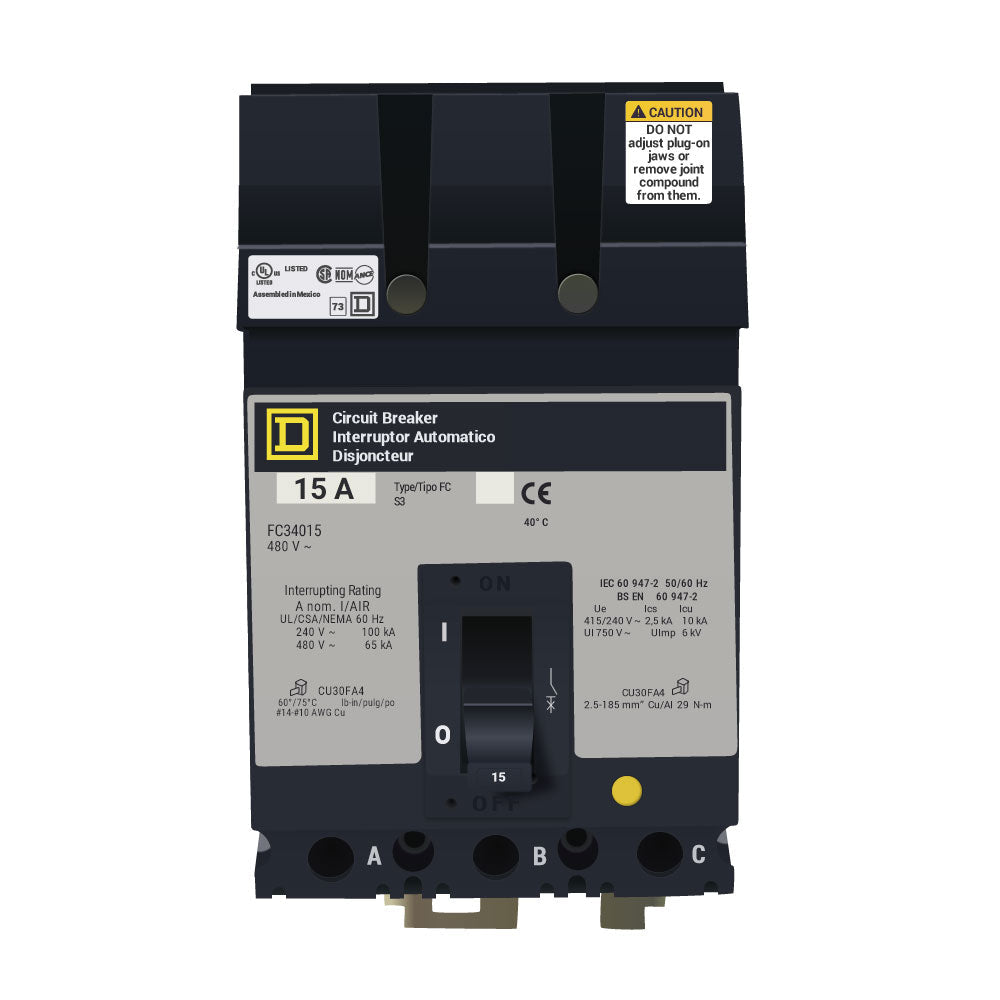

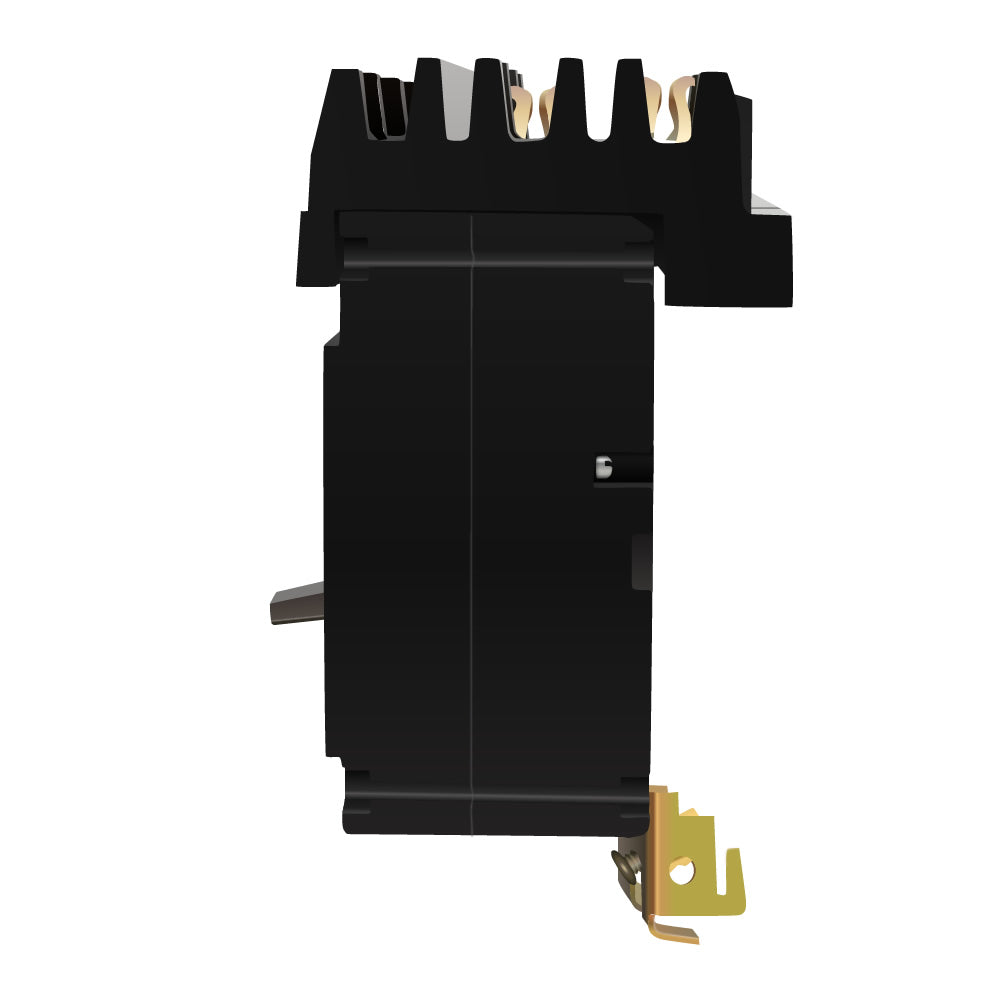

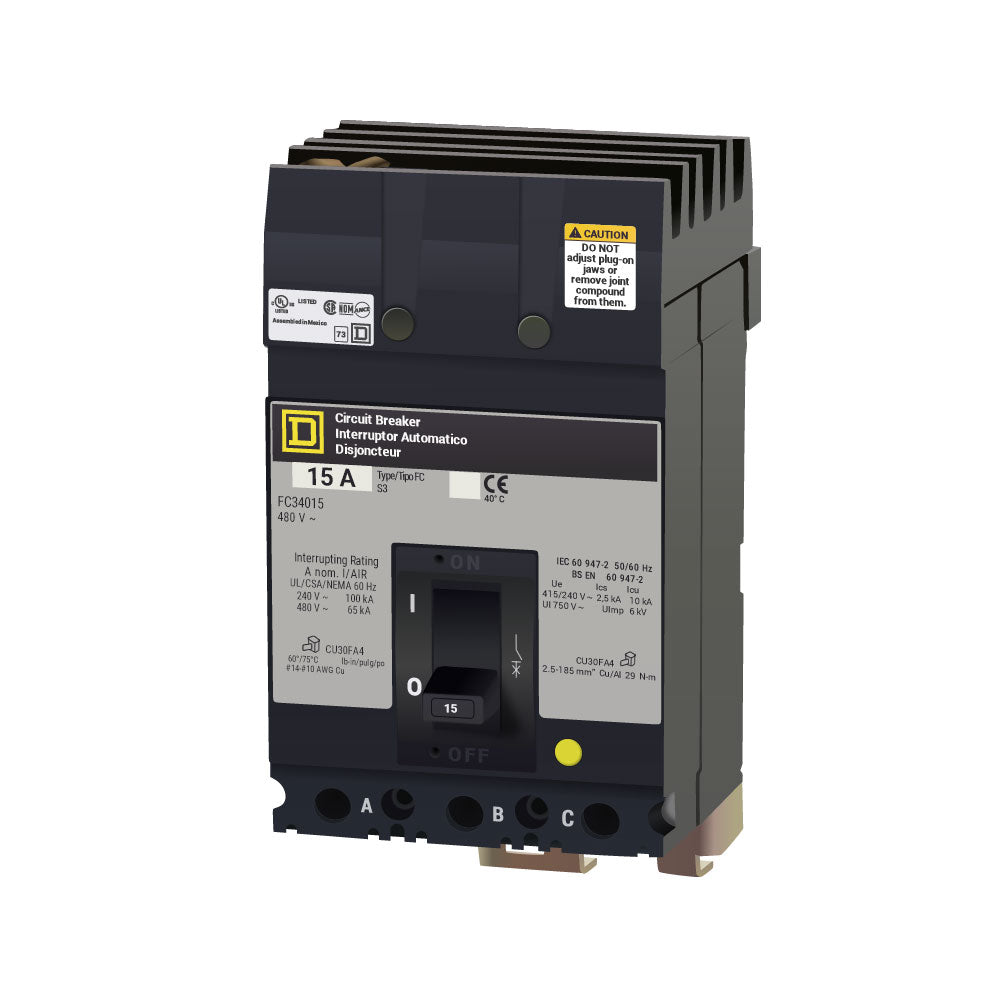

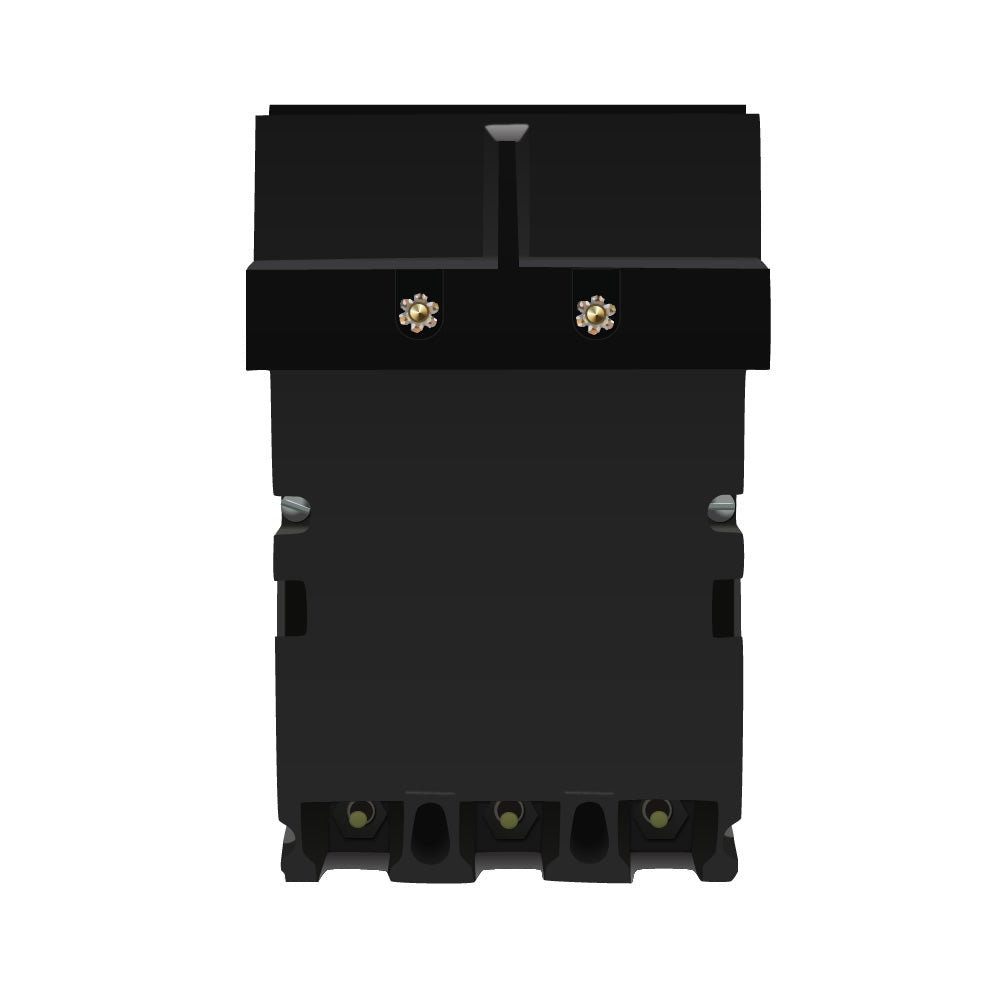

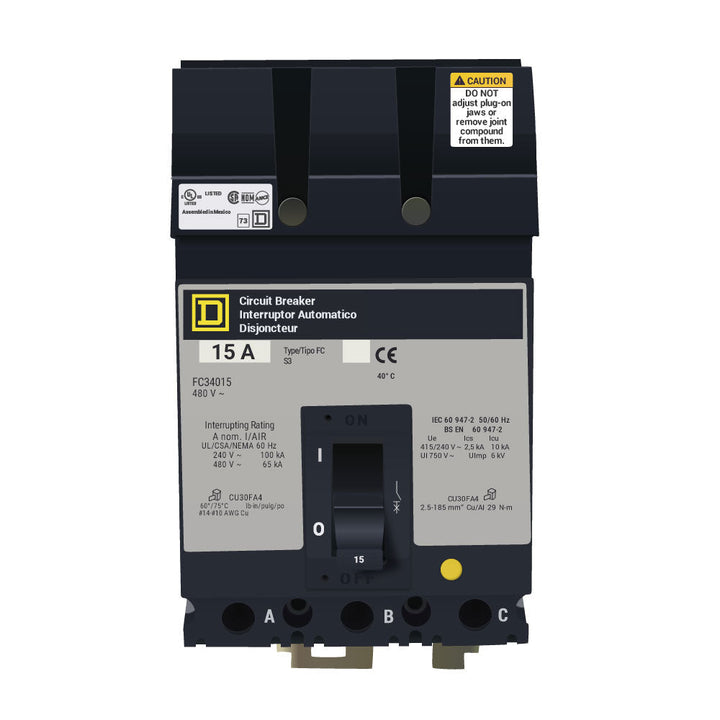

Square D FC34015 - 3-Pole Molded Case Breaker 15A 480V 65kA
Square D FC34015 - 3-Pole Molded Case Breaker 15A 480V 65kA
Square D FC34015 - 3-Pole Molded Case Breaker 15A 480V 65kA
Square D FC34015 - 3-Pole Molded Case Breaker 15A 480V 65kA
Square D FC34015 - 3-Pole Molded Case Breaker 15A 480V 65kA
Square D FC34015 - 3-Pole Molded Case Breaker 15A 480V 65kA
Square D FC34015 - 3-Pole Molded Case Breaker 15A 480V 65kA
Square D FC34015 - 3-Pole Molded Case Breaker 15A 480V 65kA

Square D FC34015 - 3-Pole Molded Case Breaker 15A 480V 65kA

Square D
Price
Save $-1,726.96
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Square D FC34015 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 15A current rating and a 480V AC voltage rating, housed within a compact F-frame thermal-magnetic unit. The breaker is constructed for I-Line style plug-in connection and complies with industry standards for safety and performance. Its 65kA interrupting rating at 480V and long-time plus instantaneous (LI) trip functions make it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 480V AC
  • Current Rating: 15A
  • Frame Size: F Frame
  • Poles: 3
  • Phase: 3
  • AIC Rating: 65kA @ 480V
  • Connection: I-Line Style Plug-In
  • Functions: LI - Long-Time and Instantaneous Trip
  • Protection: Thermal Magnetic
  • Family: I-Line
  • Type Designation: FC
  • Item Subcategory: Molded Case
  • Weight: 6 lb


Product Identification
  • UPC: 785901031550
  • GTIN: 00785901031550
