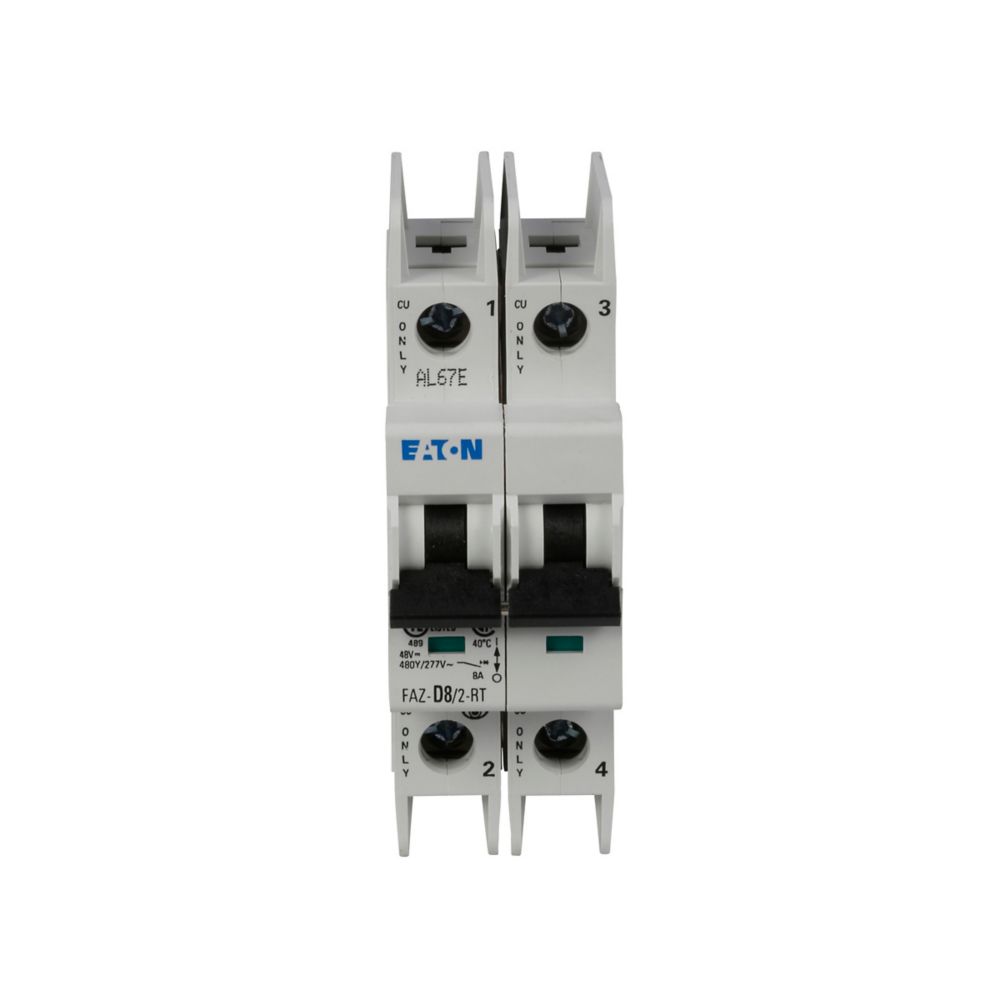

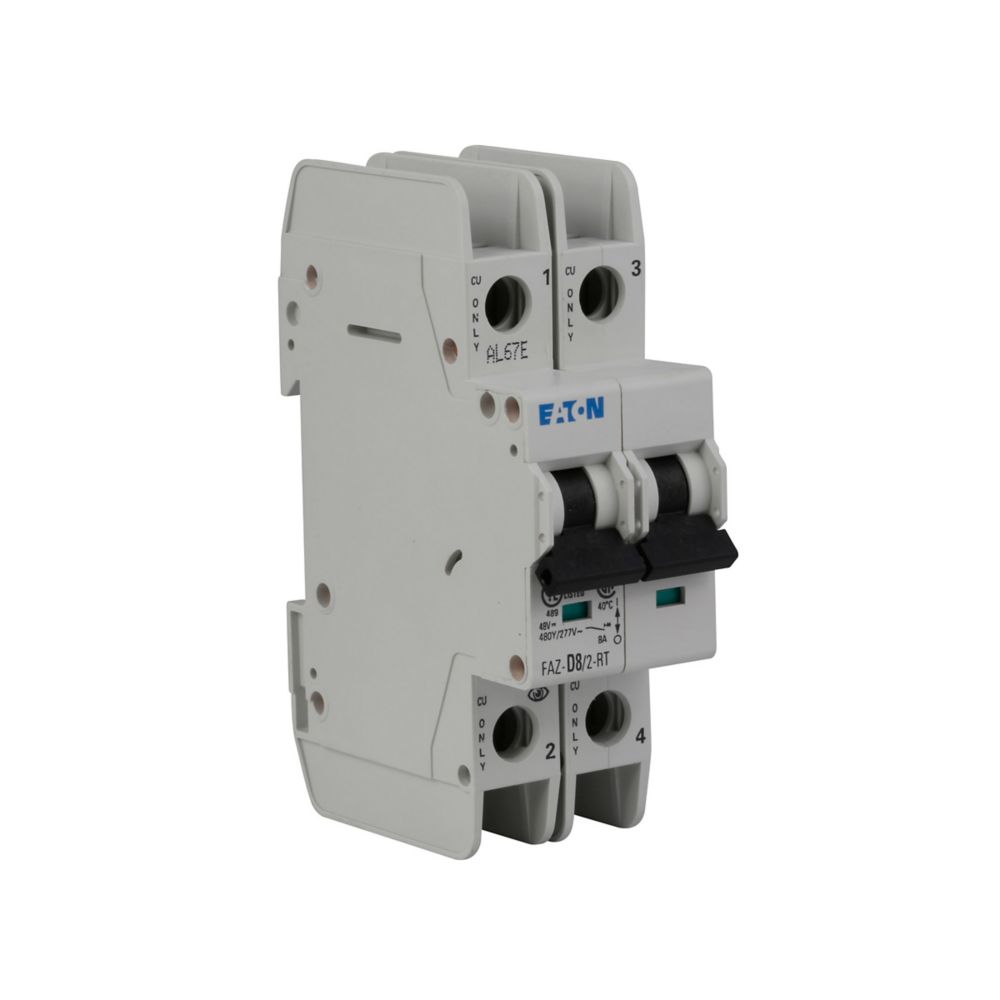

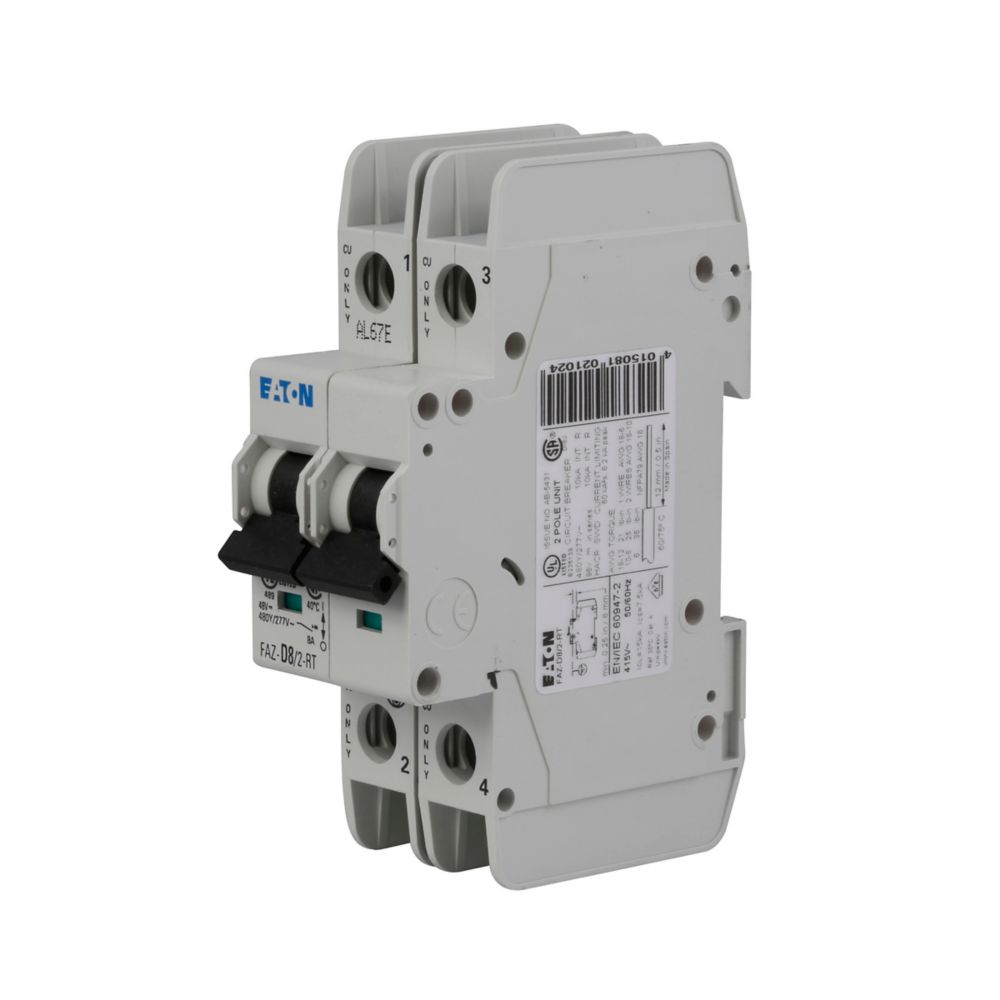

Eaton FAZ-D40/2 - 2-Pole 40A Circuit Breaker (10kA AIC)
Eaton FAZ-D40/2 - 2-Pole 40A Circuit Breaker (10kA AIC)
Eaton FAZ-D40/2 - 2-Pole 40A Circuit Breaker (10kA AIC)
Eaton FAZ-D40/2 - 2-Pole 40A Circuit Breaker (10kA AIC)
Eaton FAZ-D40/2 - 2-Pole 40A Circuit Breaker (10kA AIC)
Eaton FAZ-D40/2 - 2-Pole 40A Circuit Breaker (10kA AIC)

Eaton FAZ-D40/2 - 2-Pole 40A Circuit Breaker (10kA AIC)

Eaton
Price
Save $176.11
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton FAZ-D40/2 is a molded case circuit breaker designed for supplementary protection in electrical circuits. It provides a 40A current rating and a 480V voltage rating for single-phase systems, featuring a compact 1.5-inch cube design with a feed-thru connection and lug terminals. The breaker is constructed for thermal-magnetic protection with long-time and instantaneous trip functions, achieving a 10kA interrupting rating at 277/480V. It complies with key industry standards including UL 1077, CSA C22.2 No. 235, and IEC 60947-2. This device is typically applied in industrial control panels, machinery, and other equipment requiring reliable overcurrent and short-circuit protection.

Key Features & Specifications
  • Type: FAZ Series Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 40A
  • Dimensions: 1.5 in x 1.5 in x 1.5 in (L/D x H x W)
  • Standards: UL 1077, CSA C22.2 No. 235, IEC 60947-2
  • Applications: Supplementary protection in industrial control panels and equipment
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Phase: 1
  • AIC Rating: 10kA @ 277/480V
  • Connection: Feed-Thru
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Terminal Connection: Lug
  • Certification: CSA C22.2 No. 235, IEC 60947-2, UL 1077
  • MCM Size: Min. 18 AWG, Max. 4 AWG
  • Weight: 0.5 lb
  • Country of Origin: Romania


Product Identification
  • UPC: 01508278787
  • GTIN: 04015082787875
