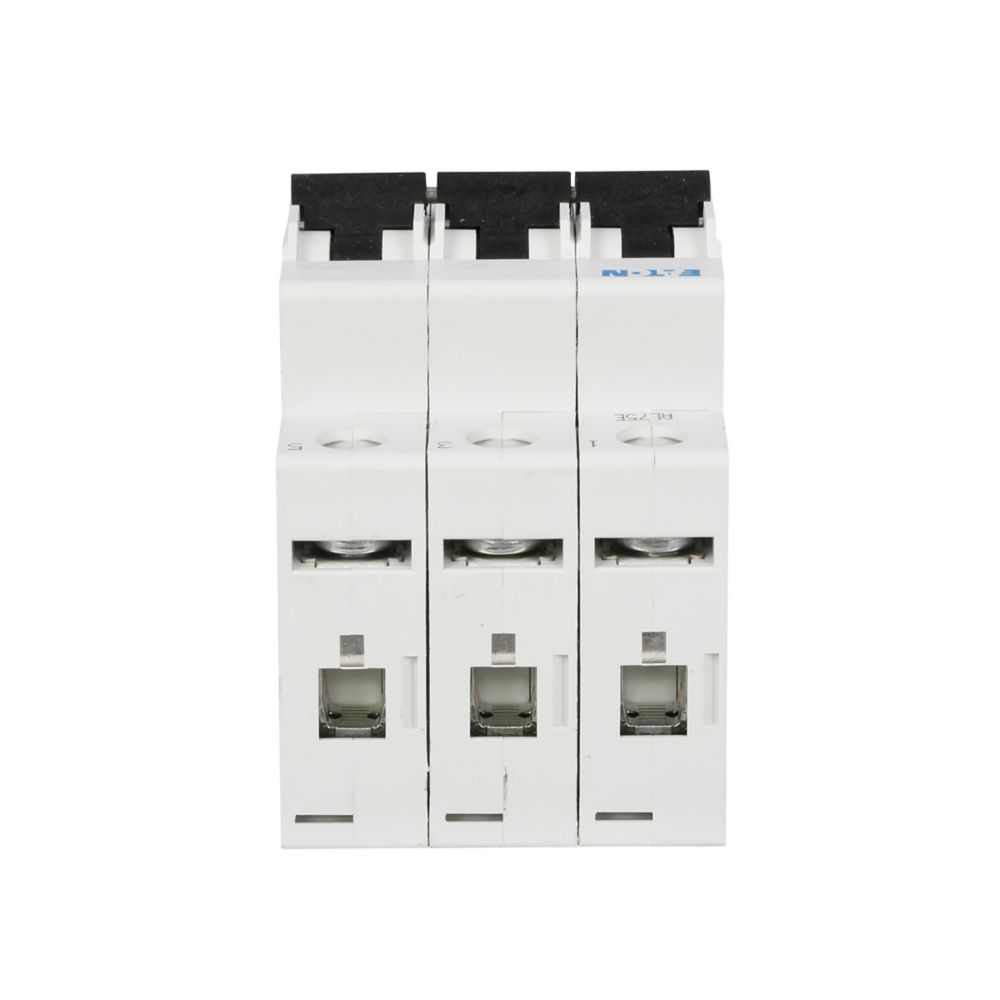

Eaton FAZ-C63/3 - 3-Pole 63A Circuit Breaker (10kA AIC)
Eaton FAZ-C63/3 - 3-Pole 63A Circuit Breaker (10kA AIC)
Eaton FAZ-C63/3 - 3-Pole 63A Circuit Breaker (10kA AIC)
Eaton FAZ-C63/3 - 3-Pole 63A Circuit Breaker (10kA AIC)
Eaton FAZ-C63/3 - 3-Pole 63A Circuit Breaker (10kA AIC)
Eaton FAZ-C63/3 - 3-Pole 63A Circuit Breaker (10kA AIC)
Eaton FAZ-C63/3 - 3-Pole 63A Circuit Breaker (10kA AIC)
Eaton FAZ-C63/3 - 3-Pole 63A Circuit Breaker (10kA AIC)
Eaton FAZ-C63/3 - 3-Pole 63A Circuit Breaker (10kA AIC)
Eaton FAZ-C63/3 - 3-Pole 63A Circuit Breaker (10kA AIC)

Eaton FAZ-C63/3 - 3-Pole 63A Circuit Breaker (10kA AIC)

Eaton
Price
Save $455.30
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton FAZ-C63/3 is a three-pole molded case circuit breaker designed for branch circuit and equipment protection in industrial and commercial electrical systems. It provides a 63A current rating and 480V voltage rating with a 10kA interrupting capacity, utilizing a thermal-magnetic trip mechanism for both long-time overload and instantaneous short-circuit protection. The compact unit measures 2.07 in x 2.07 in x 2 in, features a feed-thru connection with lug terminals, and accommodates wire sizes from 4 to 18 AWG. It is engineered for compliance with UL 1077, CSA C22.2 No. 235, and IEC 60947-2 standards, ensuring reliable operation in three-phase power distribution panels, motor control centers, and other critical applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 63A
  • Dimensions: 2.07 in (L) x 2.07 in (H) x 2 in (W)
  • Standards: UL 1077, CSA C22.2 No. 235, IEC 60947-2
  • Applications: Industrial & Commercial Power Distribution, Motor Protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Poles: 3
  • Connection: Feed-Thru
  • Terminal Connection: Lug
  • Phase: 3
  • AIC Rating: 10kA @ 277/480V
  • Protection: Thermal Magnetic
  • Functions: LI (Long-time & Instantaneous)
  • MCM Size: 4 AWG (Max) to 18 AWG (Min)
  • Weight: 0.8 lb
  • Certification: CSA, UL, IEC
  • Country of Origin: Romania


Product Identification
  • UPC: 015082788791
