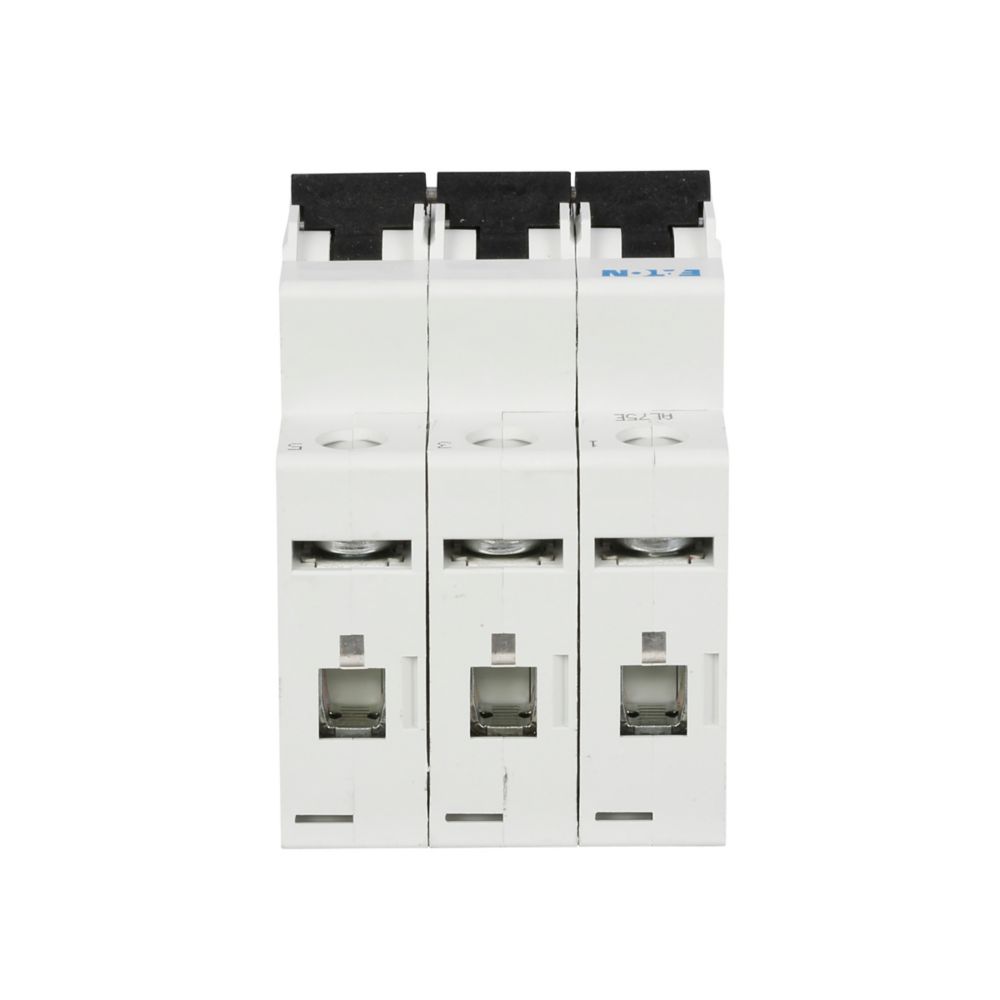

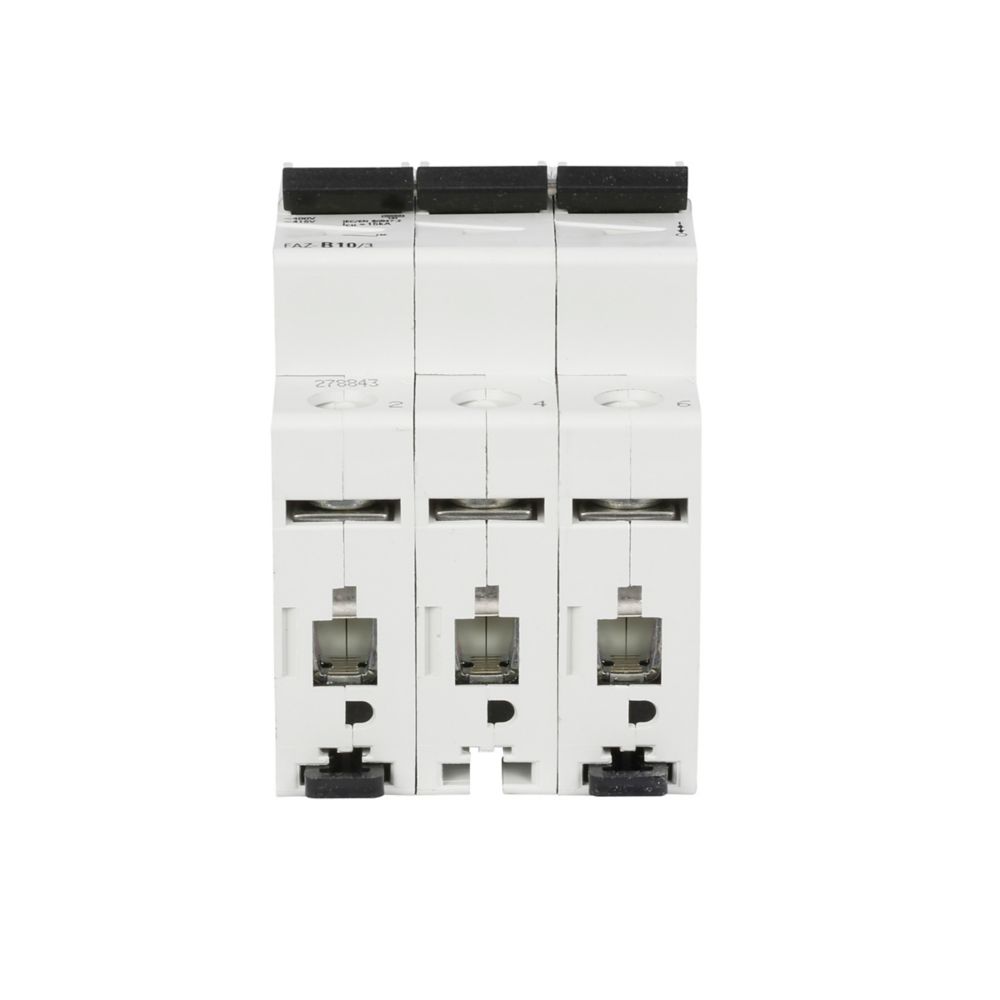

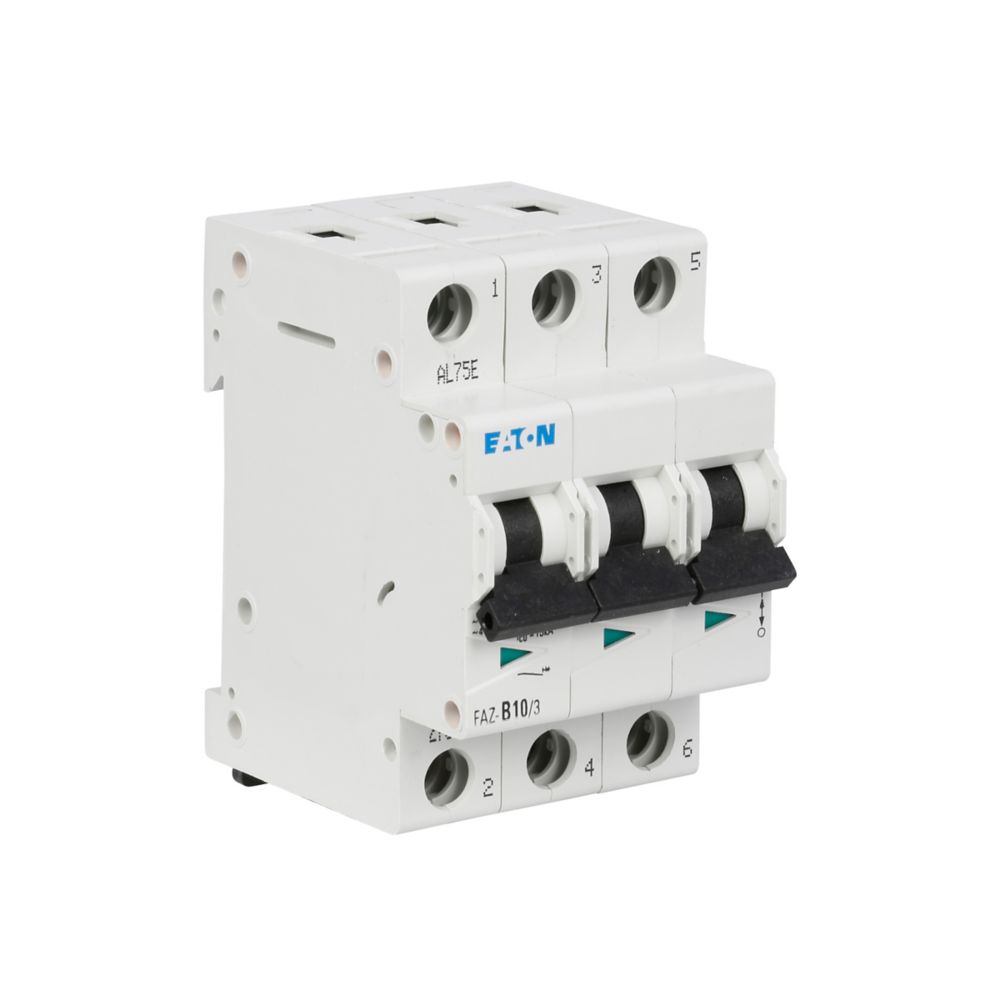

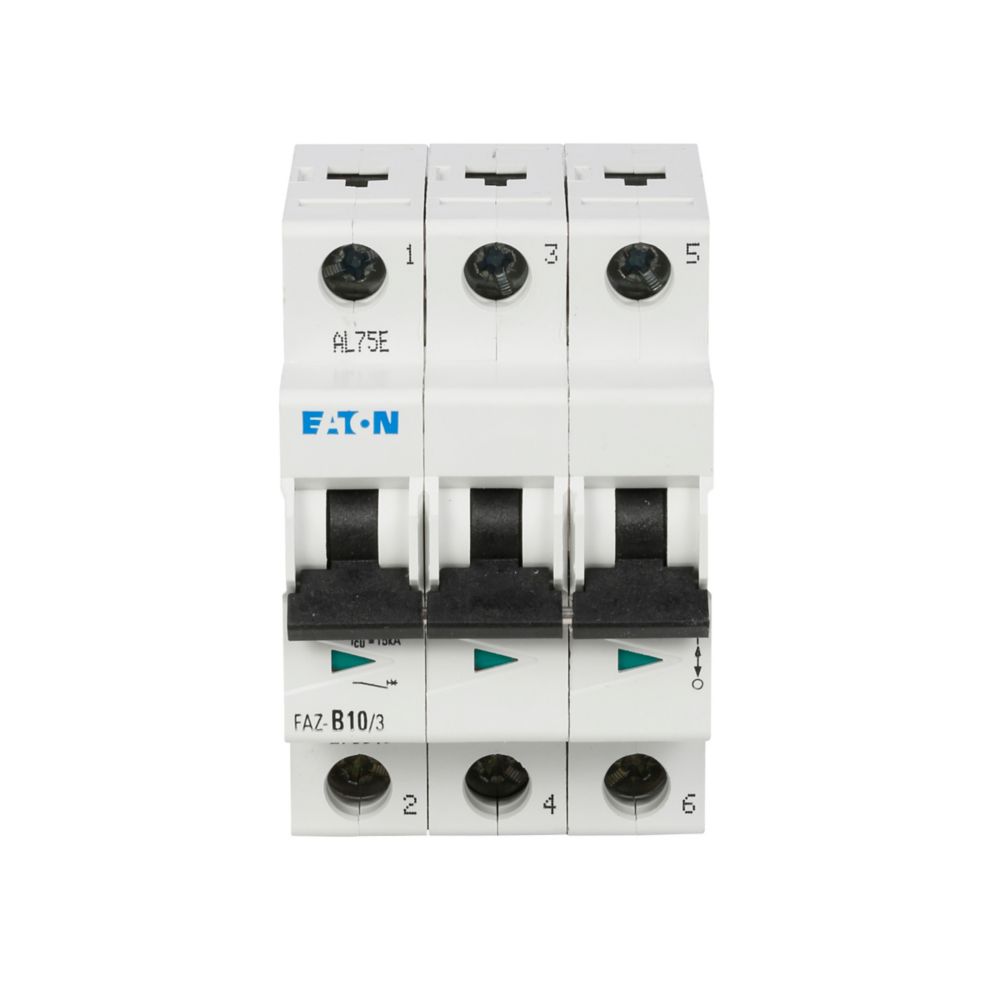

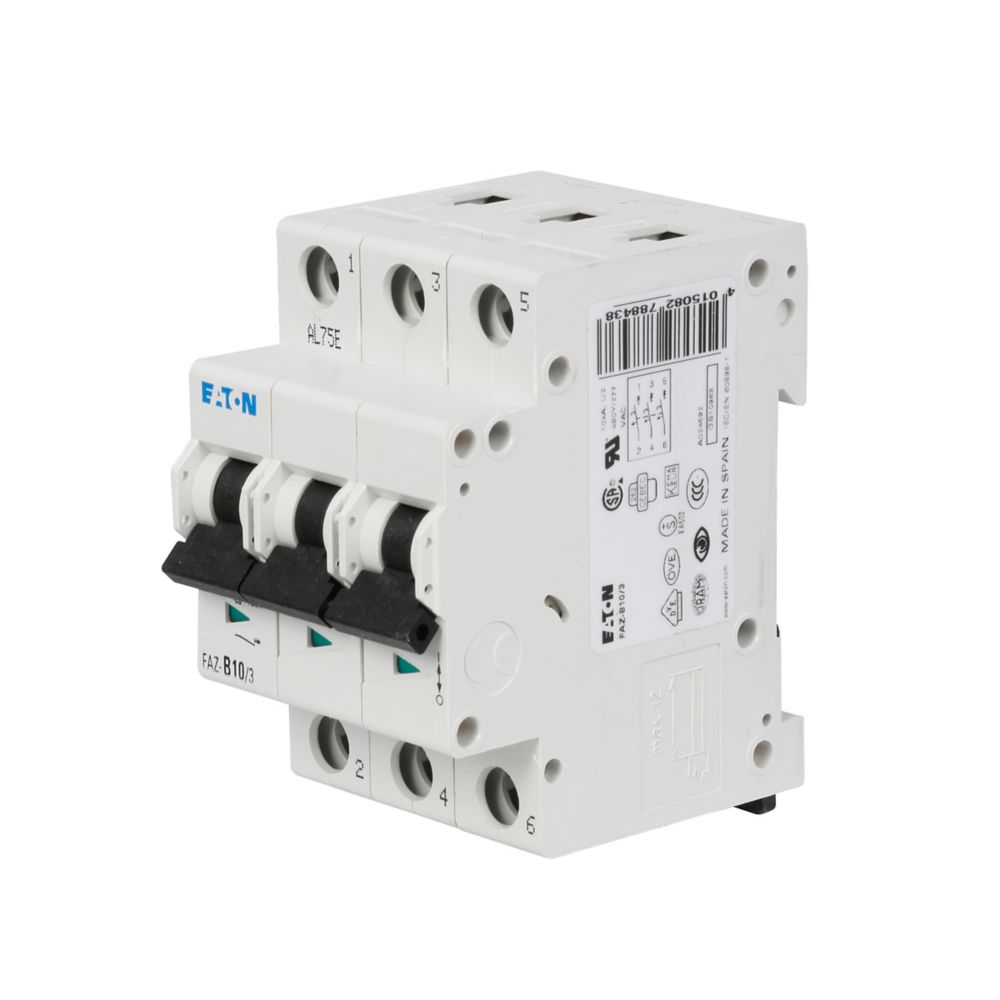

Eaton FAZ-B10/3 - 3-Pole Molded Case Breaker, 10A, 480V
Eaton FAZ-B10/3 - 3-Pole Molded Case Breaker, 10A, 480V
Eaton FAZ-B10/3 - 3-Pole Molded Case Breaker, 10A, 480V
Eaton FAZ-B10/3 - 3-Pole Molded Case Breaker, 10A, 480V
Eaton FAZ-B10/3 - 3-Pole Molded Case Breaker, 10A, 480V
Eaton FAZ-B10/3 - 3-Pole Molded Case Breaker, 10A, 480V
Eaton FAZ-B10/3 - 3-Pole Molded Case Breaker, 10A, 480V
Eaton FAZ-B10/3 - 3-Pole Molded Case Breaker, 10A, 480V
Eaton FAZ-B10/3 - 3-Pole Molded Case Breaker, 10A, 480V
Eaton FAZ-B10/3 - 3-Pole Molded Case Breaker, 10A, 480V

Eaton FAZ-B10/3 - 3-Pole Molded Case Breaker, 10A, 480V

Eaton
Price
Save $455.30
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton FAZ-B10/3 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 10A thermal-magnetic trip unit with Long-time and Instantaneous (LI) protection functions, is rated for 480V AC systems, and offers an interrupting capacity of 10kA at 277/480V. The compact, feed-thru style unit measures 3.5 in H x 3 in D x 2.5 in W and weighs 0.6 lb, constructed with durable materials for robust performance in demanding environments. This breaker is engineered to meet relevant industry standards for safety and performance in commercial and industrial applications. Typical uses include protecting feeders, branch circuits, and equipment within motor control centers, panelboards, and switchboards.

Key Features & Specifications
  • Type: Three-Pole, Molded Case, Thermal-Magnetic Circuit Breaker
  • Voltage Rating: 480V AC
  • Current Rating: 10A
  • Dimensions: 3.5 in H x 3 in D x 2.5 in W (88.9 mm x 76.2 mm x 63.5 mm)
  • Standards: Designed to meet applicable UL and IEC standards
  • Applications: Industrial panelboards, motor control centers, switchgear, and feeder/branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 10A
  • AIC Rating: 10kA @ 277/480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal-Magnetic
  • Functions: Long-time and Instantaneous (LI)
  • Frame Size: FAZ
  • Trip Type: Thermal-Magnetic
  • Weight: 0.6 lb (0.27 kg)


Product Identification
  • UPC: 015082788432
  • GTIN: 04015080000000
