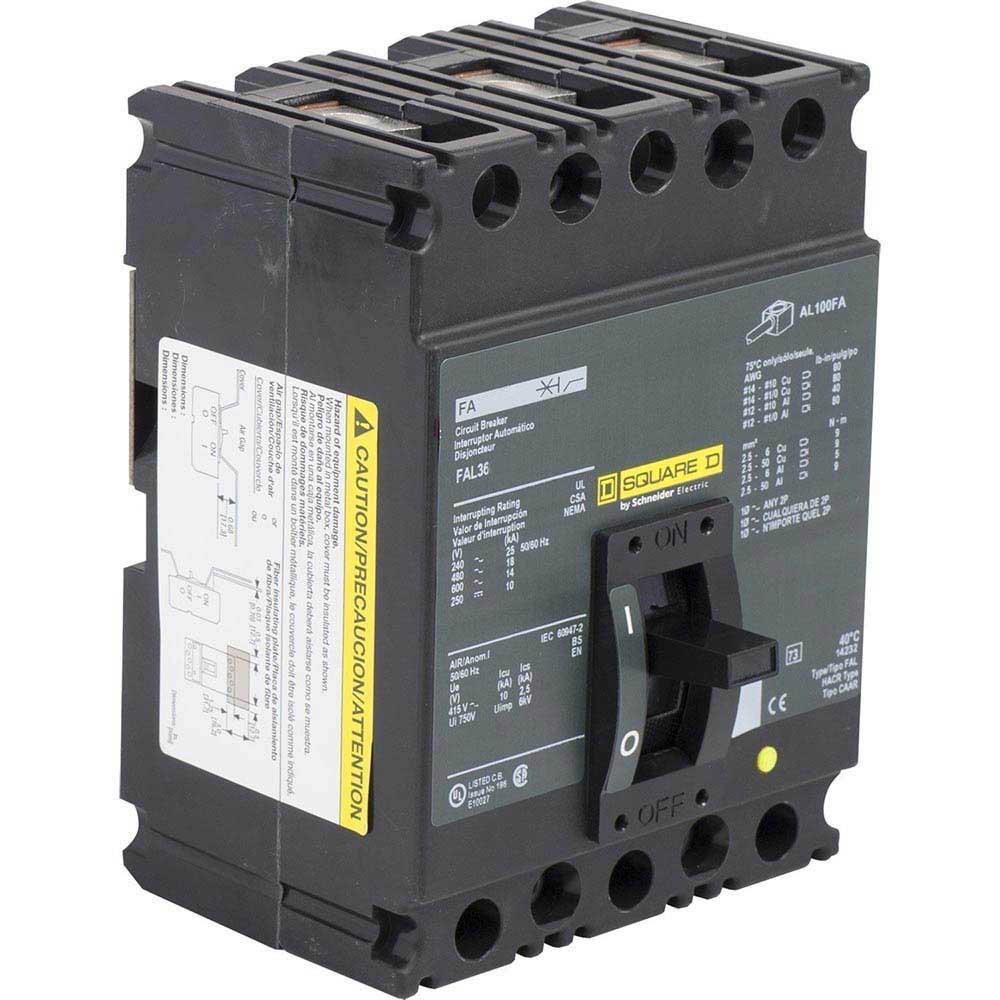

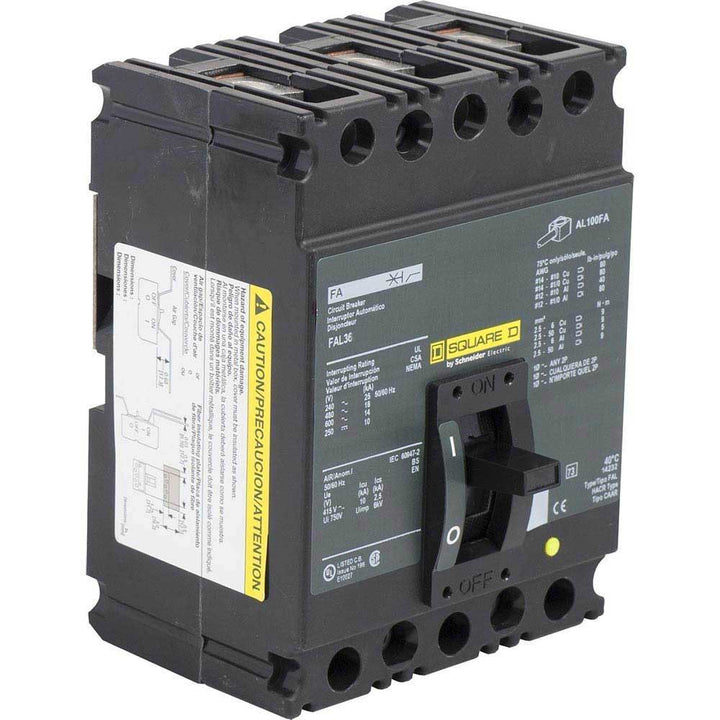

Square D FAL36090 - Molded Case Circuit Breaker, 90A 600V 3P
Square D FAL36090 - Molded Case Circuit Breaker, 90A 600V 3P

Square D FAL36090 - Molded Case Circuit Breaker, 90A 600V 3P

Square D
Price
Save $1,026.96
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FAL36090 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 90A current rating and a 600V AC voltage rating, housed within a compact F-frame construction measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 0.481 lb. The breaker is UL LISTED and utilizes a thermal magnetic trip unit with long-time and instantaneous (LI) functions for coordinated protection, offering an interrupting capacity of 18kA at 480V AC. Its three-pole, feed-thru configuration is engineered for integration into panelboards and switchboards serving commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL LISTED
  • Applications: Industrial and Commercial Power Distribution, Panelboards, Switchboards
  • Phase: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Certification: UL LISTED
  • Family: FAL Series
  • Weight: 0.481 lb


Product Identification
  • UPC: 785901423768
  • GTIN: 00785901423768
