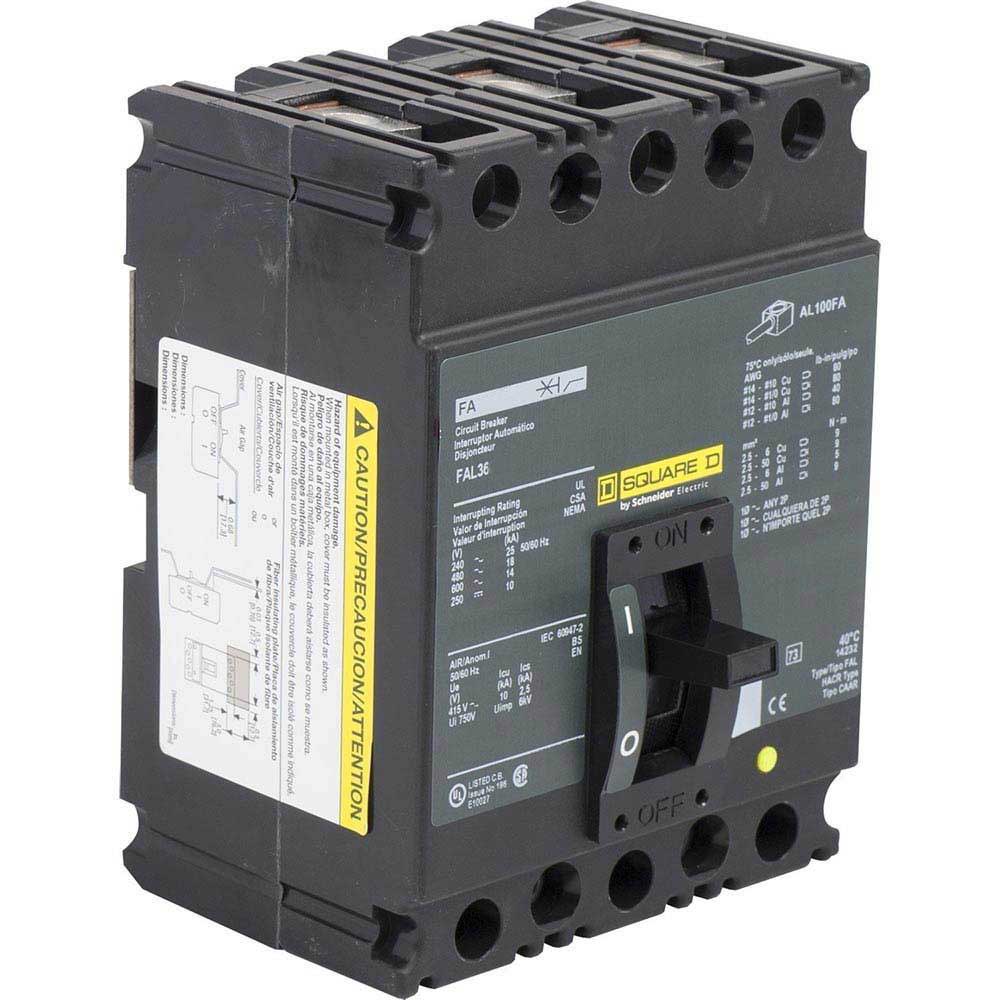

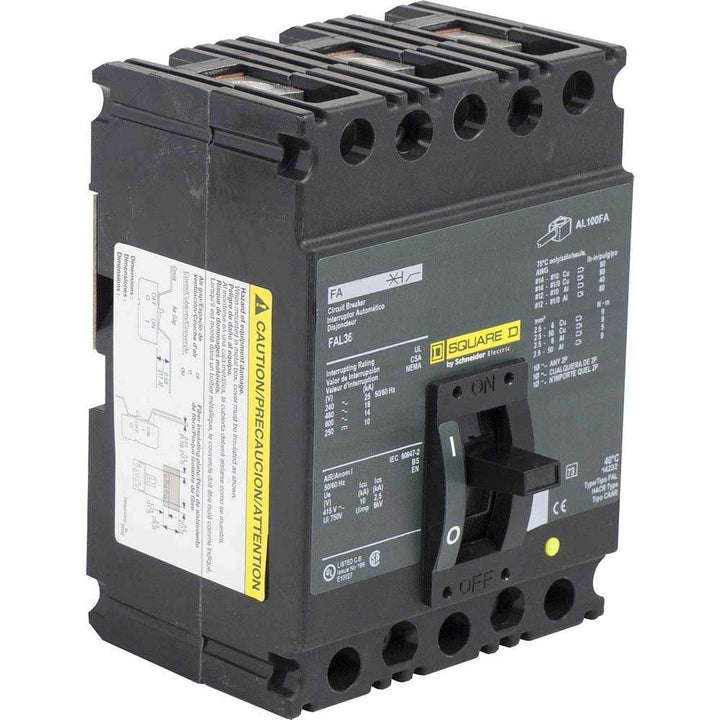

Square D FAL36070 - Molded Case Circuit Breaker 70A 600V 3P
Square D FAL36070 - Molded Case Circuit Breaker 70A 600V 3P

Square D FAL36070 - Molded Case Circuit Breaker 70A 600V 3P

Square D
Price
Save $927.97
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FAL36070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 70A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 5 lb. This three-pole, thermal-magnetic breaker with feed-thru connection offers long-time and instantaneous (LI) protection functions and is rated for 18kA interrupting capacity at 480V, ensuring compliance with rigorous industrial safety standards for three-phase applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, FAL Series
  • Voltage Rating: 600V AC
  • Current Rating: 70A
  • Dimensions: 162.6 mm H x 114.3 mm W x 104.9 mm D (6.4 in x 4.5 in x 4.13 in)
  • Standards: Industrial Safety Standards
  • Applications: Industrial Power Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Feed-Thru
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: F Frame
  • AIC rating: 18kA @ 480V
  • Weight: 5 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 078590142374
  • GTIN: 00785901423744
