Square D FAL36040 - Molded Case Circuit Breaker, 40A 600V 3P
Square D FAL36040 - Molded Case Circuit Breaker, 40A 600V 3P

Square D FAL36040 - Molded Case Circuit Breaker, 40A 600V 3P

Square D
Price
Save $848.86
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

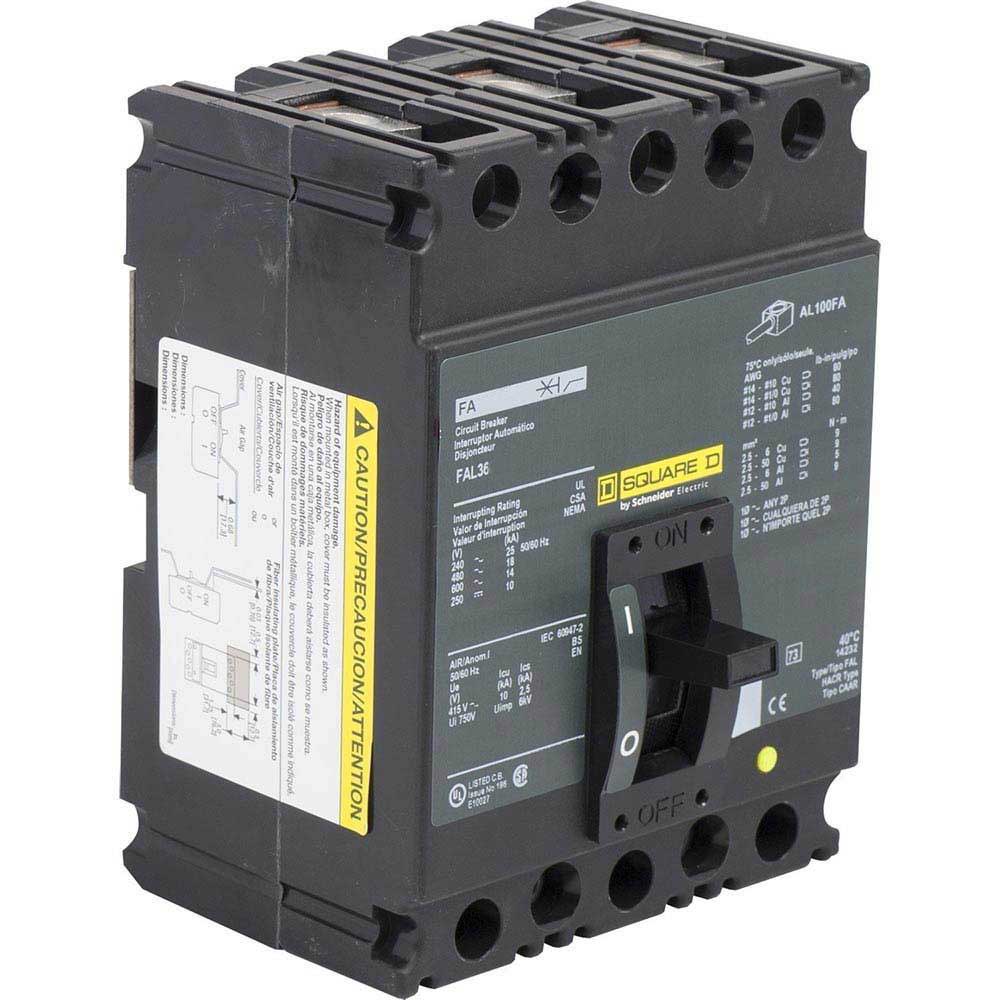

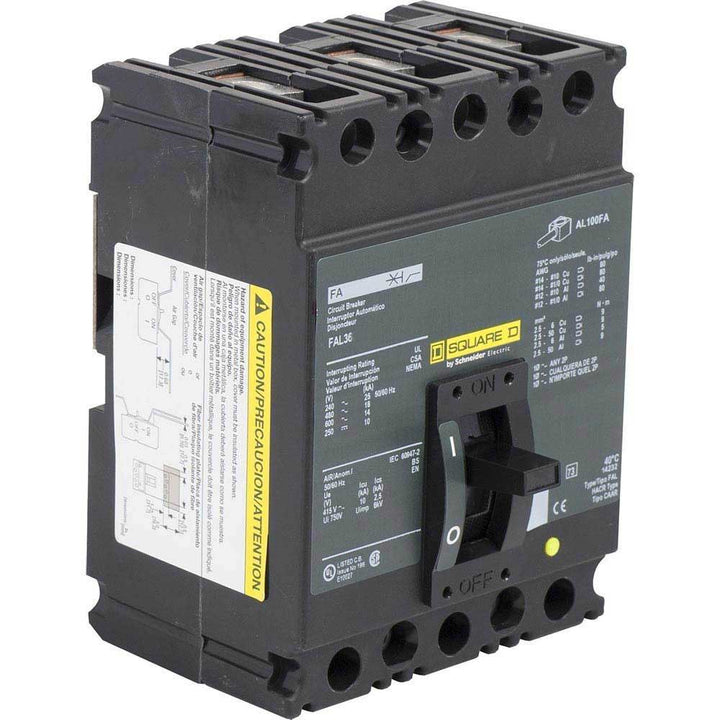

The Square D FAL36040 is a three-pole molded case circuit breaker providing reliable thermal-magnetic protection for industrial power distribution systems. It features a 40A current rating and a 600V AC voltage rating, housed within a compact F-frame design measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 5 lb. This unit is engineered for compliance with industry standards and utilizes a feed-thru connection to safeguard three-phase circuits, such as those powering motor control centers and industrial machinery, with an interrupting capacity of 18kA at 480V AC.

Key Features & Specifications
  • Type: FAL Series, Molded Case, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Dimensions: 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (H x W x D)
  • Weight: 5 lb
  • Frame Size: F Frame
  • Poles: 3
  • Phase: 3
  • Connection: Feed-Thru
  • AIC Rating: 18kA @ 480V AC
  • Wire Size: 12-1/0 AWG (Aluminum), 14-1/0 AWG (Copper)
  • Country of Origin: Mexico


Product Identification
  • UPC: 078590142366
  • GTIN: 00785901423669
