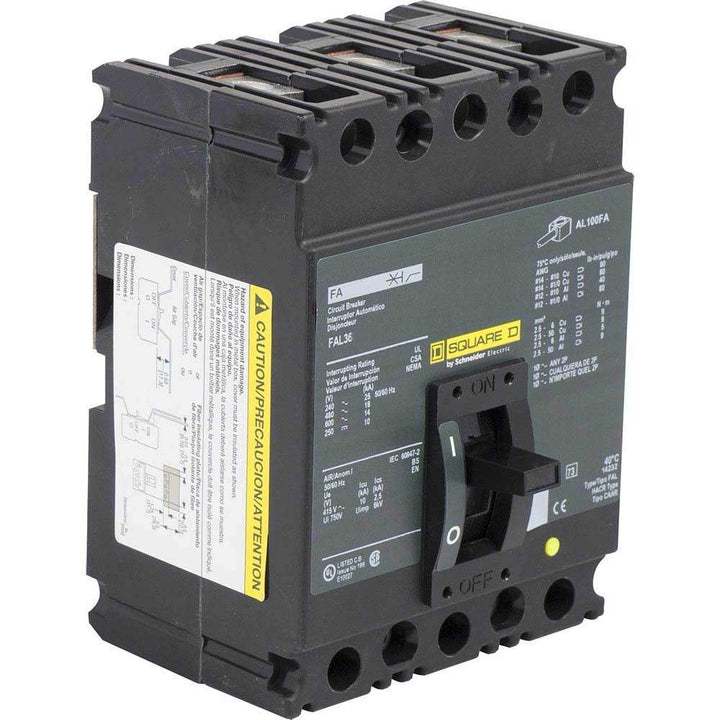

Square D FAL36025 - Molded Case Circuit Breaker, 25A 600V 3P
Square D FAL36025 - Molded Case Circuit Breaker, 25A 600V 3P

Square D FAL36025 - Molded Case Circuit Breaker, 25A 600V 3P

Square D
Price
Save $1,174.94
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

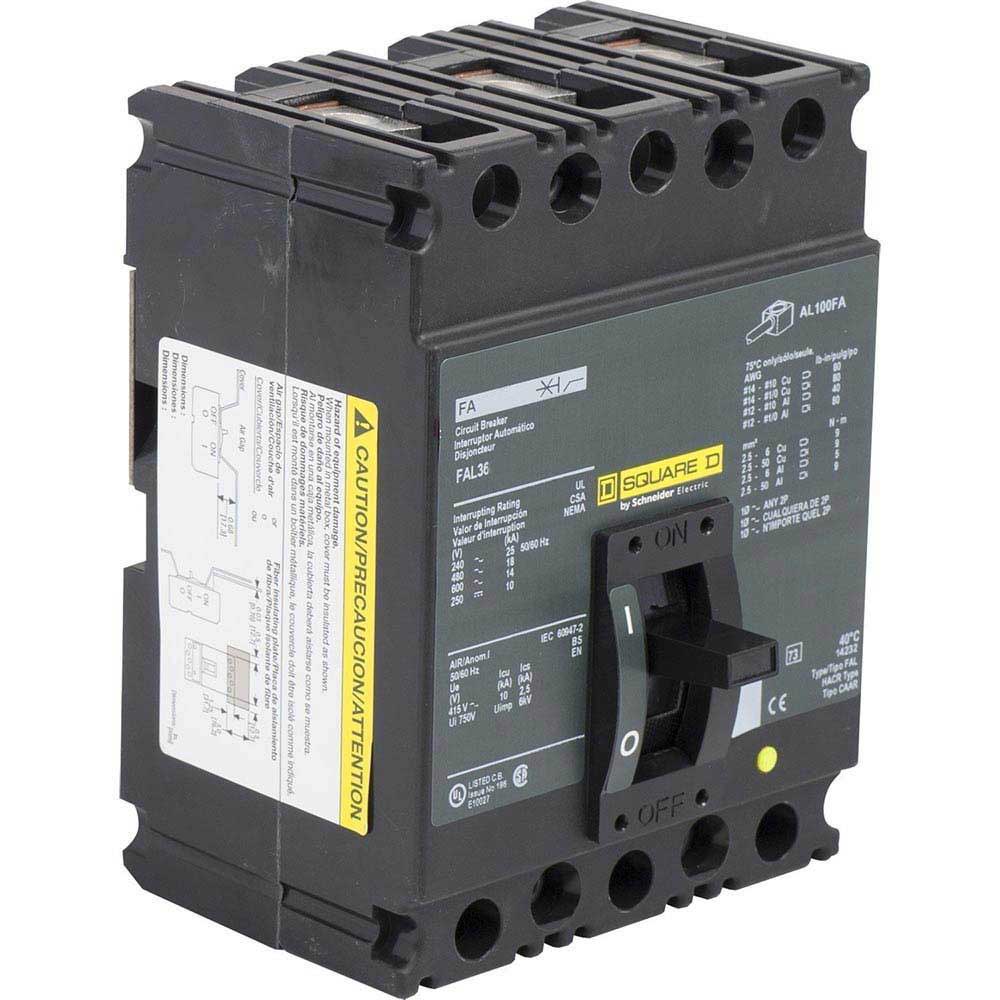

Square D FAL36025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 25A current rating and a 600V AC voltage rating, housed within a compact F-frame design measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4.44 lb. This thermal magnetic breaker with LI (Long-time and Instantaneous) trip functions is UL and CSA certified, offering an interrupting capacity of 18kA at 480V AC. Its three-pole, feed-thru configuration is engineered for integration into panelboards and switchboards, safeguarding motors and branch circuits in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with LI (Long-Time & Instantaneous) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 25A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL, CSA Certified
  • Applications: Industrial power distribution, motor protection, panelboard and switchboard integration
  • Phase: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Weight: 4.44 lb
  • Family: FAL Series


Product Identification
  • UPC: 785901529736
  • GTIN: 00785901529736
