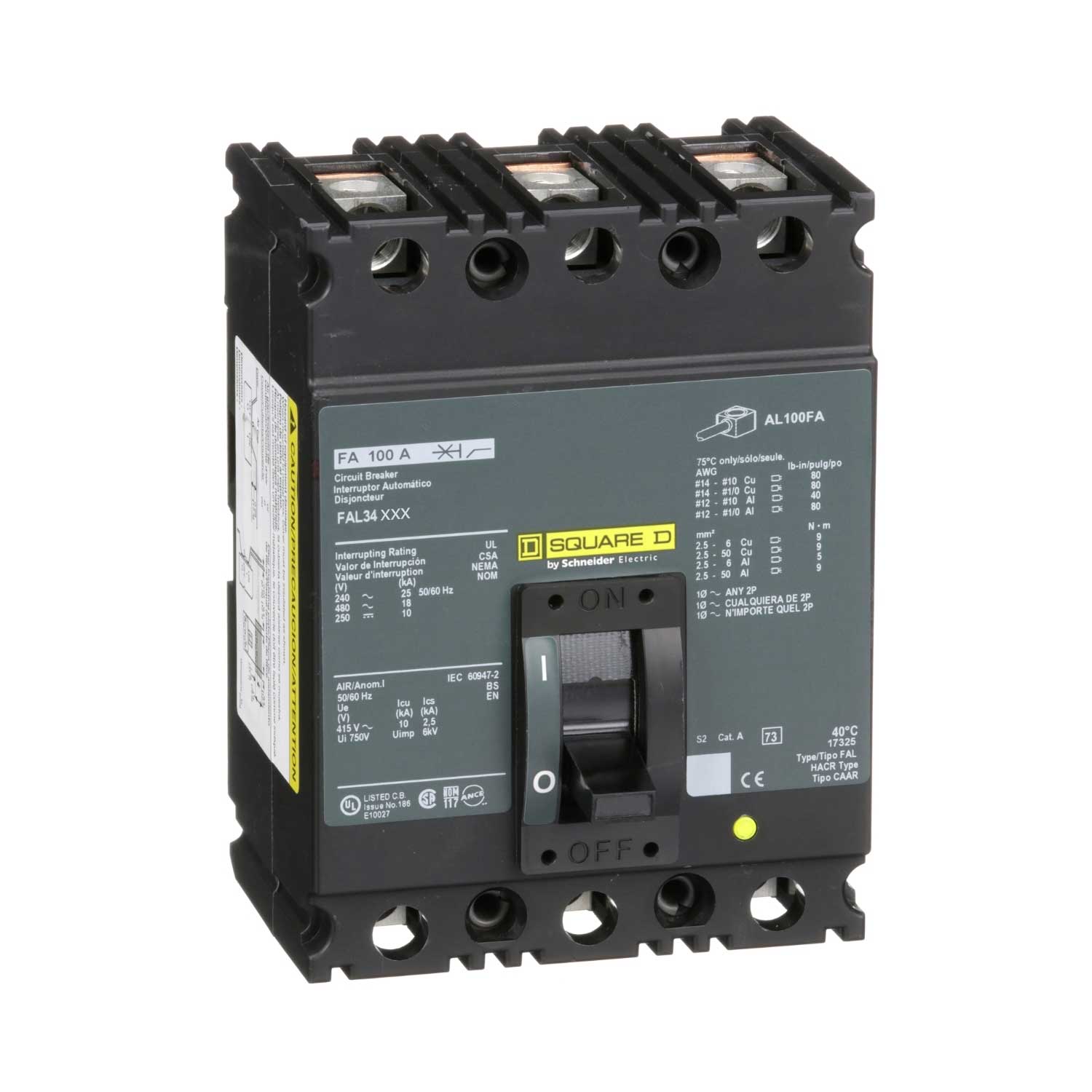

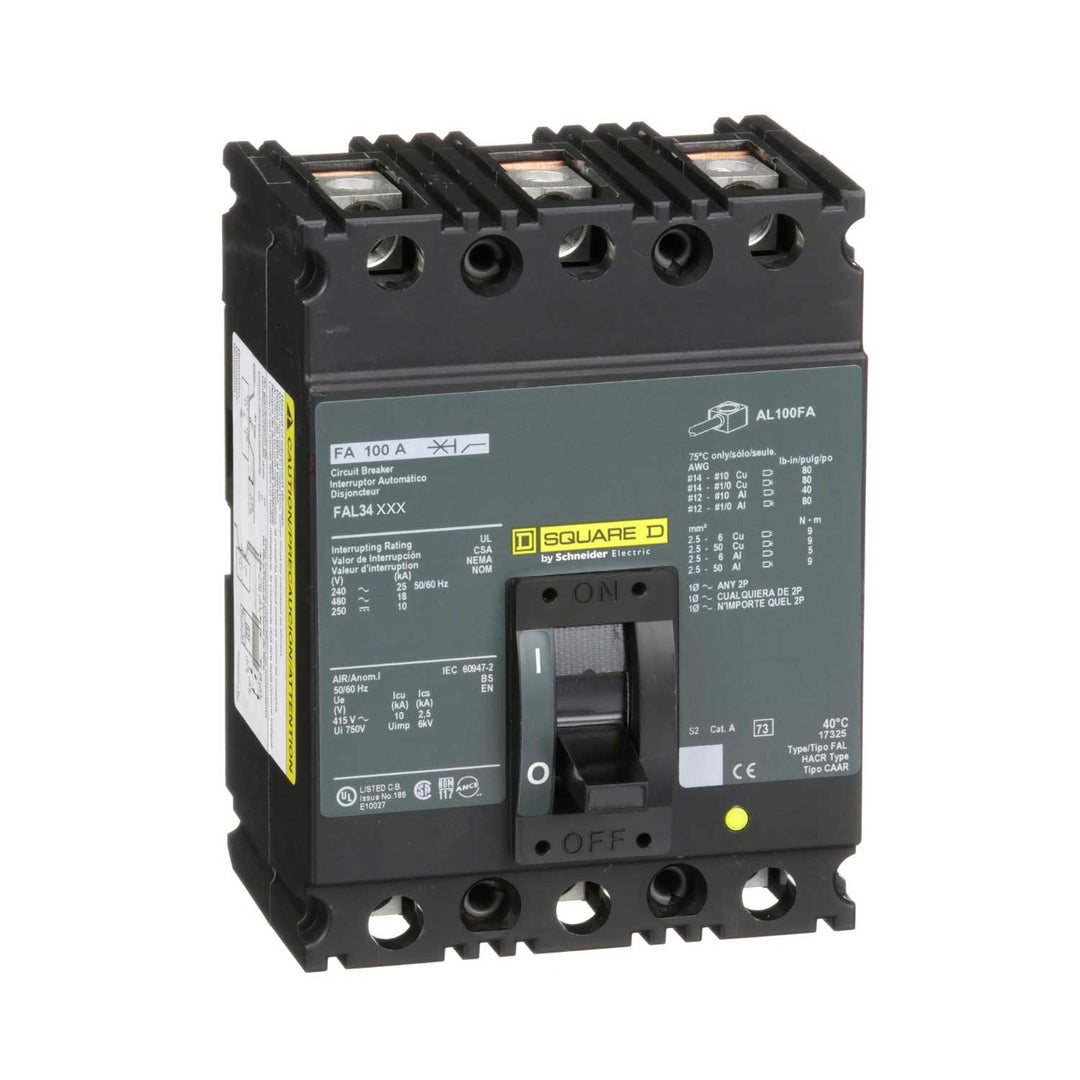

Square D FAL34070 - Molded Case Circuit Breaker 70A 480V 3P
Square D FAL34070 - Molded Case Circuit Breaker 70A 480V 3P

Square D FAL34070 - Molded Case Circuit Breaker 70A 480V 3P

Square D
Price
Save $725.12
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D FAL34070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 70A current rating and a 480V AC voltage rating, housed within a compact F-frame design measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 5.04 lb. The breaker is UL and CSA certified, utilizing a thermal-magnetic trip unit with Long-Time and Instantaneous (LI) functions to ensure coordinated protection. Its 18kA interrupting rating at 480V and feed-thru connection make it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, FAL Series, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL, CSA
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Phase: 3
  • AIC Rating: 18kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: F Frame
  • Weight: 5.04 lb


Product Identification
  • UPC: 785901423409
  • GTIN: 00785901423409
