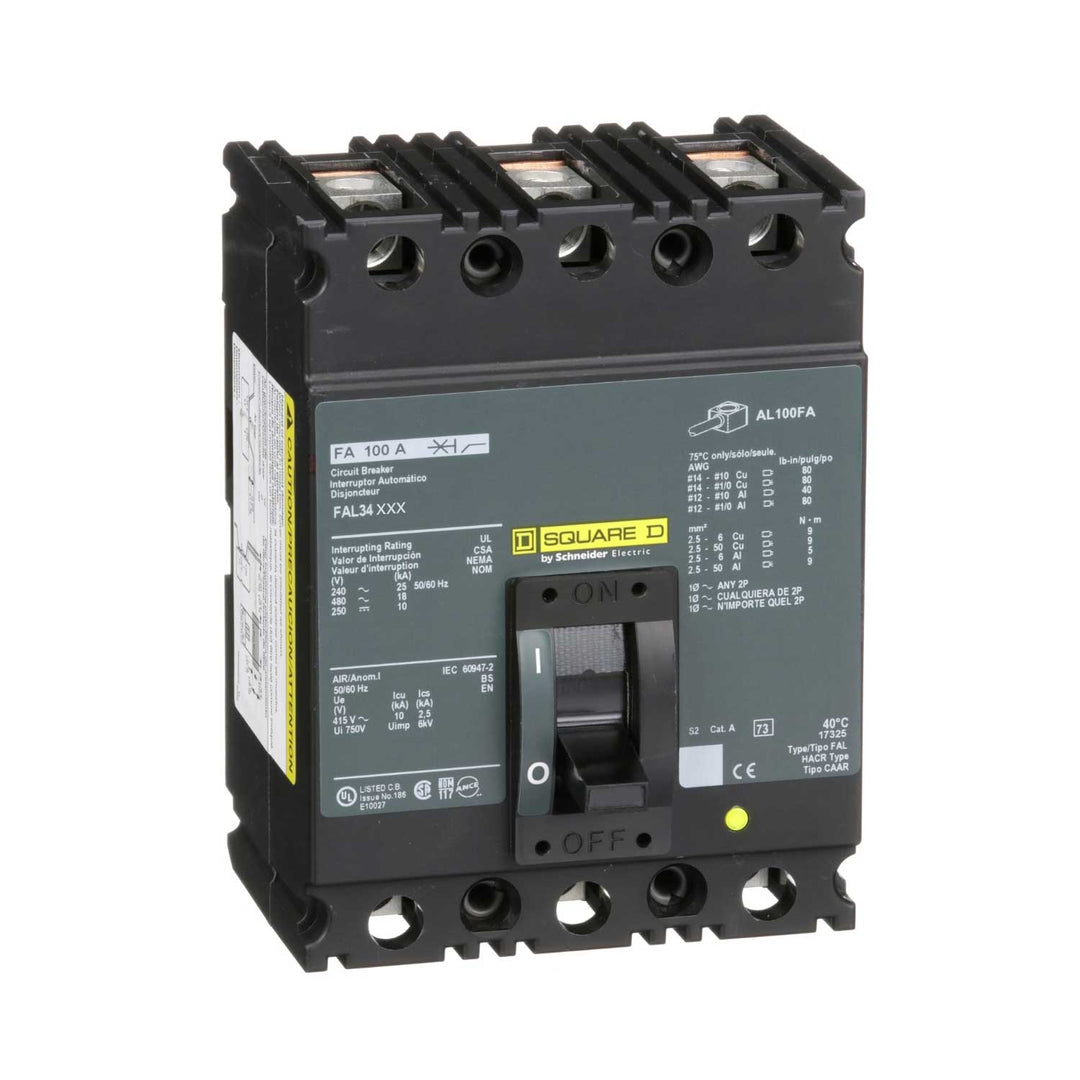

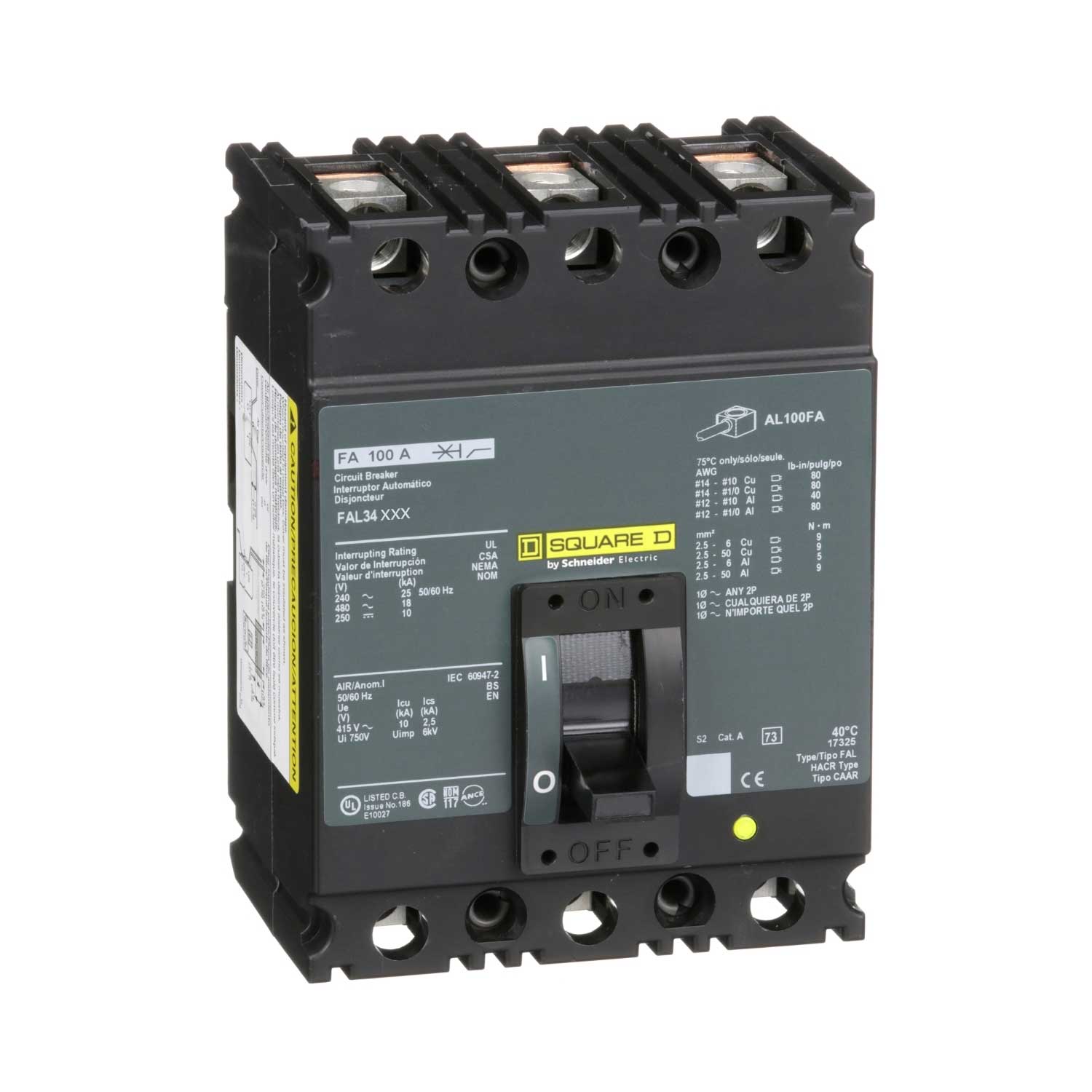

Square D FAL34060 - Molded Case Circuit Breaker 60A 480V 3P
Square D FAL34060 - Molded Case Circuit Breaker 60A 480V 3P

Square D FAL34060 - Molded Case Circuit Breaker 60A 480V 3P

Square D
Price
Save $371.43
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D FAL34060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 60A current rating and a 480V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 5.031 lb. The breaker is UL and CSA certified, ensuring compliance with North American safety standards, and its thermal-magnetic protection with long-time and instantaneous (LI) trip functions makes it suitable for protecting feeders and branch circuits in commercial and industrial panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, FAL Series, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 60A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL, CSA
  • Applications: Industrial power distribution, feeder and branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 60A
  • AIC Rating: 18kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Certification: UL, CSA
  • Mounting: Fixed


Product Identification
  • UPC: 785901423386
  • GTIN: 00785901423386
