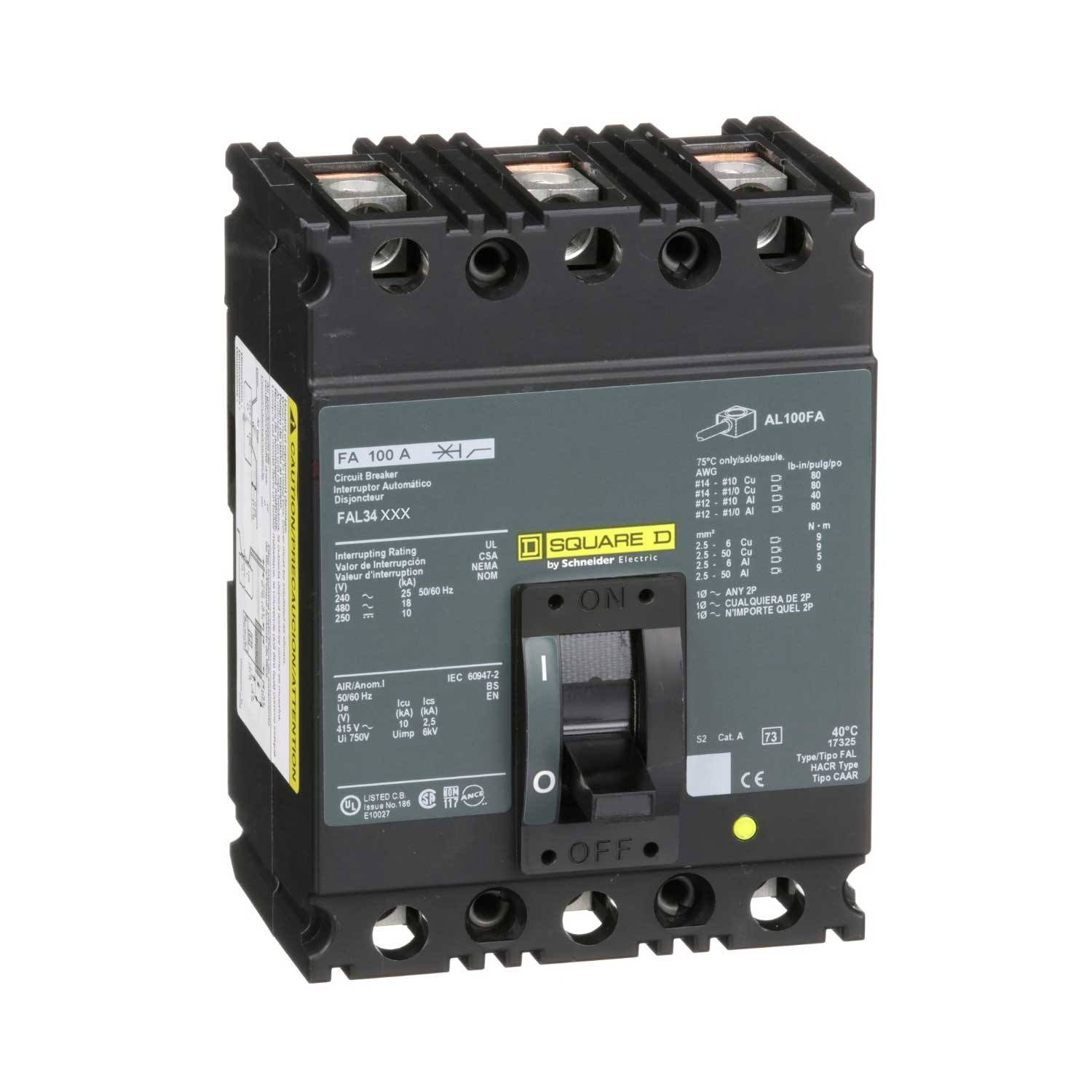

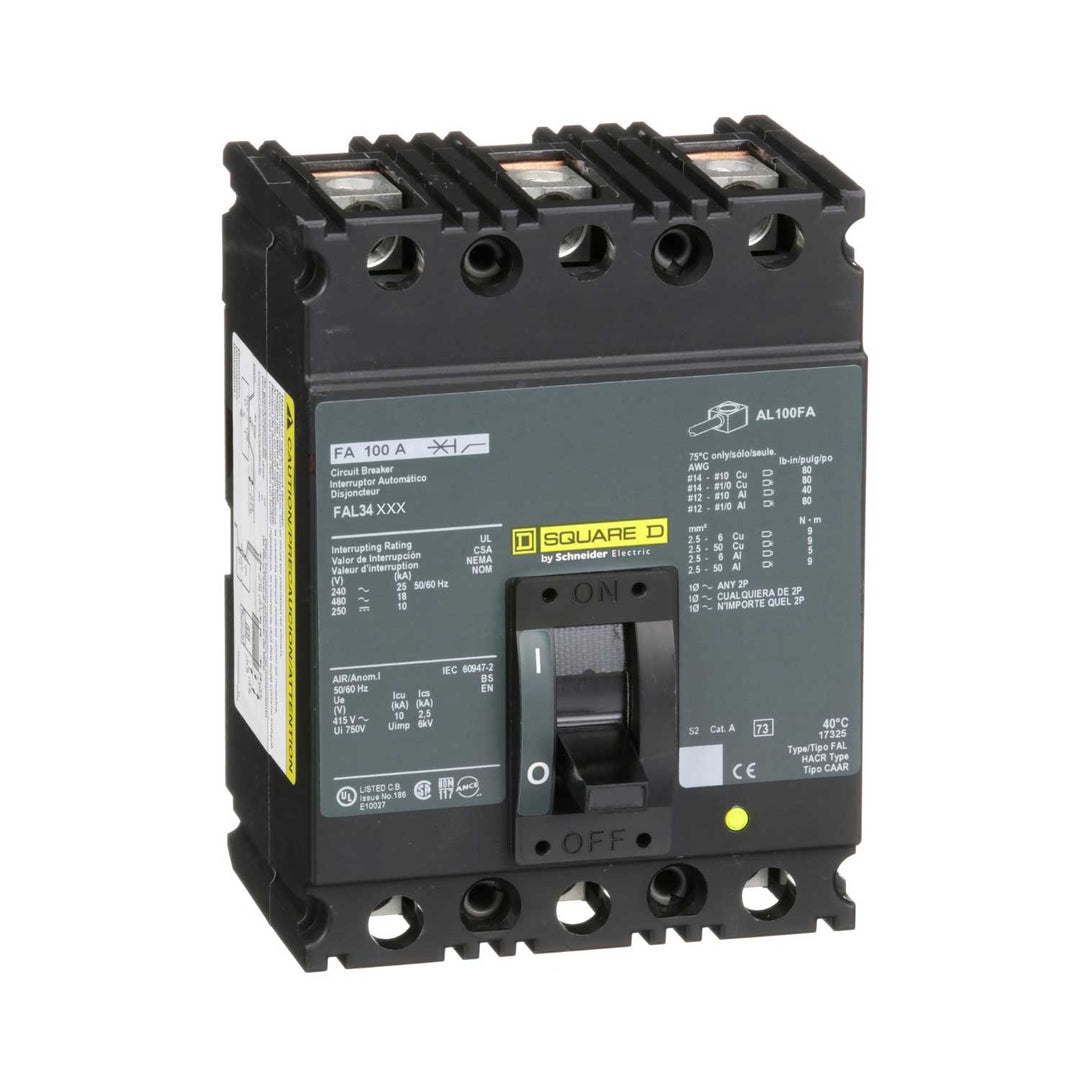

Square D FAL34030 - Molded Case Circuit Breaker, 30A 480V 3P
Square D FAL34030 - Molded Case Circuit Breaker, 30A 480V 3P

Square D FAL34030 - Molded Case Circuit Breaker, 30A 480V 3P

Square D
Price
Save $614.68
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FAL34030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power systems. It features a 30A current rating and a 480V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 5.201 lb. This thermal-magnetic breaker utilizes a long-time and instantaneous (LI) trip function and offers an interrupting capacity of 18kA at 480V, ensuring compliance with UL and CSA standards for safety and performance in demanding commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with LI (Long-time and Instantaneous) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 30A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL, CSA Certified
  • Applications: Industrial and Commercial Power Distribution
  • Phase: 3
  • AIC Rating: 18kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Weight: 5.201 lb


Product Identification
  • UPC: 785901423287
  • GTIN: 00785901423287
