Square D FAL32020 - Molded Case Circuit Breaker, 20A 3P (10kA AIC)
Square D FAL32020 - Molded Case Circuit Breaker, 20A 3P (10kA AIC)

Square D FAL32020 - Molded Case Circuit Breaker, 20A 3P (10kA AIC)

Square D
Price
Save $372.93
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

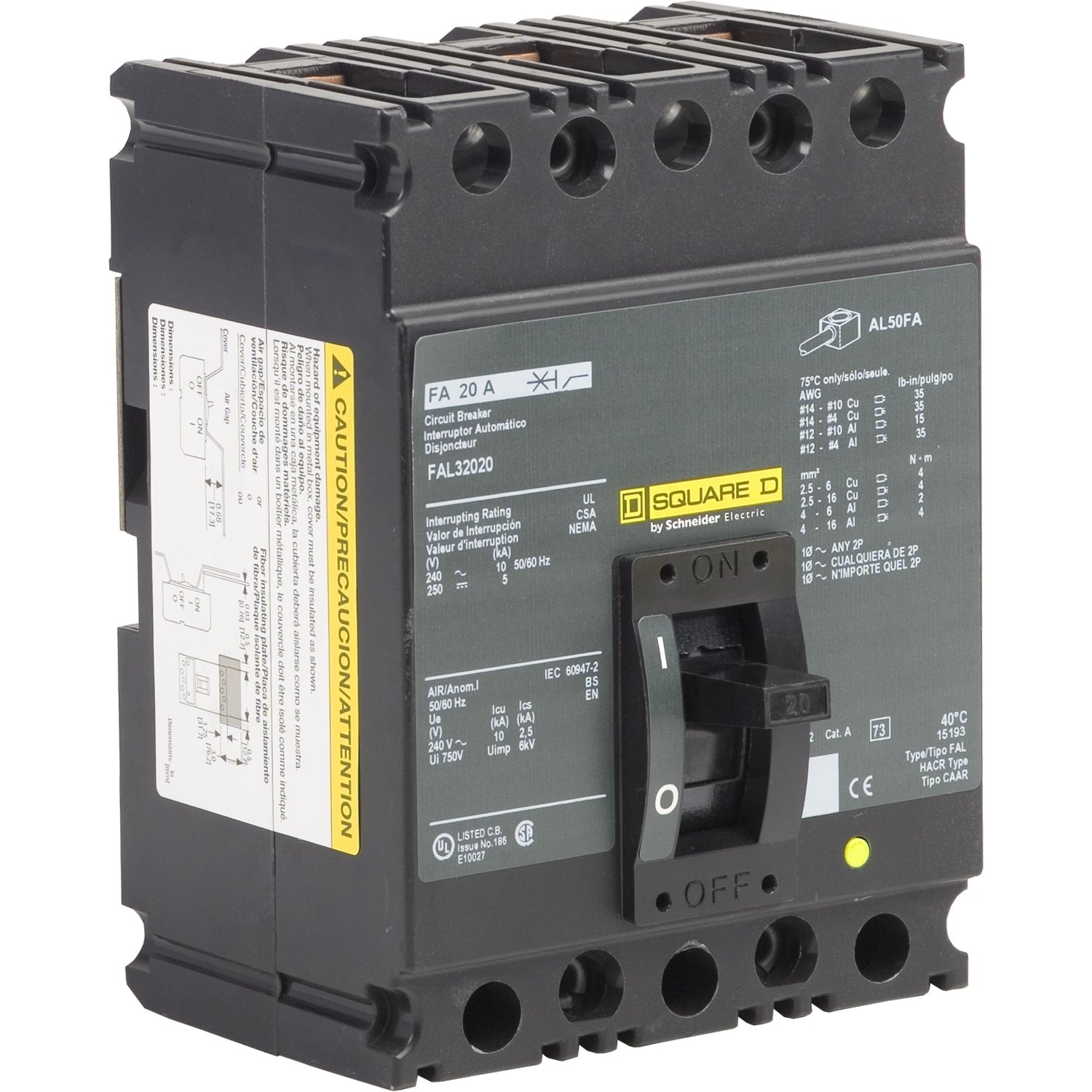

Square D FAL32020 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 20A current rating and a 240V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4 lb. This UL LISTED device utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) functions and offers an interrupting capacity of 10kA at 240V. Its feed-thru connection and robust construction make it suitable for panelboards and switchboards in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 240V AC
  • Current Rating: 20A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL LISTED
  • Applications: Industrial and Commercial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Mounting: Fixed
  • Certification: UL LISTED
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Feed-Thru
  • Standards: UL
  • Family: FAL Series
  • Weight: 4 lb


Product Identification
  • UPC: 785901422969
  • GTIN: 00785901422969
