Square D FAL24100 - Molded Case Circuit Breaker, 100A 480V 2-Pole
Square D FAL24100 - Molded Case Circuit Breaker, 100A 480V 2-Pole

Square D FAL24100 - Molded Case Circuit Breaker, 100A 480V 2-Pole

Square D
Price
Save $-377.02
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

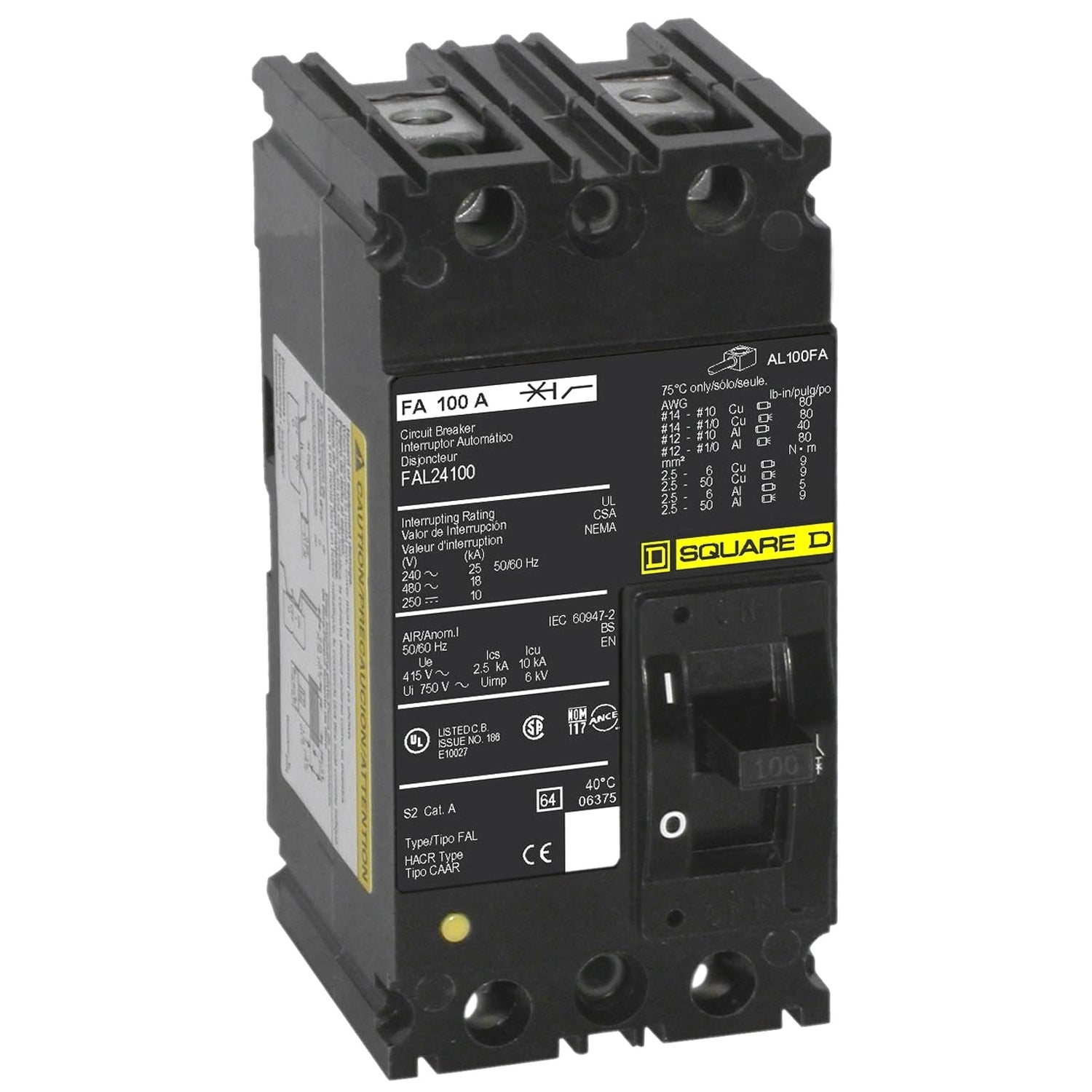

Square D FAL24100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 100A current rating and a 480V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 3 lb. This two-pole, feed-thru connection breaker utilizes a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions and is certified to UL, CSA, and IEC standards for safety and interoperability. Its 18 kA interrupting capacity at 480V makes it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Dimensions: 6.4 in (162.6 mm) H x 3 in (76.2 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL Listed, CSA, IEC
  • Applications: Industrial Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • AIC Rating: 18 kA @ 480V
  • Connection: Feed-Thru
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Certification: UL LISTED, CSA, IEC
  • Weight: 3 lb


Product Identification
  • UPC: 785901254966
  • GTIN: 00785901254966
