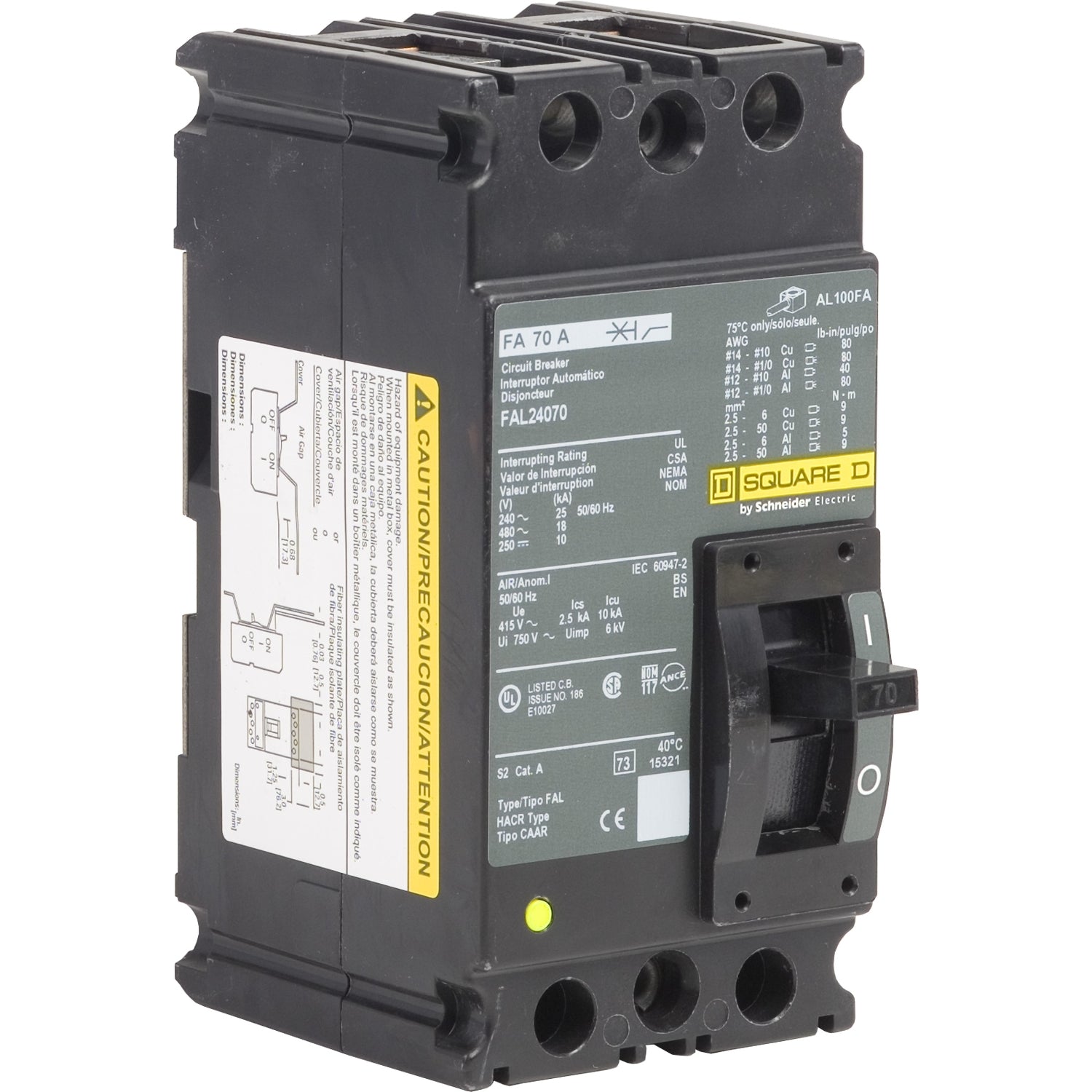

Square D FAL24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D FAL24070 - Molded Case Circuit Breaker 70A 480V 2-Pole

Square D FAL24070 - Molded Case Circuit Breaker 70A 480V 2-Pole

Square D
Price
Save $695.22
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Square D FAL24070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 70A current rating and a 480V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 3.53 lb. This thermal magnetic breaker is UL LISTED and offers an interrupting capacity of 18kA at 480V, ensuring compliance with key safety standards for robust performance in demanding single-phase applications with feed-thru connections.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Dimensions: 6.4 in (162.6 mm) H x 3 in (76.2 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL LISTED
  • Frame Size: F Frame
  • AIC Rating: 18kA @ 480V
  • Phase: 1
  • Poles: 2
  • Connection: Feed-Thru
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Weight: 3.53 lb


Product Identification
  • UPC: 785901254942
  • Manufacturer Part Number: FAL24070
  • Family: FAL Series
