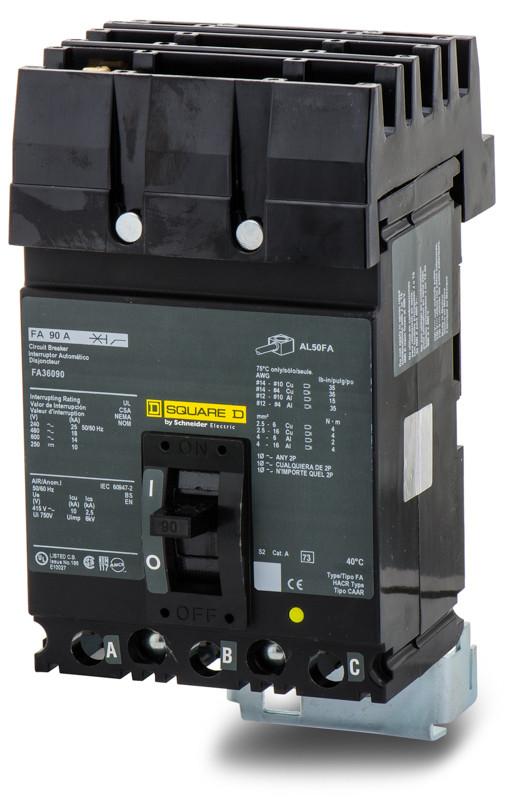

Square D FA36090 - Molded Case Circuit Breaker 90A 600V 3P
Square D FA36090 - Molded Case Circuit Breaker 90A 600V 3P

Square D FA36090 - Molded Case Circuit Breaker 90A 600V 3P

Square D
Price
Save $766.09
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FA36090 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 90A current rating and a 600V AC voltage rating, housed within a compact F-frame design measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 9 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and is engineered for compliance with industry standards. Its I-Line style plug-in connection facilitates straightforward installation in compatible panelboards for applications such as motor control centers, switchgear, and industrial machinery.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: Industry Standard
  • Applications: Industrial Power Distribution, Motor Control Centers, Switchgear
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Phase: 3-Phase
  • AIC Rating: 18kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: F Frame
  • Weight: 9 lb


Product Identification
  • UPC: 785901009757
  • GTIN: 00785901009757
