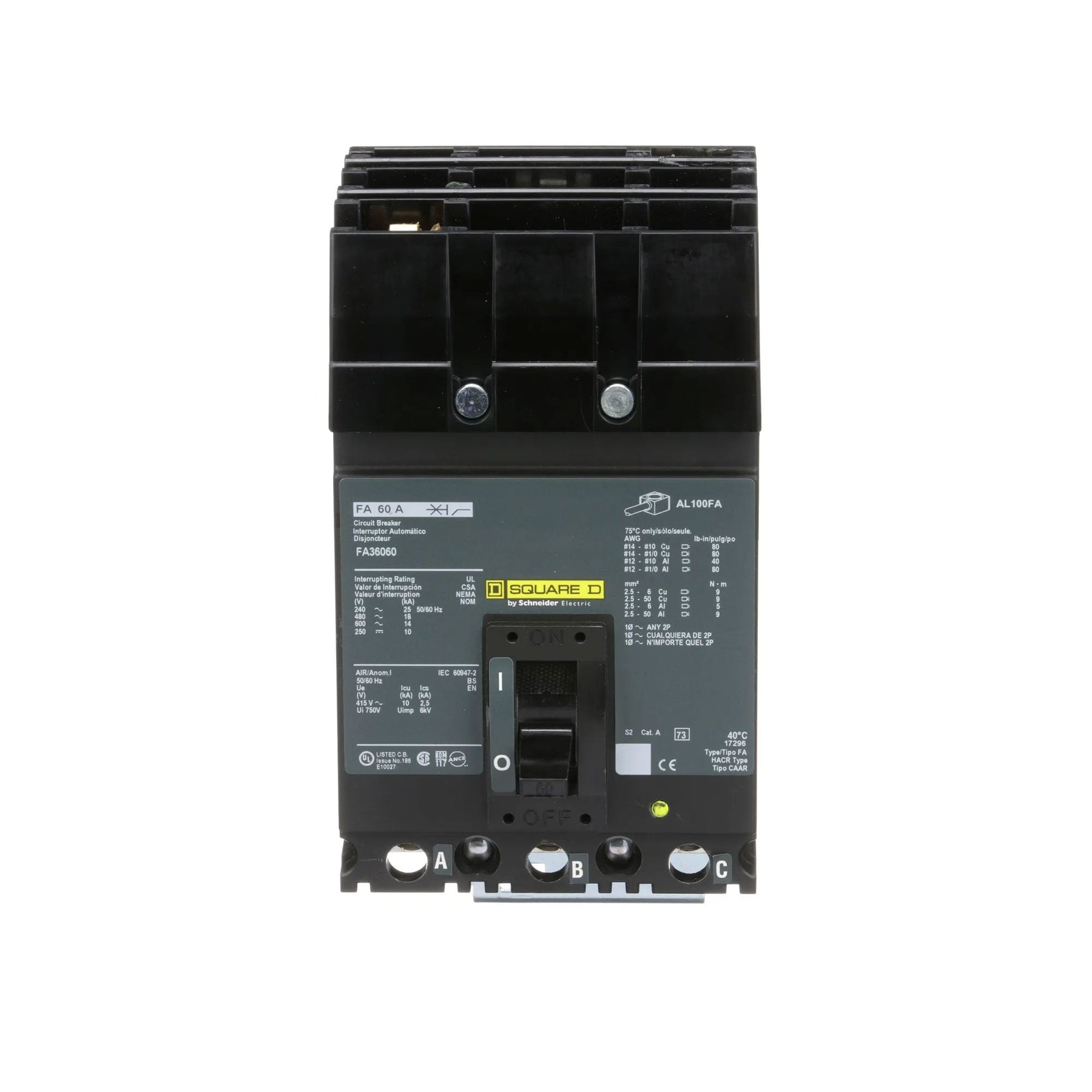

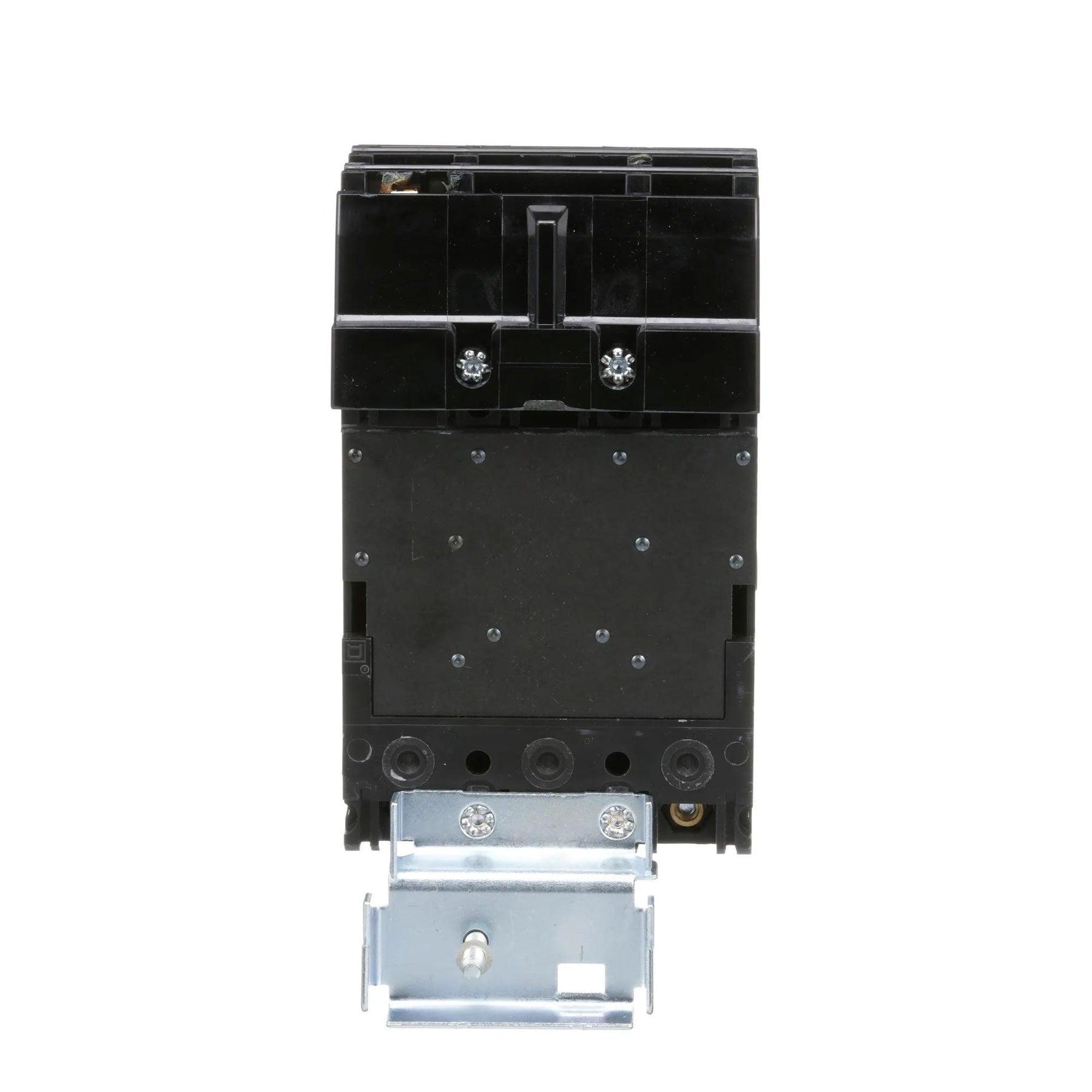

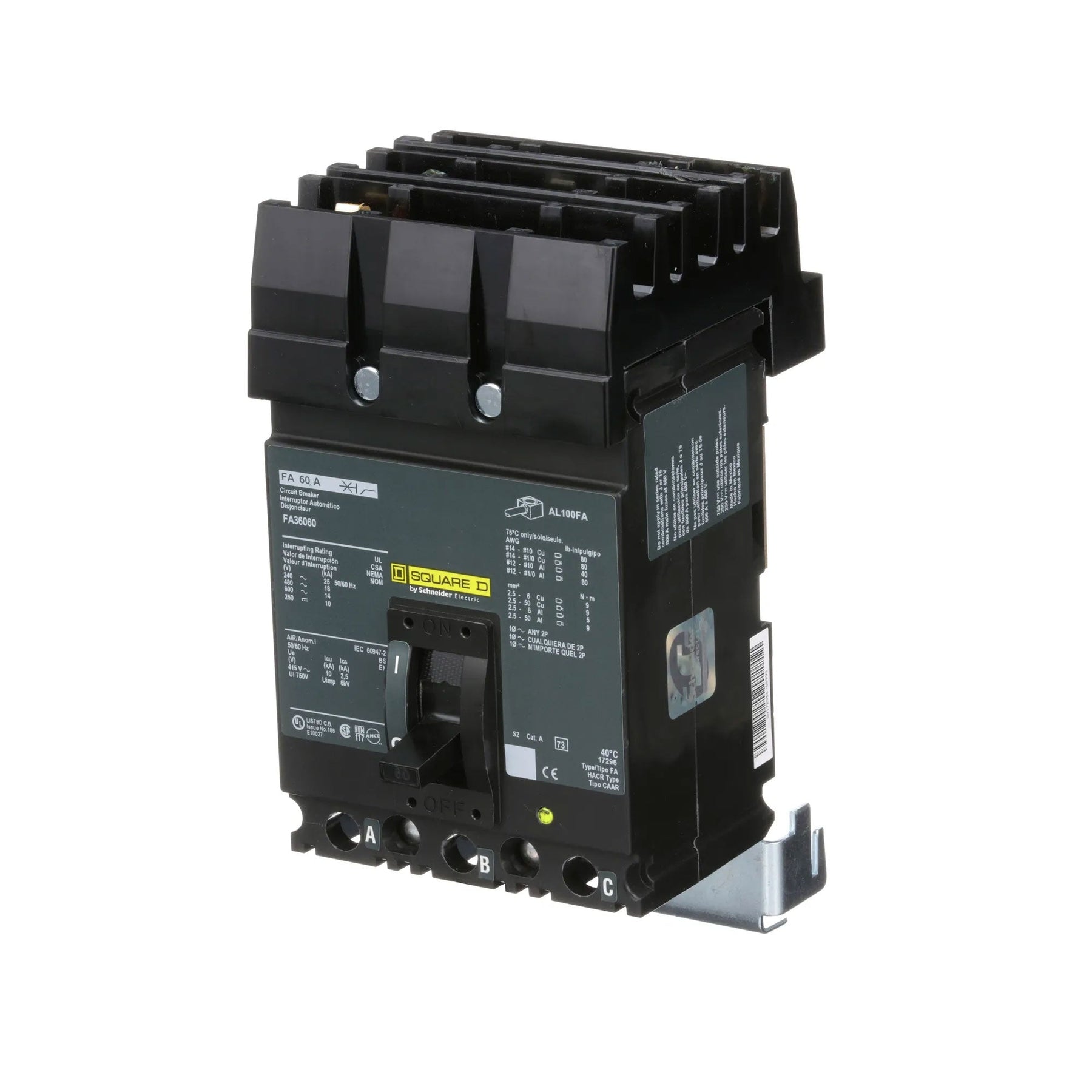

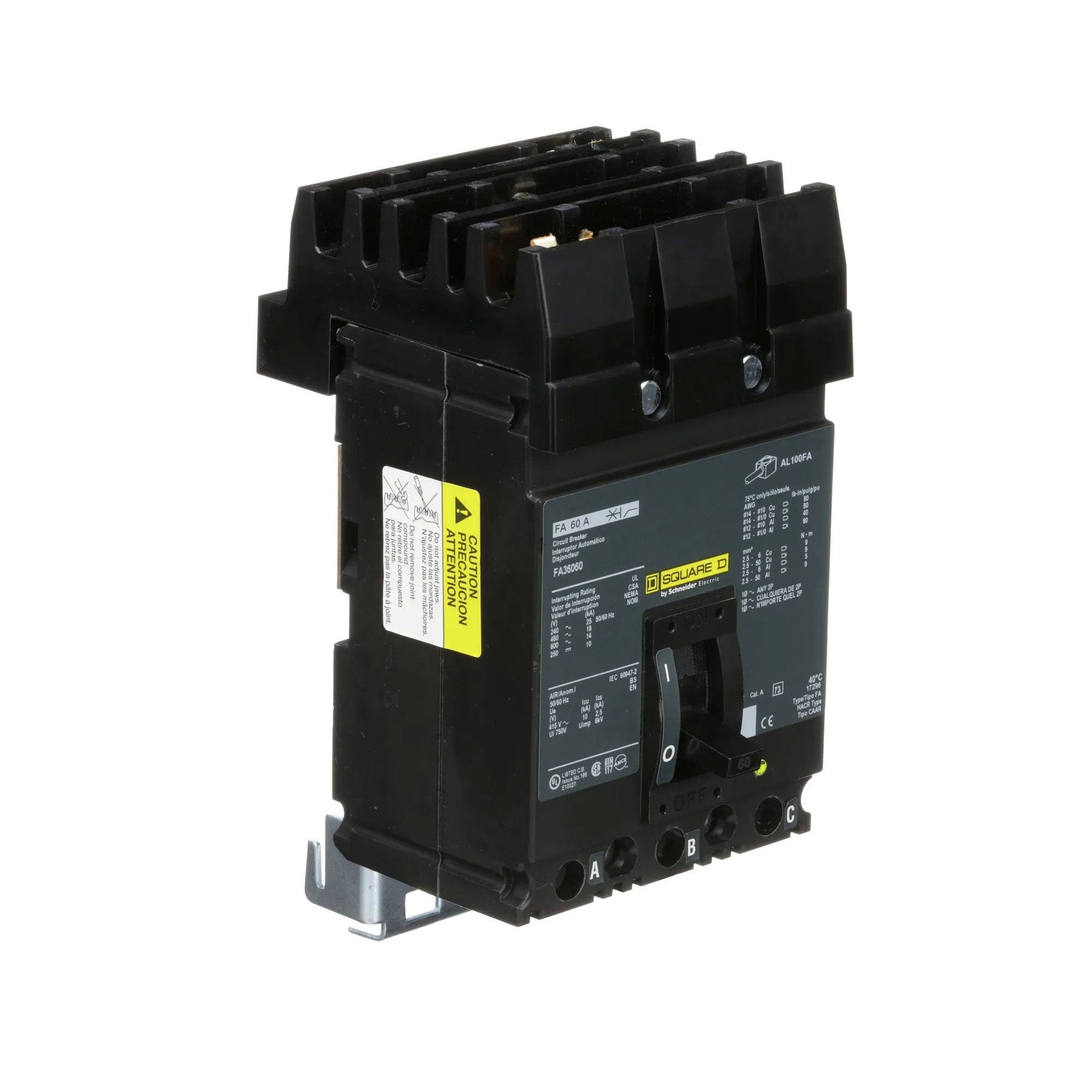

Square D FA36060 - 60A 3-Pole Molded Case Circuit Breaker
Square D FA36060 - 60A 3-Pole Molded Case Circuit Breaker
Square D FA36060 - 60A 3-Pole Molded Case Circuit Breaker
Square D FA36060 - 60A 3-Pole Molded Case Circuit Breaker
Square D FA36060 - 60A 3-Pole Molded Case Circuit Breaker
Square D FA36060 - 60A 3-Pole Molded Case Circuit Breaker
Square D FA36060 - 60A 3-Pole Molded Case Circuit Breaker
Square D FA36060 - 60A 3-Pole Molded Case Circuit Breaker

Square D FA36060 - 60A 3-Pole Molded Case Circuit Breaker

Square D
Price
Save $-188.75
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Square D FA36060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 60A current rating and a 600V voltage rating, housed within a compact F-frame design measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 9 lb. This thermal-magnetic breaker complies with industry standards for safety and performance, offering an interrupting capacity of 18kA at 480V and an operational temperature range of -25 to 70 °C. Its I-Line plug-in connection facilitates straightforward installation in panelboards for applications such as motor control centers, HVAC systems, and main feeder protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with LI (Long-Time and Instantaneous) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 162.6 mm H x 114.3 mm W x 104.9 mm D (6.4 in x 4.5 in x 4.13 in)
  • Standards: Designed to meet applicable industry safety and performance standards
  • Applications: Industrial power distribution, motor control centers, main feeder and branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Phase: 3-Phase
  • AIC Rating: 18kA at 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Weight: 9 lb


Product Identification
  • UPC: 785901009740
  • GTIN: 00785901009740
