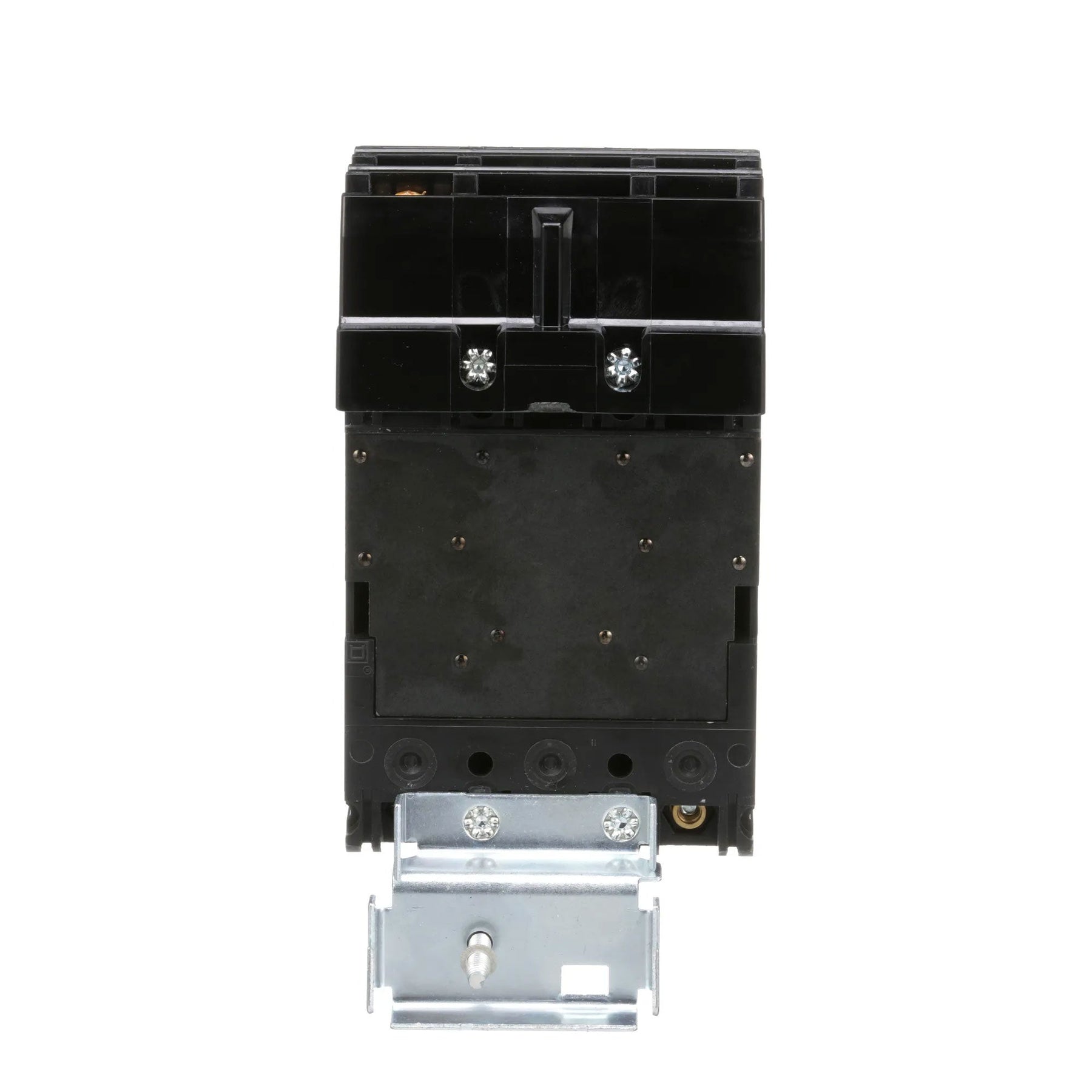

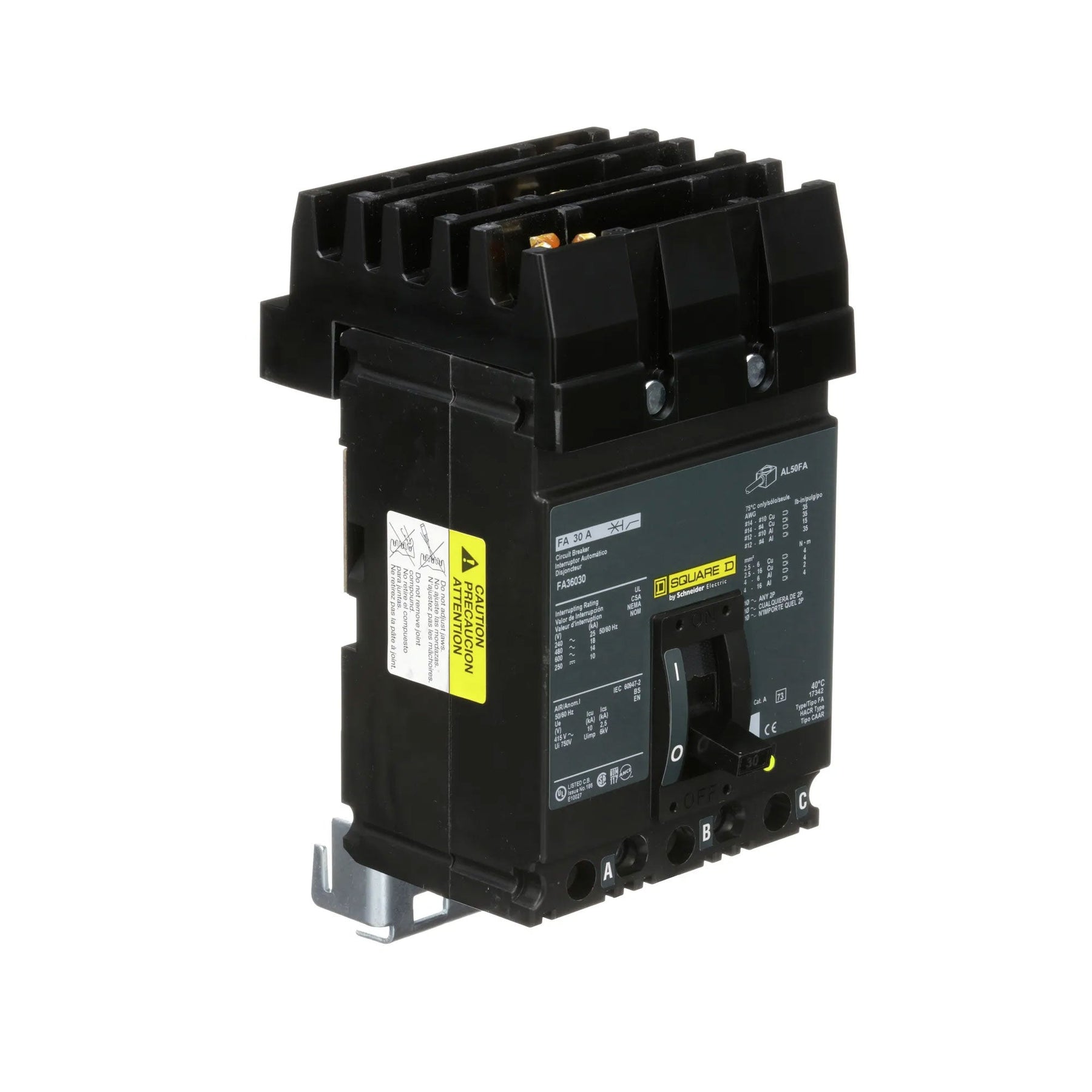

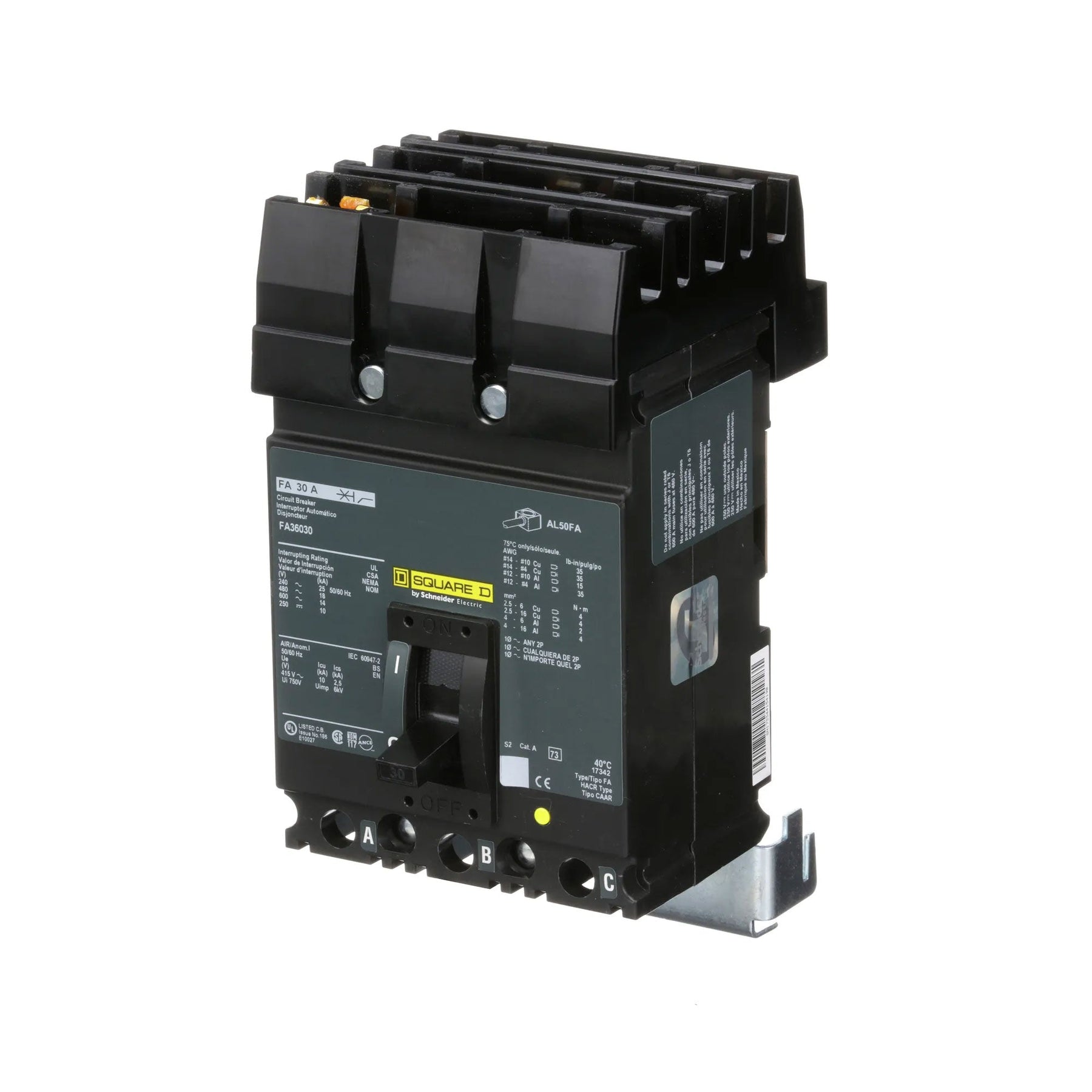

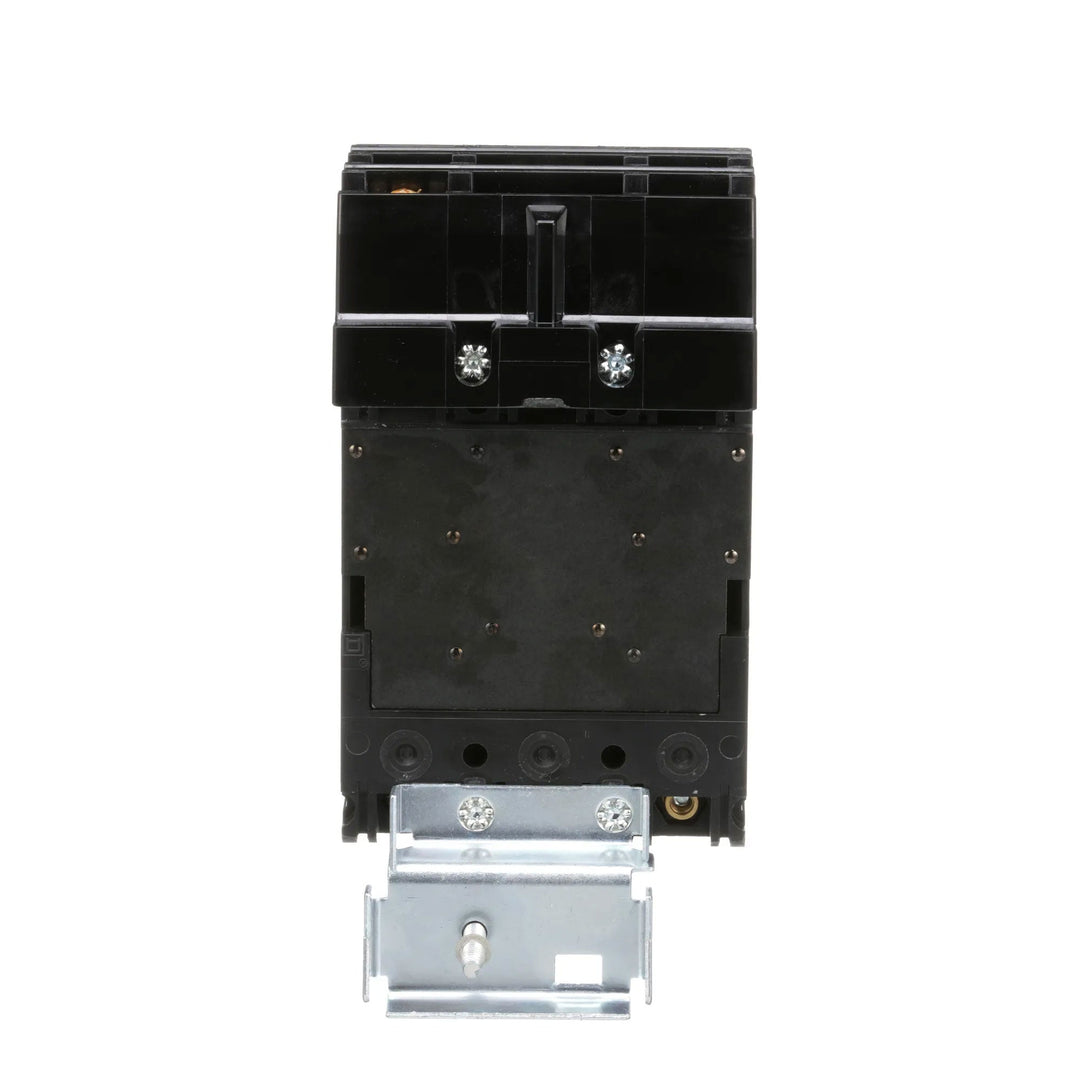

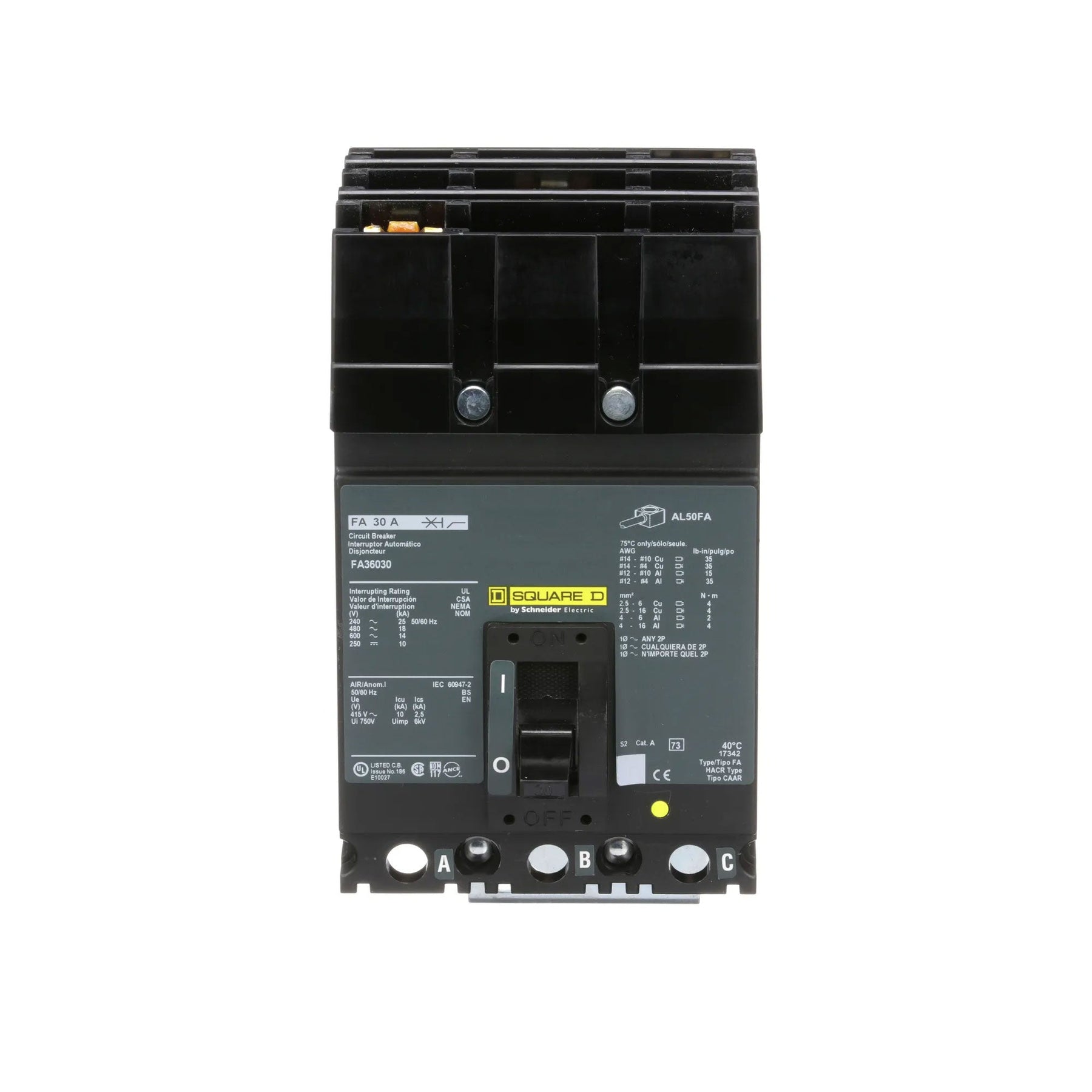

Square D FA36030 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 30A current rating and a 600V AC voltage rating, housed within a compact F-frame design measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 9 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and offers an interrupting capacity of 18kA at 480V AC. Its I-Line style plug-in connection facilitates straightforward panelboard installation, and it operates reliably across a temperature range of -25 to 70 °C, making it suitable for a variety of commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In Connection
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 162.6 mm H x 114.3 mm W x 104.9 mm D (6.4 in x 4.5 in x 4.13 in)
  • Weight: 9 lb
  • Standards: Designed for industrial compliance
  • Applications: Three-phase power distribution, panelboards, industrial control
  • Phase: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901429128
  • GTIN: 00785901429128
