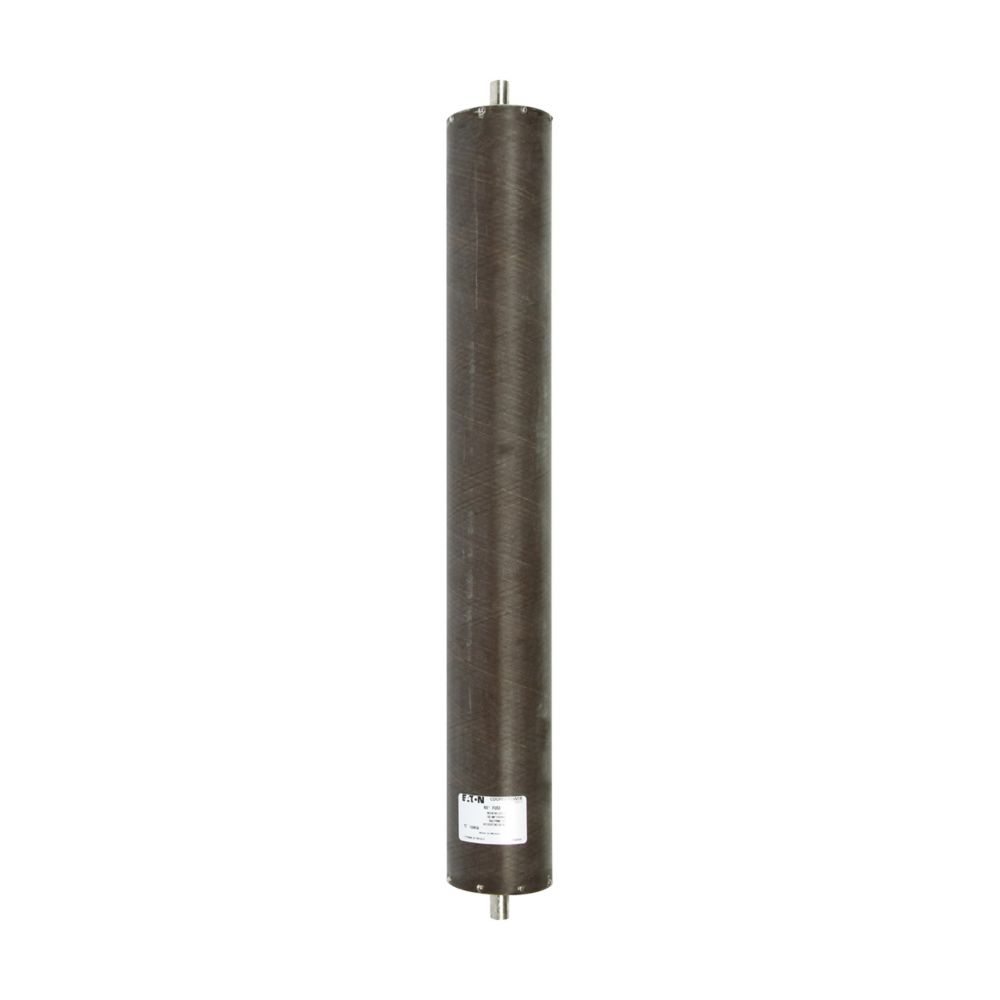

Eaton FA2H65 - High-Voltage Fuse Switch 65kV/200A (IEEE C37.41 Compliant)

Eaton FA2H65 is a high-voltage fuse switch designed for circuit protection in industrial power distribution systems. It features a 65 kV voltage rating and 200 A current capacity, housed in a durable polymer enclosure with copper alloy contacts for reliable operation. The switch complies with IEEE C37.41 standards and is UL-certified for safety. Typical applications include transformer protection, capacitor banks, and feeder circuits in utility substations and heavy industrial facilities.

Key Features & Specifications

• Type: FA series high-voltage expulsion fuse switch with polymer housing
• Voltage Rating: 65 kV AC
• Current Rating: 200 A continuous
• Dimensions: 18.5" x 9.8" x 7.2" (470 x 250 x 183 mm)
• Standards: IEEE C37.41, UL 248-12
• Applications: Substation protection, industrial power distribution
• Weight: 3 lb (1.36 kg)
• Family: Cooper Power Series NX
• Section: Fuses
• Mounting: Vertical or horizontal
• Operating Temperature: -40°C to +60°C
• Interrupting Rating: 50 kA symmetrical
• Contact Material: Copper alloy
• Insulation: Dry-type, non-flammable
