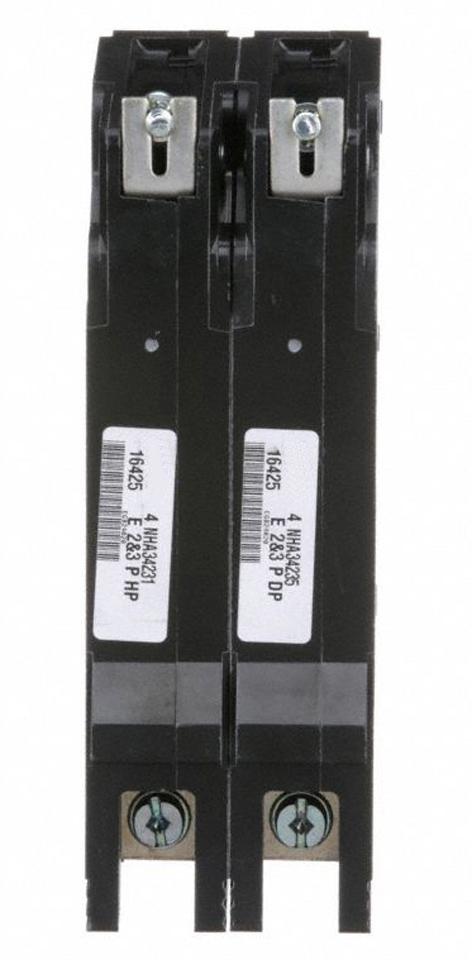

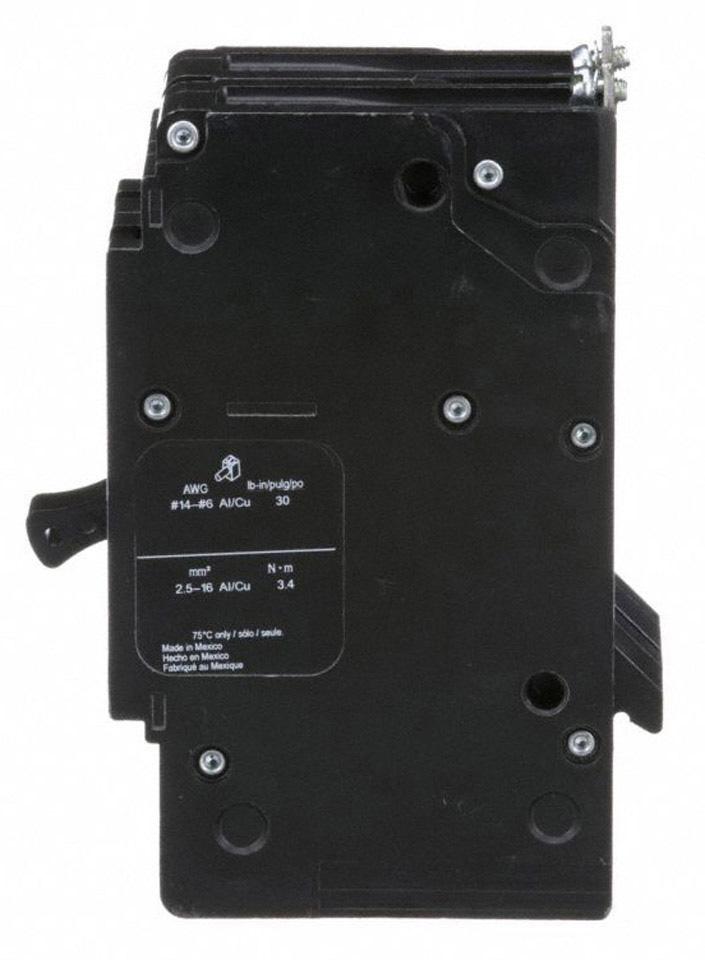

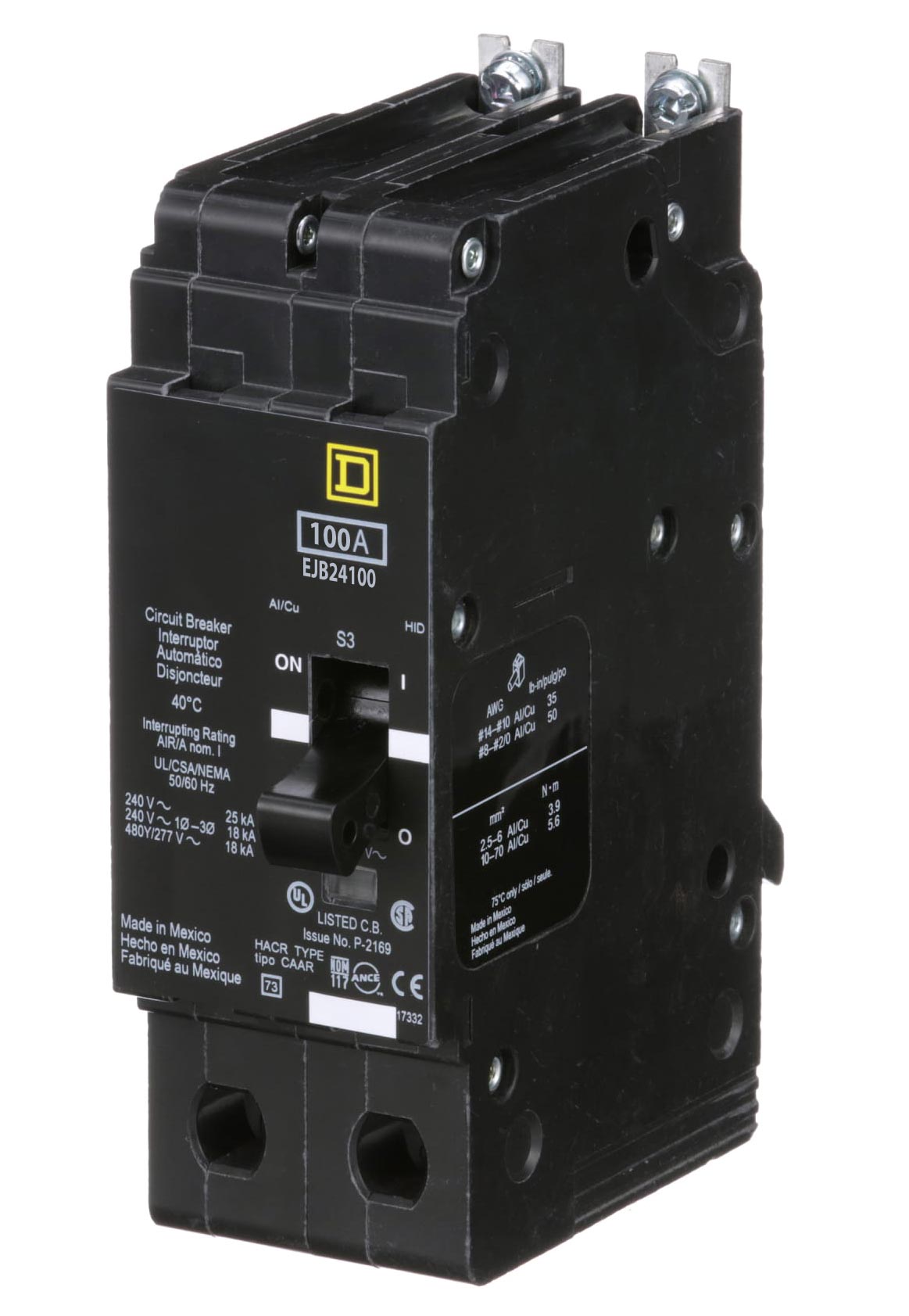

Square D EJB24100 - Molded Case Circuit Breaker 100A 480V 2-Pole
Square D EJB24100 - Molded Case Circuit Breaker 100A 480V 2-Pole
Square D EJB24100 - Molded Case Circuit Breaker 100A 480V 2-Pole
Square D EJB24100 - Molded Case Circuit Breaker 100A 480V 2-Pole
Square D EJB24100 - Molded Case Circuit Breaker 100A 480V 2-Pole
Square D EJB24100 - Molded Case Circuit Breaker 100A 480V 2-Pole
Square D EJB24100 - Molded Case Circuit Breaker 100A 480V 2-Pole
Square D EJB24100 - Molded Case Circuit Breaker 100A 480V 2-Pole

Square D EJB24100 - Molded Case Circuit Breaker 100A 480V 2-Pole

Square D
Price
Save $-595.13
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D EJB24100 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 100A current rating and a 480V AC voltage rating, housed within a compact, durable enclosure measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.47 lb. The breaker is cULus certified and complies with industry standards, offering thermal-magnetic protection with long-time and instantaneous (LI) trip functions for safeguarding against overloads and short circuits. Its 65kA interrupting rating at 480V and bolt-on connection for NF panelboards make it suitable for a wide range of applications, including feeder and branch circuit protection in single-phase systems, operating reliably in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Standards: cULus Certified
  • Applications: Feeder and Branch Circuit Protection in Industrial/Commercial NF Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • AIC Rating: 65kA @ 480V
  • Connection: Bolt-On
  • Panel Type: NF panelboard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 12 to 2/0 Aluminum, AWG 14 to 2/0 Copper
  • Weight: 2.47 lb


Product Identification
  • UPC: 785901968498
  • GTIN: 00785901968498
