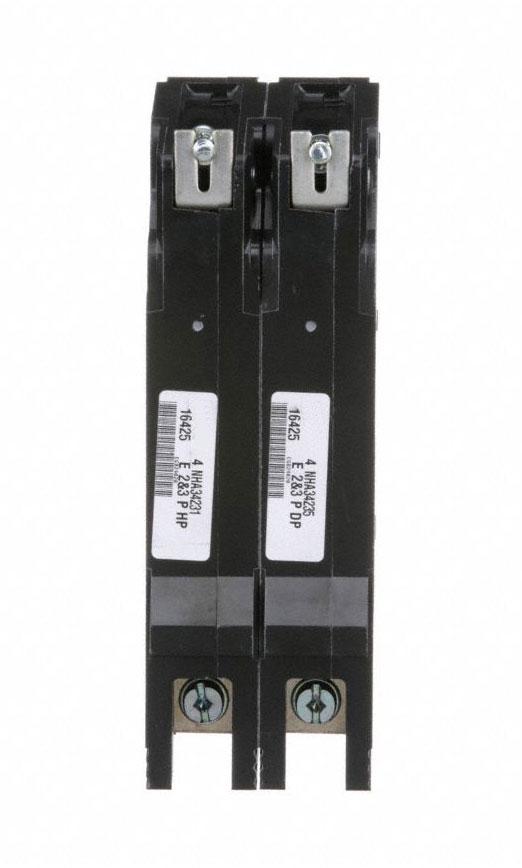

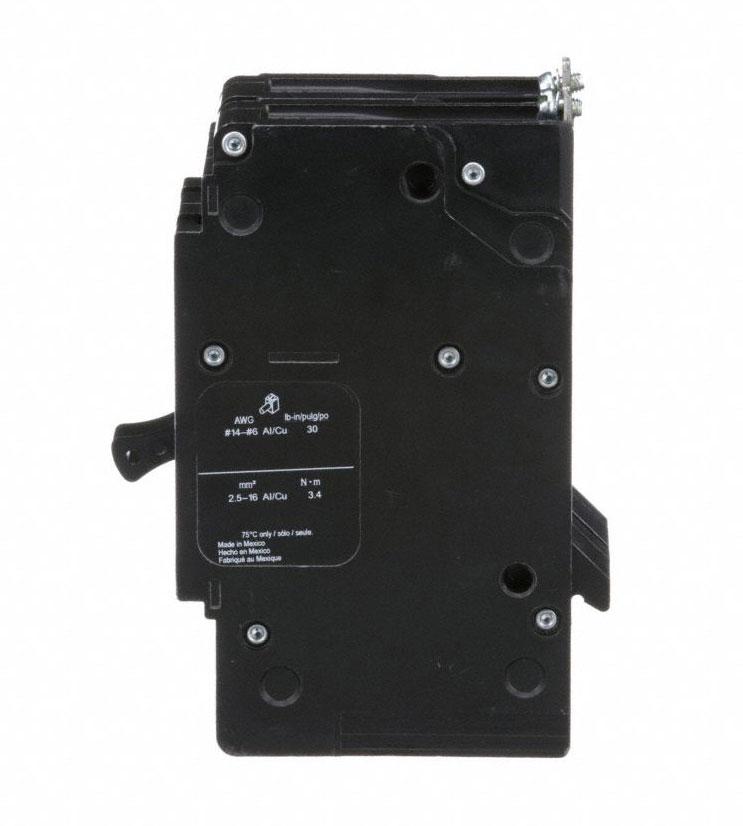

Square D EJB24090 - Molded Case Circuit Breaker 90A 2-Pole

Price
Regular price $791.51
Regular price Sale price $791.51
Save $-791.51
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Square D EJB24090 is a molded case circuit breaker designed to provide reliable overcurrent protection for industrial electrical systems. It features a 90A current rating and a 480V AC voltage rating, housed in a compact, bolt-on configuration measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.47 lb. The breaker utilizes a thermal-magnetic trip unit providing both long-time and instantaneous (LI) protection, is certified to cULus standards, and operates within a temperature range of -25 to 70 °C. Its 65kA interrupting rating at 480V and compatibility with NF panelboards make it suitable for protecting feeders and branch circuits in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 90A
  • Dimensions: 5.66 in H (143.76 mm) x 1.96 in W (49.78 mm) x 4.05 in D (102.87 mm)
  • Weight: 2.47 lb
  • Standards: cULus Certified
  • Applications: Feeder and Branch Circuit Protection in NF Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 65kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Panel Type: NF Panelboard
  • Breaker Type: Molded Case
  • Wire Size: AWG 12 to 2/0 Aluminum, AWG 14 to 2/0 Copper
  • Frame: EJB Series


Product Identification
  • UPC: 653829023851
