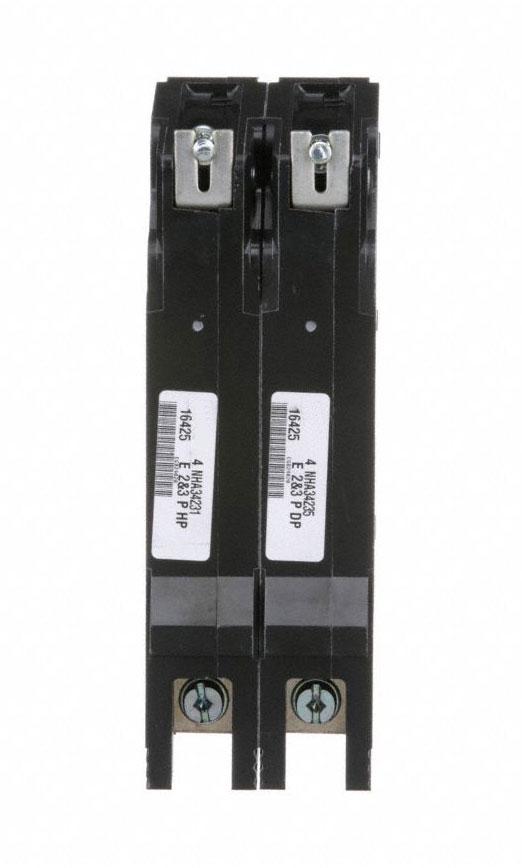

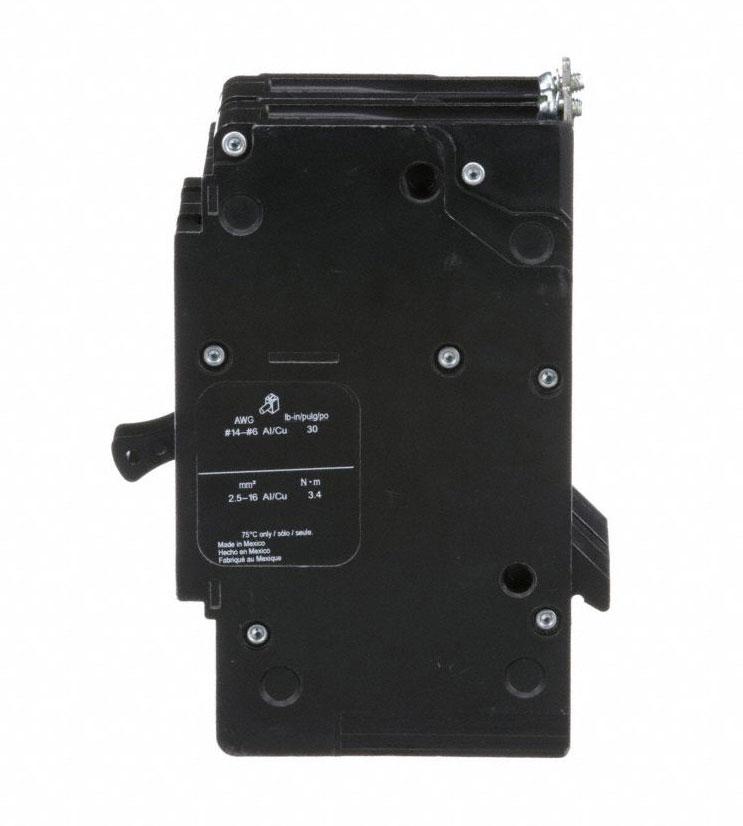

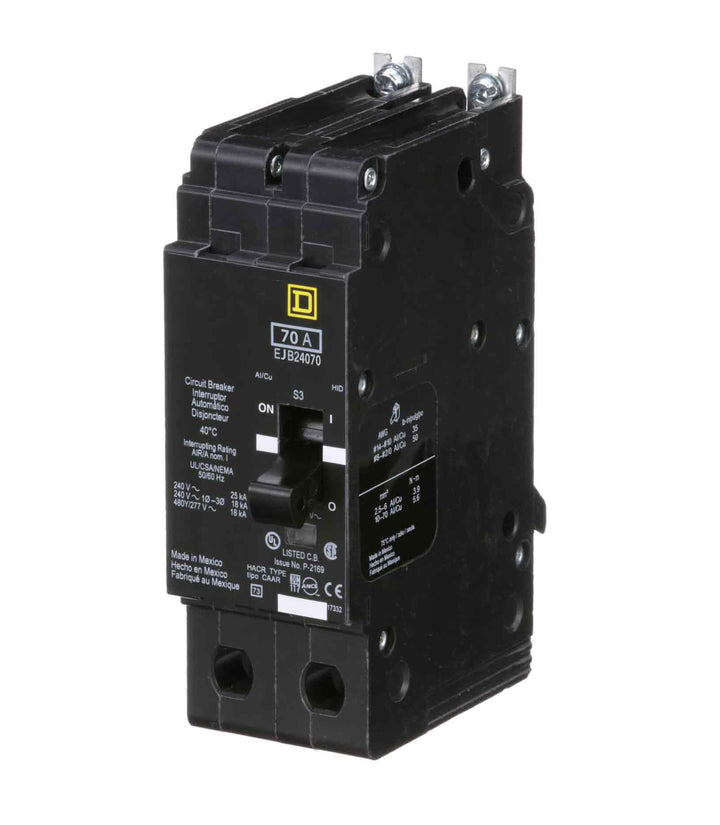

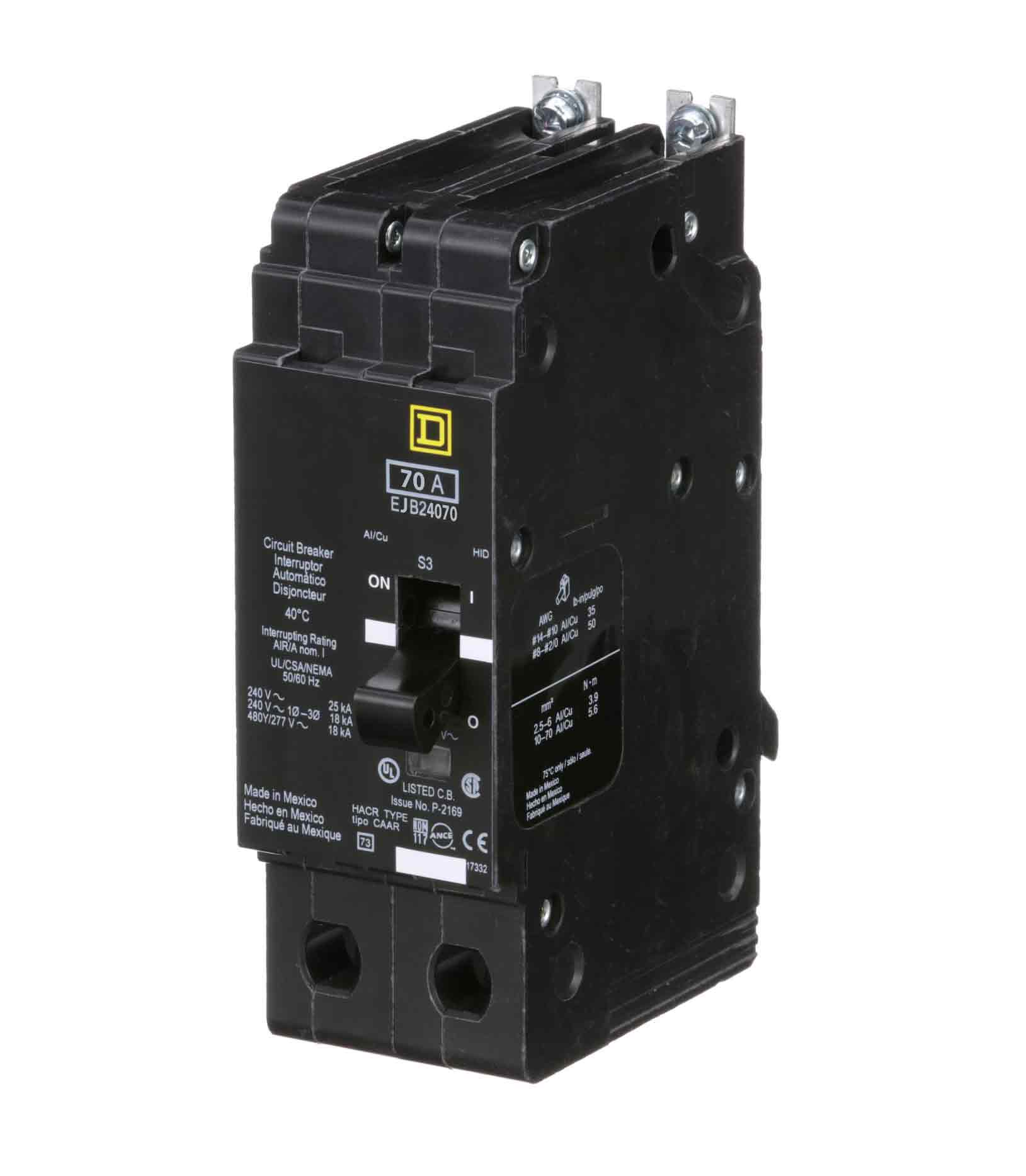

Square D EJB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EJB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EJB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EJB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EJB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EJB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EJB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EJB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole

Square D EJB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole

Square D
Price
Save $1,256.49
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D EJB24070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 70A current rating and a 480V AC voltage rating, housed within a compact, bolt-on design measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.47 lb. This thermal-magnetic breaker, certified to cULus standards, offers LI (Long-time and Instantaneous) trip functions with a 65kA interrupting rating at 480V and operates effectively in temperatures from -25°C to 70°C. It is engineered for integration into NF panelboards to protect single-phase circuits, accommodating wire sizes from AWG 12 to 2/0 for aluminum and AWG 14 to 2/0 for copper conductors.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Weight: 2.47 lb
  • Standards: cULus Certified
  • Applications: Industrial and Commercial Electrical Distribution, NF Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Poles: 2
  • AIC Rating: 65kA @ 480V
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: EJB Series
  • Trip Type: Thermal Magnetic
  • Panel Type: NF panelboard
  • Breaker Type: Molded Case
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 12 to AWG 2/0 Aluminum, AWG 14 to AWG 2/0 Copper
  • Certification: cULus
  • Mounting: Panel Mount
  • Family: EJB Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901130604
  • GTIN: 00785901130604
