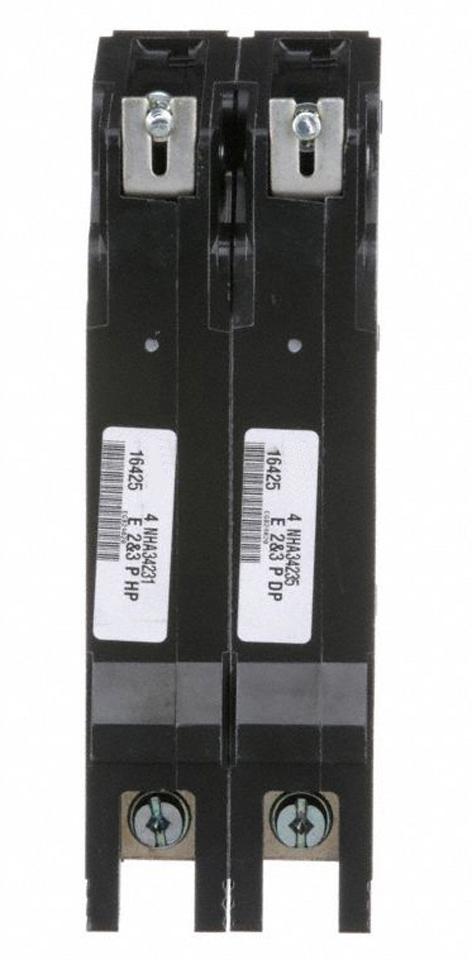

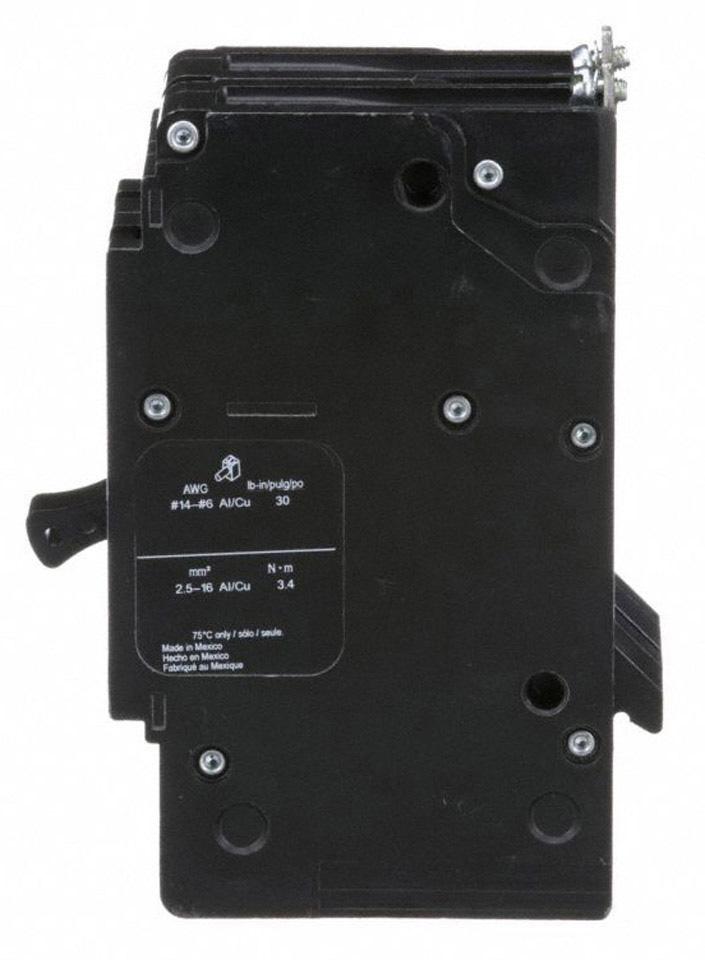

Square D EJB24060 - Molded Case Circuit Breaker 60A 480V 2-Pole
Square D EJB24060 - Molded Case Circuit Breaker 60A 480V 2-Pole
Square D EJB24060 - Molded Case Circuit Breaker 60A 480V 2-Pole
Square D EJB24060 - Molded Case Circuit Breaker 60A 480V 2-Pole
Square D EJB24060 - Molded Case Circuit Breaker 60A 480V 2-Pole
Square D EJB24060 - Molded Case Circuit Breaker 60A 480V 2-Pole
Square D EJB24060 - Molded Case Circuit Breaker 60A 480V 2-Pole
Square D EJB24060 - Molded Case Circuit Breaker 60A 480V 2-Pole

Square D EJB24060 - Molded Case Circuit Breaker 60A 480V 2-Pole

Square D
Price
Save $730.12
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

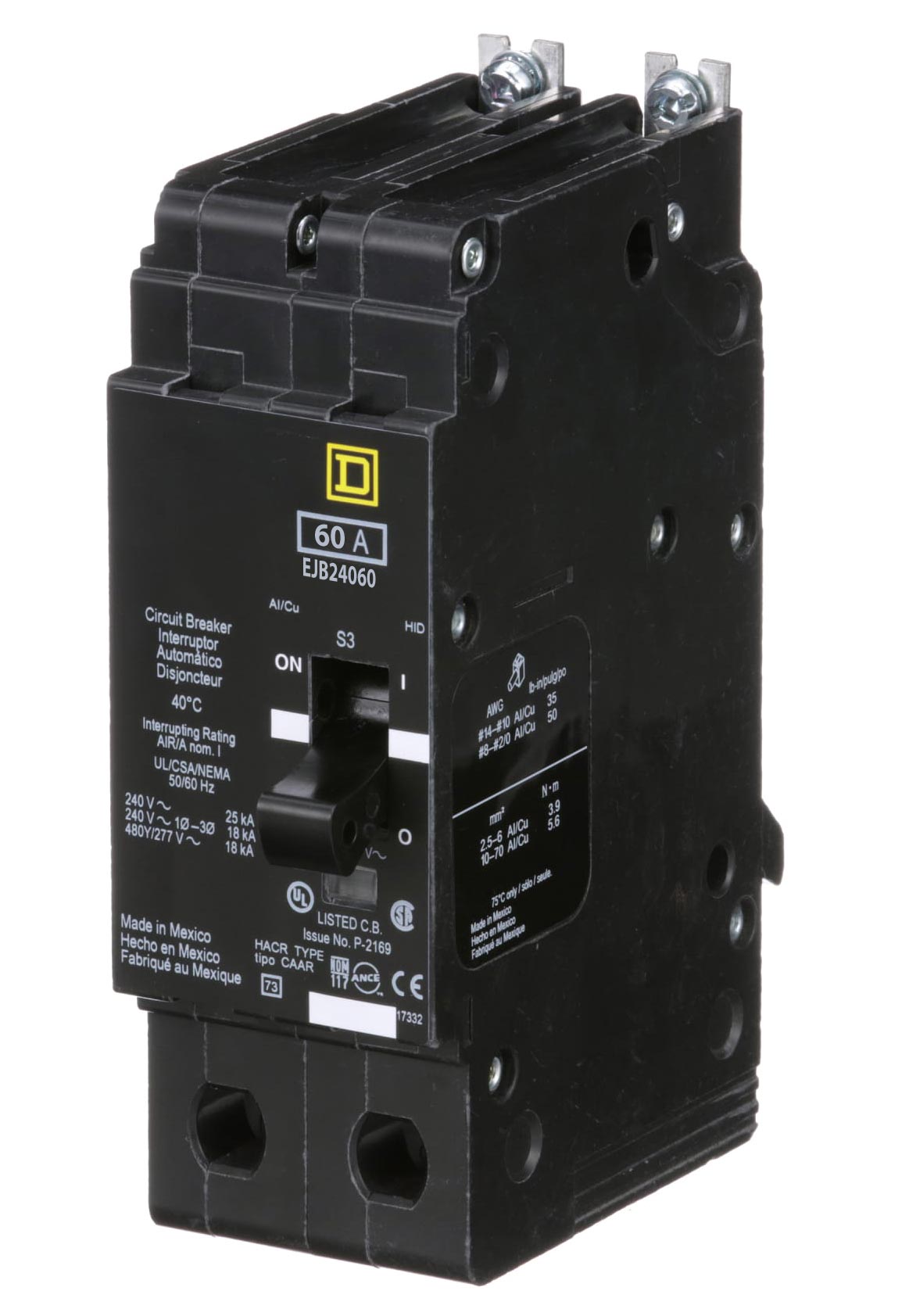

Square D EJB24060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 60A current rating and a 480V AC voltage rating, housed within a compact, bolt-on configuration measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.47 lb. The breaker is cULus certified and operates effectively across a temperature range of -25 to 70 °C, ensuring compliance with industry standards. Its thermal-magnetic protection with long-time and instantaneous (LI) trip functions makes it suitable for safeguarding feeders and branch circuits in NF panelboards, offering an interrupting capacity of 65kA at 480V for robust system defense.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, EJB Series, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 60A
  • Dimensions: 5.66 in (143.76 mm) H x 1.96 in (49.78 mm) W x 4.05 in (102.87 mm) D
  • Standards: cULus Certified
  • Applications: Industrial and Commercial Feeder/Branch Circuit Protection in NF Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Phase: 1
  • AIC Rating: 65kA @ 480V
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Panel Type: NF panelboard
  • Wire Size: AWG 12 to 2/0 Aluminum, AWG 14 to 2/0 Copper
  • Weight: 2.47 lb


Product Identification
  • UPC: 785901128816
  • GTIN: 00785901128816
