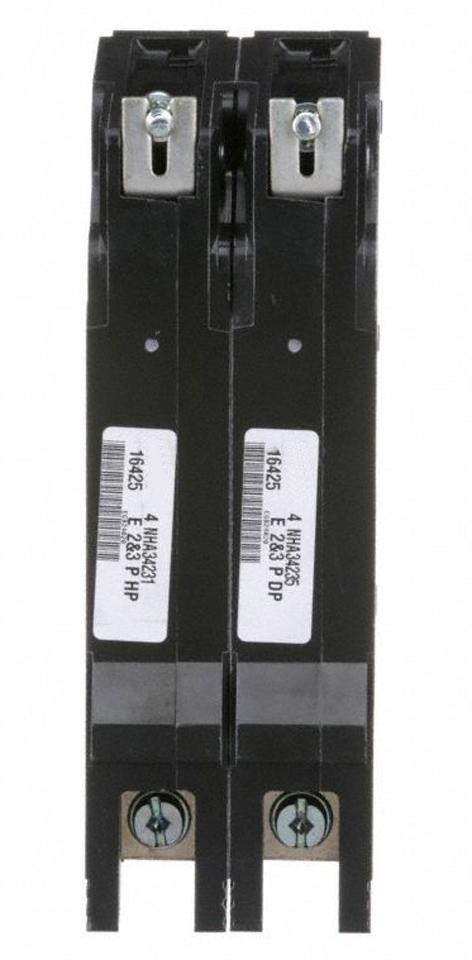

Square D EJB24050 - Molded Case Circuit Breaker 50A 480V 2-Pole

Price
Regular price $276.16
Regular price $1,241.00 Sale price $276.16
Save $964.84
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Square D EJB24050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 50A current rating and a 480V AC voltage rating, housed within a compact, durable frame measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.47 lb. The breaker is cULus listed and engineered for operation in ambient temperatures up to 40 °C, ensuring compliance with key industry safety standards. Its thermal-magnetic protection with long-time and instantaneous (LI) tripping functions makes it suitable for safeguarding feeders and branch circuits in NF-style panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 50A
  • Dimensions: 5.66 in H (143.76 mm) x 1.96 in W (49.78 mm) x 4.05 in D (102.87 mm)
  • Weight: 2.47 lb
  • Standards: cULus Certified
  • Applications: Industrial Feeder and Branch Circuit Protection in NF Panelboards
  • Phase: 1
  • Poles: 2
  • AIC Rating: 65kA @ 480V
  • Functions: LI (Long-Time and Instantaneous)
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Panel Type: NF panelboard
  • Temp Rating: 104 °F (40 °C)
  • Wire Size: AWG 12 to 2/0 Aluminum; AWG 14 to 2/0 Copper
  • Family: EJB Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901128809
  • GTIN: 00785901128809
