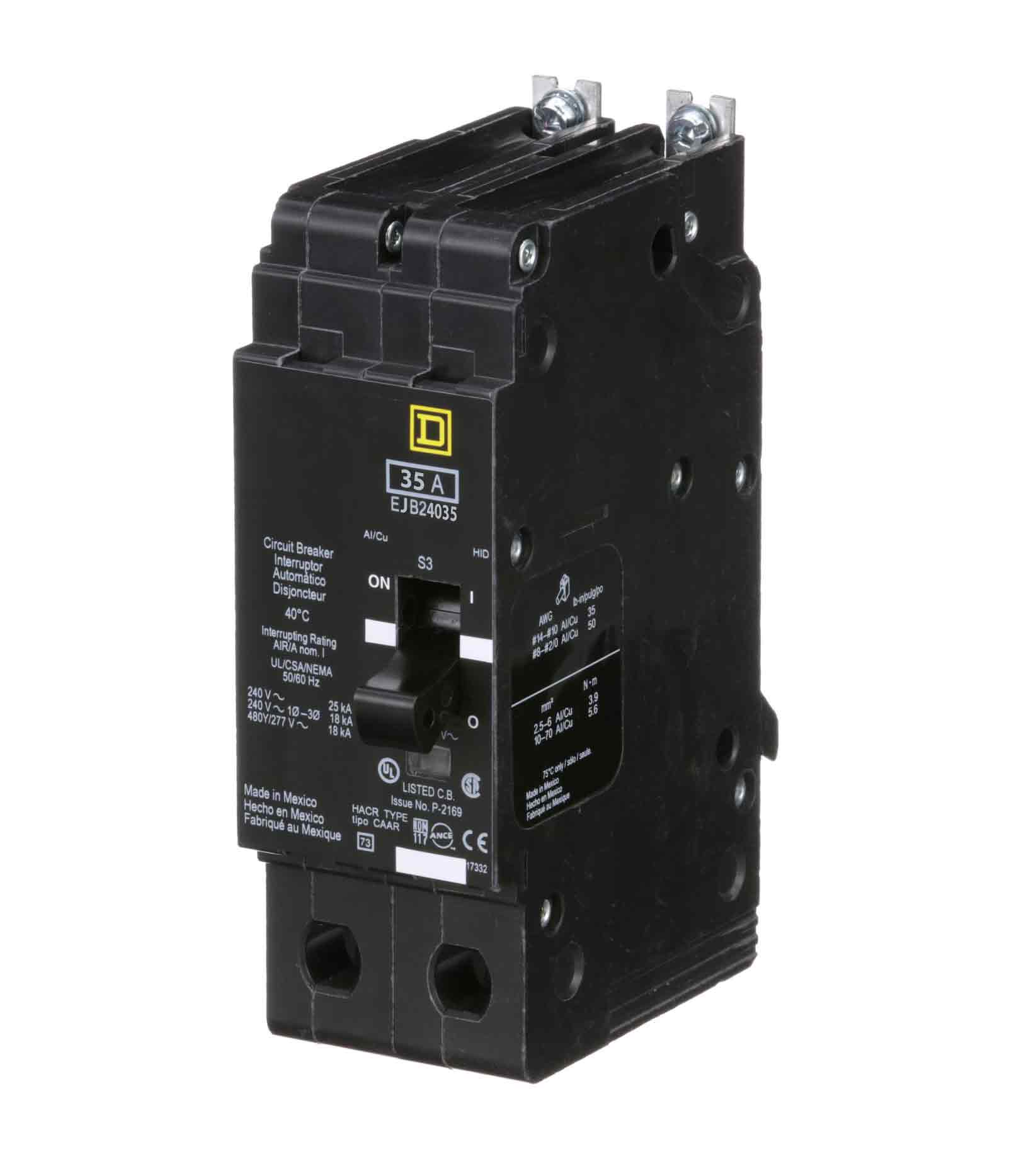

Square D EJB24035 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 35A current rating and a 480V AC voltage rating, housed within a compact, durable frame measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.47 lb. This thermal-magnetic, two-pole breaker is cULus listed and offers a 65kA interrupting capacity at 480V, ensuring compliance with stringent safety standards. Its bolt-on connection and compatibility with NF panelboards make it suitable for protecting feeder and branch circuits in a wide operating temperature range from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 480V AC
  • Current Rating: 35A
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Standards: cULus Certified
  • Applications: Industrial and Commercial Feeder/Branch Circuit Protection in NF Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Connection: Bolt-On
  • Phase: 1
  • AIC Rating: 65kA @ 480V
  • Protection: Thermal-Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Panel Type: NF Panelboard
  • Breaker Type: Molded Case
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 12 to 2/0 Aluminum, AWG 14 to 2/0 Copper
  • Weight: 2.47 lb
  • Family: EJB Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901128779
  • GTIN: 00785901128779
