Square D
Price
Save $708.53
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

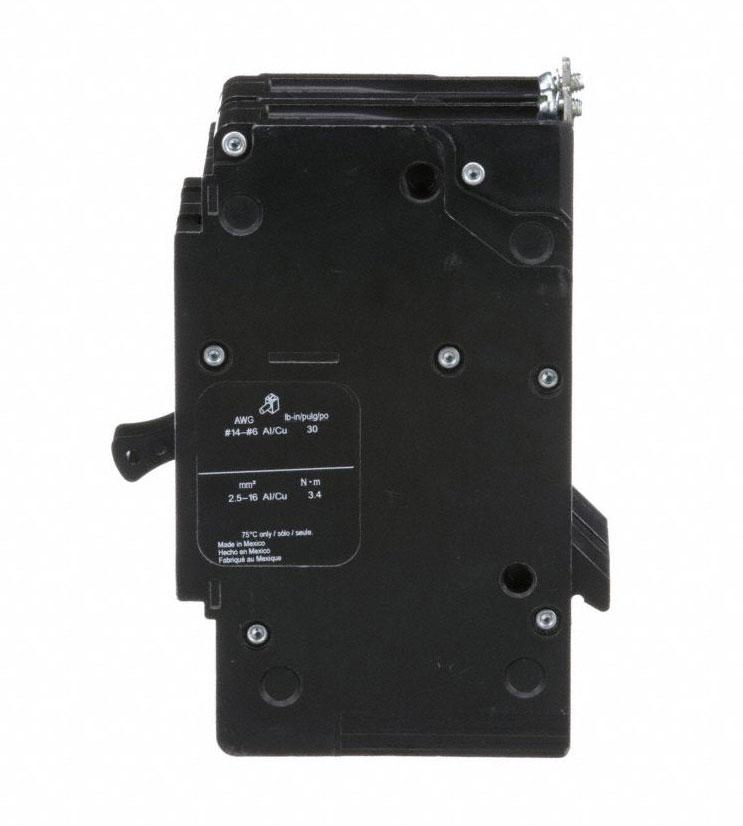

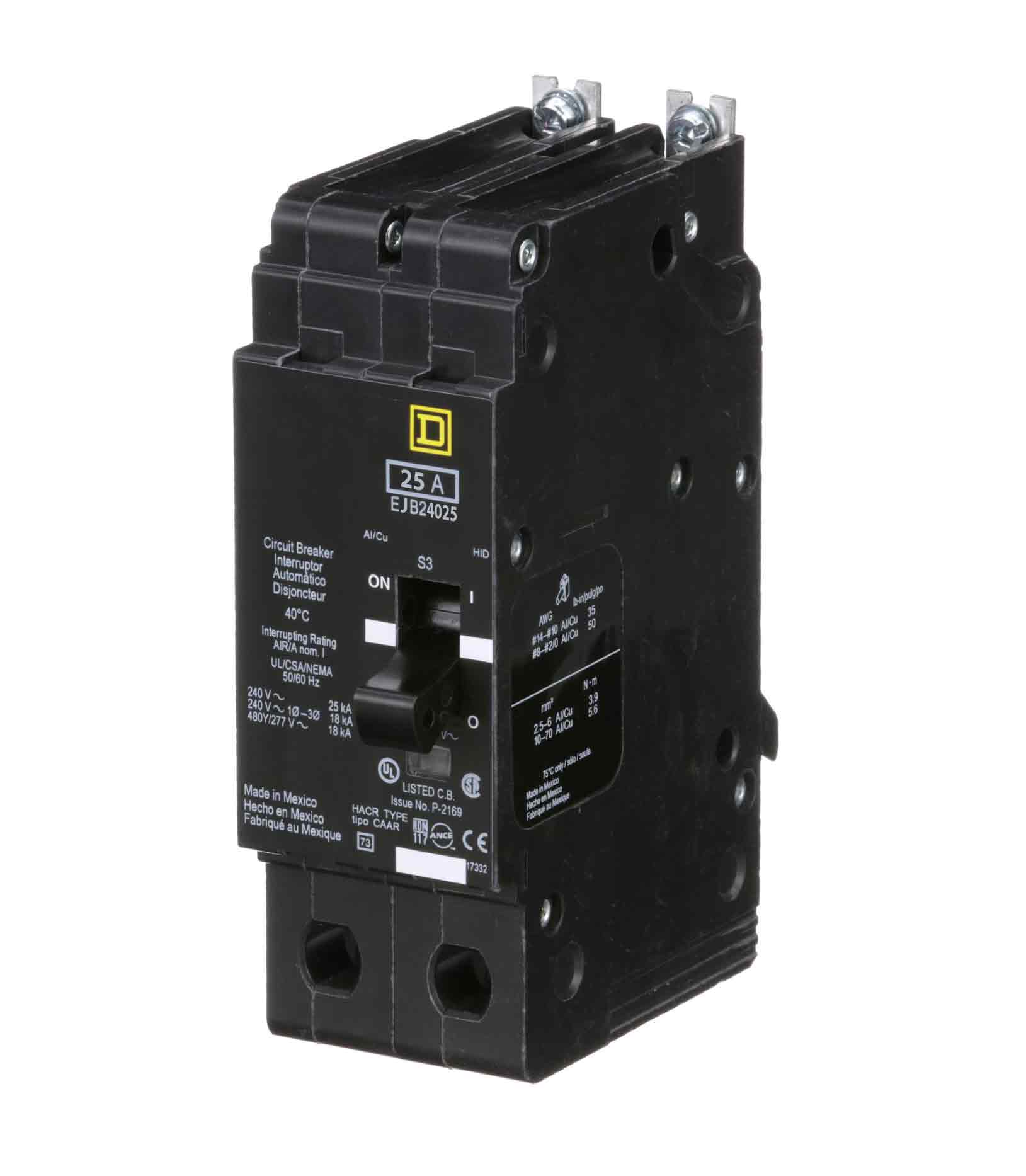

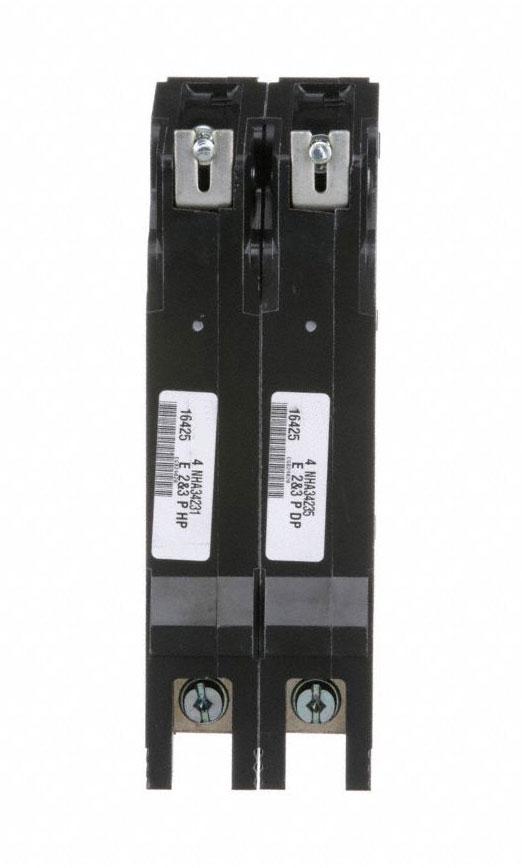

Square D EJB24025 is a molded case circuit breaker designed to provide reliable overcurrent protection for industrial and commercial electrical circuits. It features a 25A current rating and a 480V AC voltage rating, housed in a compact, bolt-on configuration measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.47 lb. The breaker is cULus certified and employs a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions for coordinated protection, capable of interrupting up to 65kA at 480V. It is engineered for operation in temperatures from -25°C to 70°C and is typically installed in NF panelboards to protect single-phase branch circuits using copper (AWG 14-6) or aluminum (AWG 12-6) conductors.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 25A
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Standards: cULus Certified
  • Applications: Industrial & Commercial Branch Circuit Protection in NF Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Poles: 2
  • Protection: Thermal-Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • AIC Rating: 65kA @ 480V
  • Connection: Bolt-On
  • Panel Type: NF Panelboard
  • Breaker Type: Molded Case
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 14 to AWG 6 (Copper), AWG 12 to AWG 6 (Aluminum)
  • Weight: 2.47 lb
  • Family: EJB Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901128755
  • GTIN: 00785901128755
