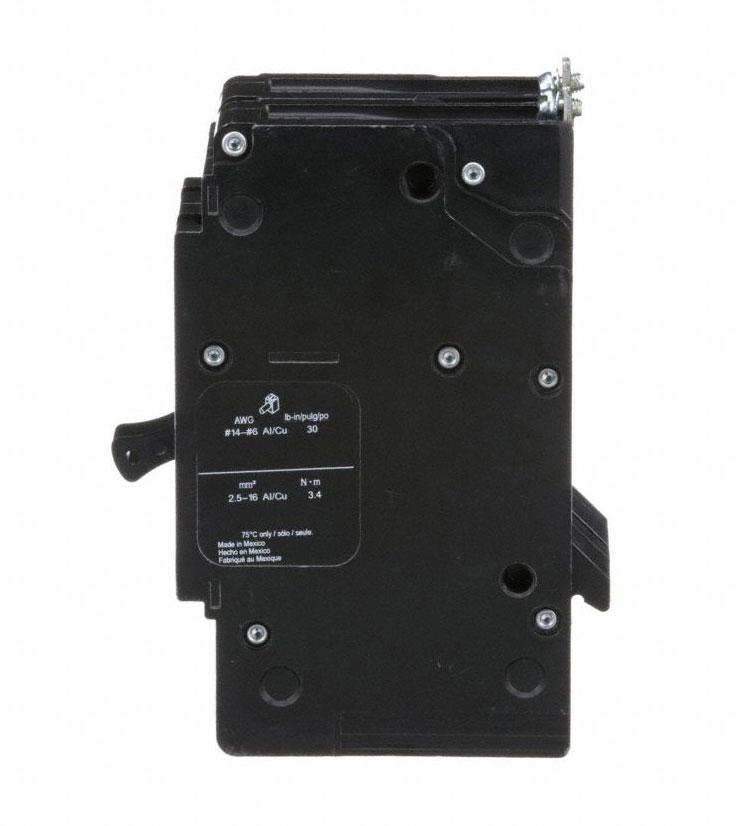

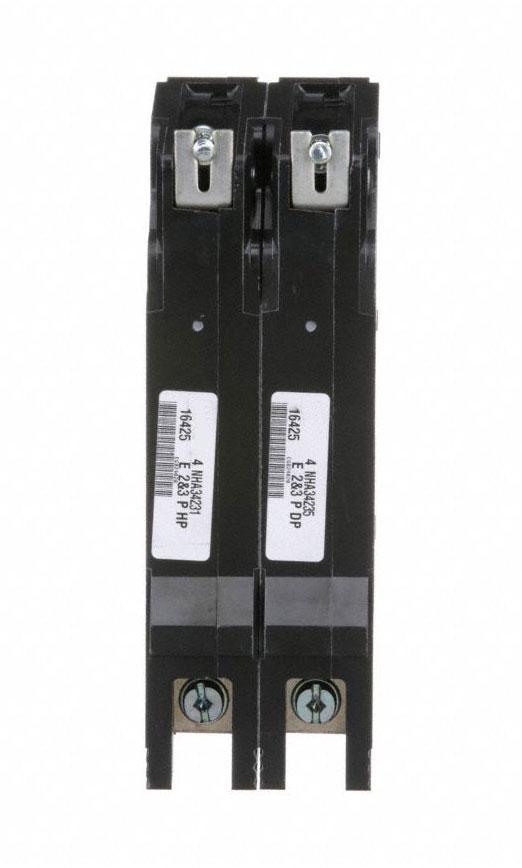

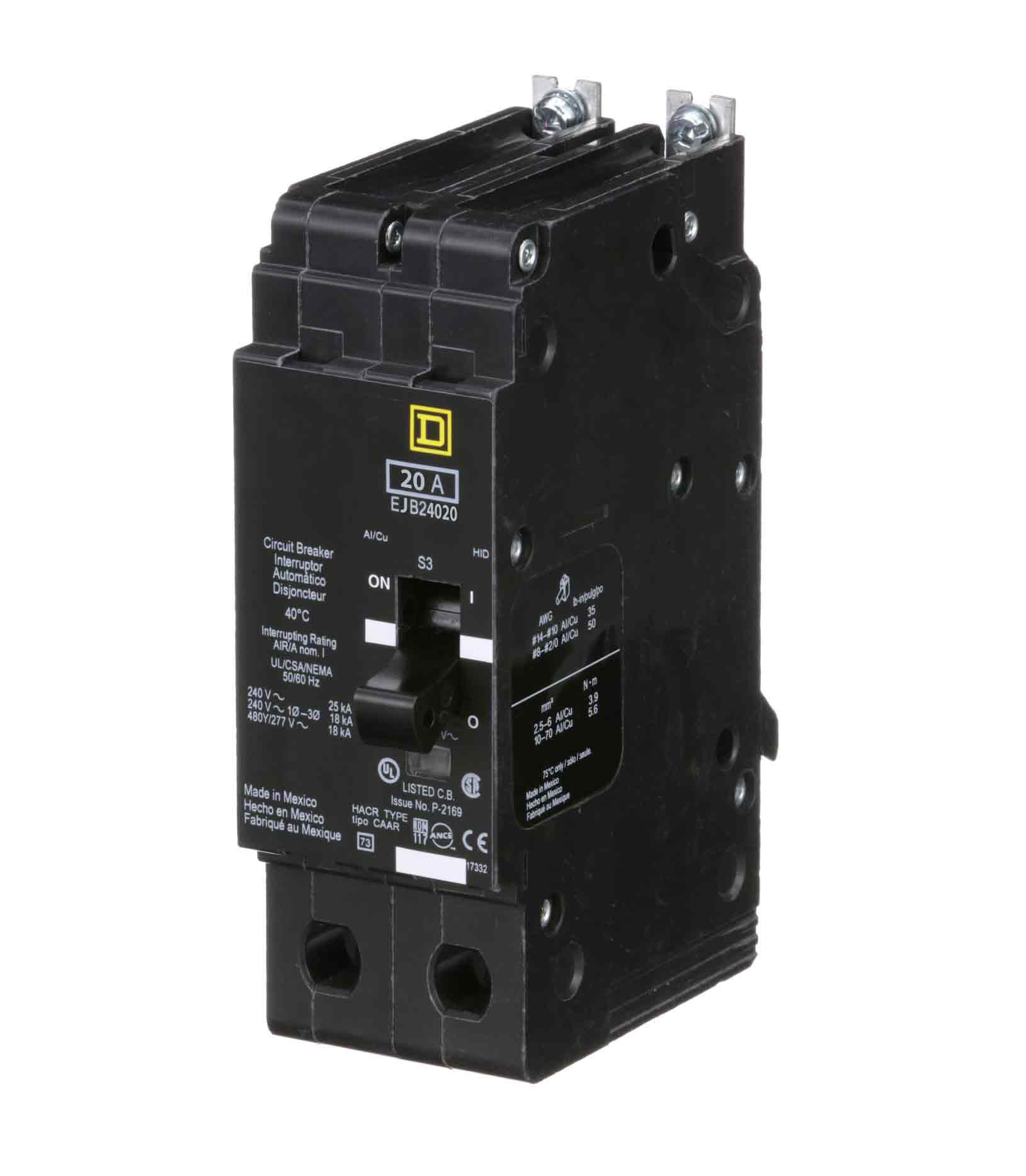

Square D EJB24020 - Molded Case Circuit Breaker 20A 480V 2-Pole

Price
Regular price $332.50
Regular price $1,241.00 Sale price $332.50
Save $908.50
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Square D EJB24020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 480V AC voltage rating, housed within a compact, durable frame measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.69 lb. The breaker is cULus certified and engineered for operation in temperatures from -25°C to 70°C, ensuring compliance with industry safety standards for use in NF panelboards. Its typical applications include protecting branch circuits and equipment in single-phase systems.

Key Features & Specifications
  • Type: EJB Series, Molded Case, Thermal Magnetic Protection with LI (Long-Time and Instantaneous) Trip Function
  • Voltage Rating: 480V AC
  • Current Rating: 20A
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Standards: cULus Certified
  • Applications: Branch circuit protection in industrial/commercial NF panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On Connection
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 65kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Panel Type: NF panelboard
  • Breaker Type: Molded Case
  • Wire Size: AWG 12 to 6 (Aluminum), AWG 14 to 6 (Copper)
  • Certification: cULus
  • Family: EJB Series
  • Country of Origin: Mexico
  • Weight: 2.69 lb


Product Identification
  • UPC: 785901335214
  • GTIN: 00785901335214
