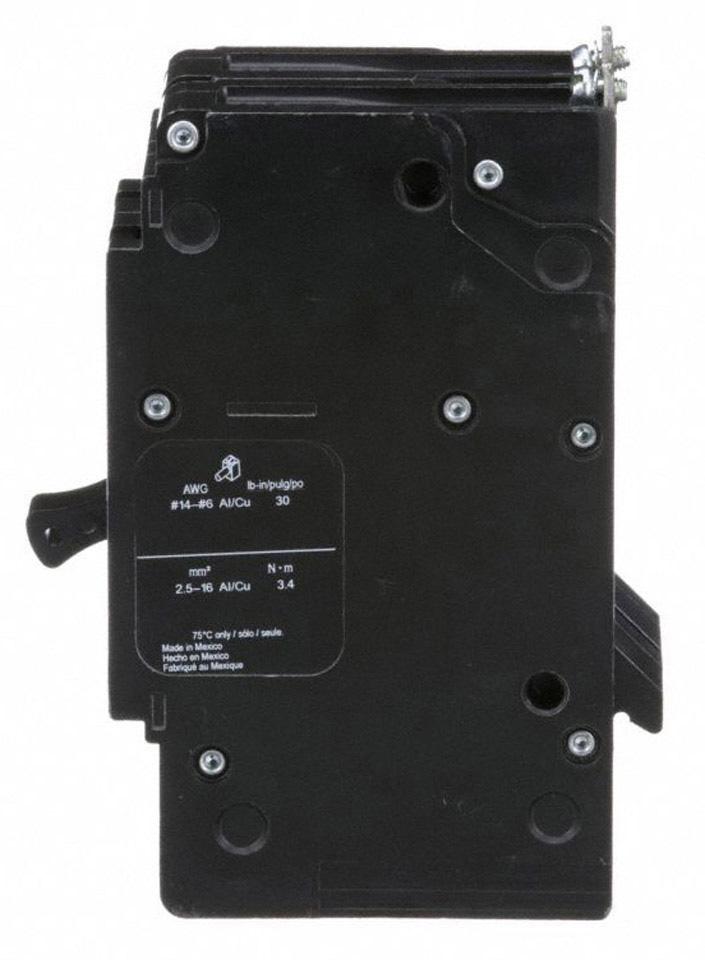

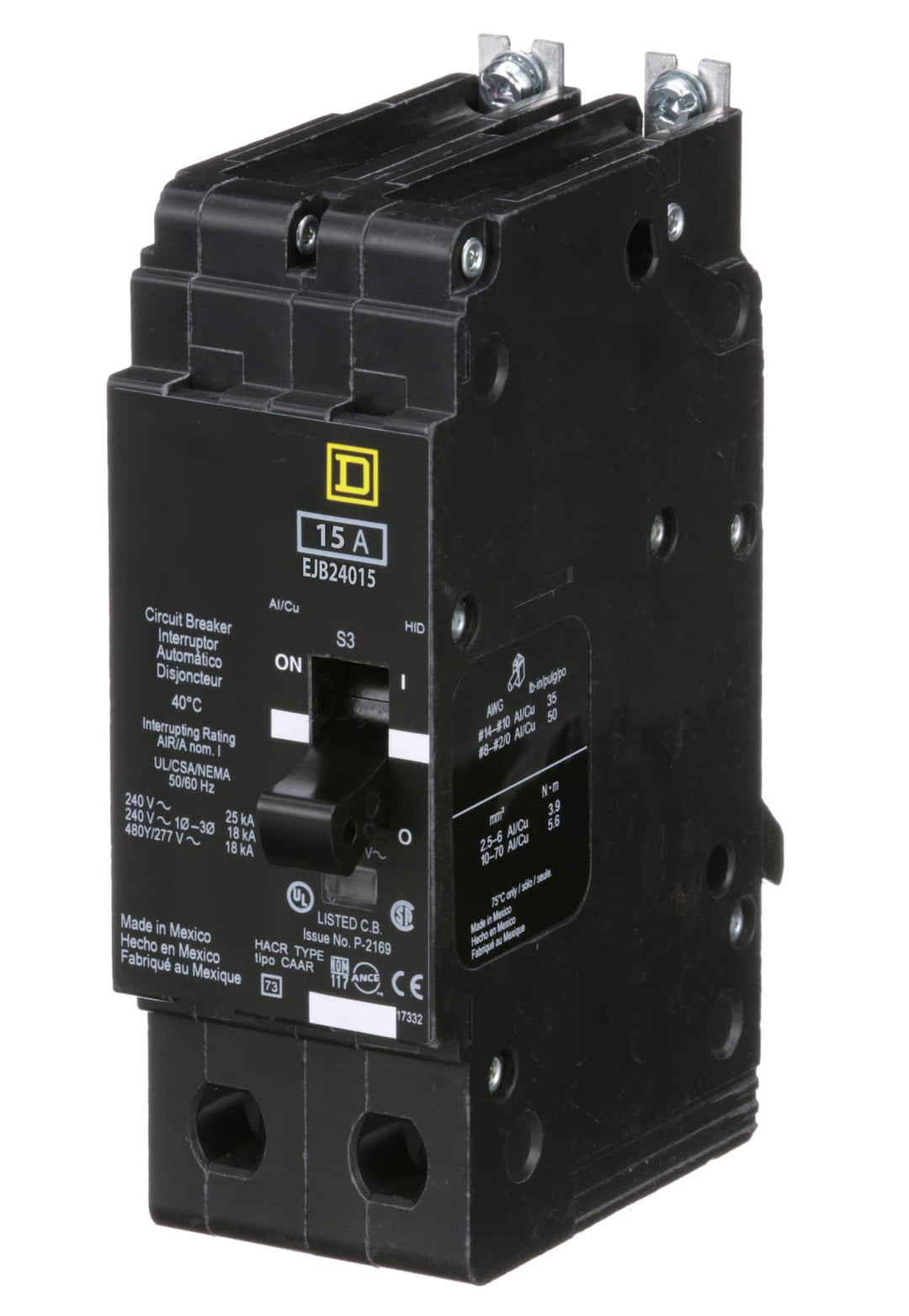

Square D EJB24015 - Molded Case Circuit Breaker 15A 2-Pole
Square D EJB24015 - Molded Case Circuit Breaker 15A 2-Pole
Square D EJB24015 - Molded Case Circuit Breaker 15A 2-Pole
Square D EJB24015 - Molded Case Circuit Breaker 15A 2-Pole
Square D EJB24015 - Molded Case Circuit Breaker 15A 2-Pole
Square D EJB24015 - Molded Case Circuit Breaker 15A 2-Pole
Square D EJB24015 - Molded Case Circuit Breaker 15A 2-Pole
Square D EJB24015 - Molded Case Circuit Breaker 15A 2-Pole

Square D EJB24015 - Molded Case Circuit Breaker 15A 2-Pole

Square D
Price
Save $939.65
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Square D EJB24015 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 15A current rating and a 480V AC voltage rating for single-phase applications, housed within a compact, bolt-on unit measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.47 lb. The breaker is cULus certified and operates within a temperature range of -25 to 70 °C, ensuring compliance with industry standards. Its thermal-magnetic protection with long-time and instantaneous (LI) trip functions makes it suitable for installation in NF panelboards, protecting conductors from AWG 14 to 6 copper or AWG 12 to 6 aluminum.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, EJB Series, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 15A
  • Dimensions: 5.66 in (143.76 mm) H x 1.96 in (49.78 mm) W x 4.05 in (102.87 mm) D
  • Standards: cULus Certified
  • Applications: NF Panelboards, Industrial & Commercial Distribution
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Phase: 1
  • AIC Rating: 65kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Wire Size: AWG 12 to 6 Aluminum, AWG 14 to 6 Copper
  • Panel Type: NF panelboard
  • Country of Origin: Mexico
  • Weight: 2.47 lb


Product Identification
  • UPC: 785901107347
  • GTIN: 00785901107347
