Square D
Price
Save $404.78
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

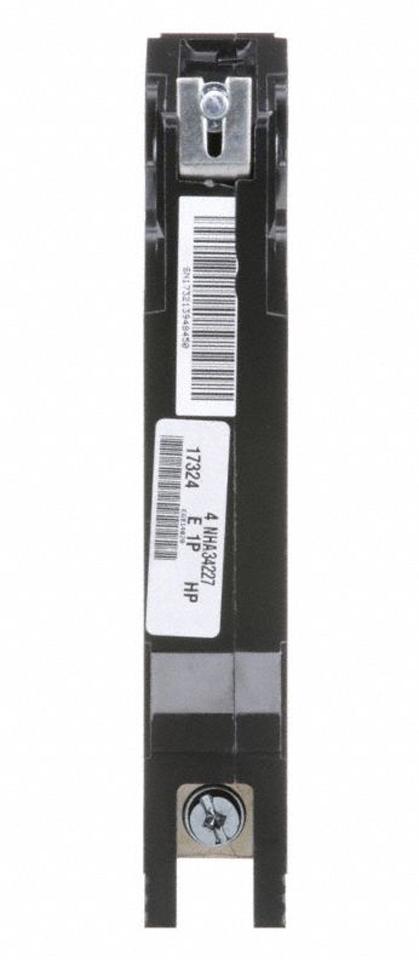

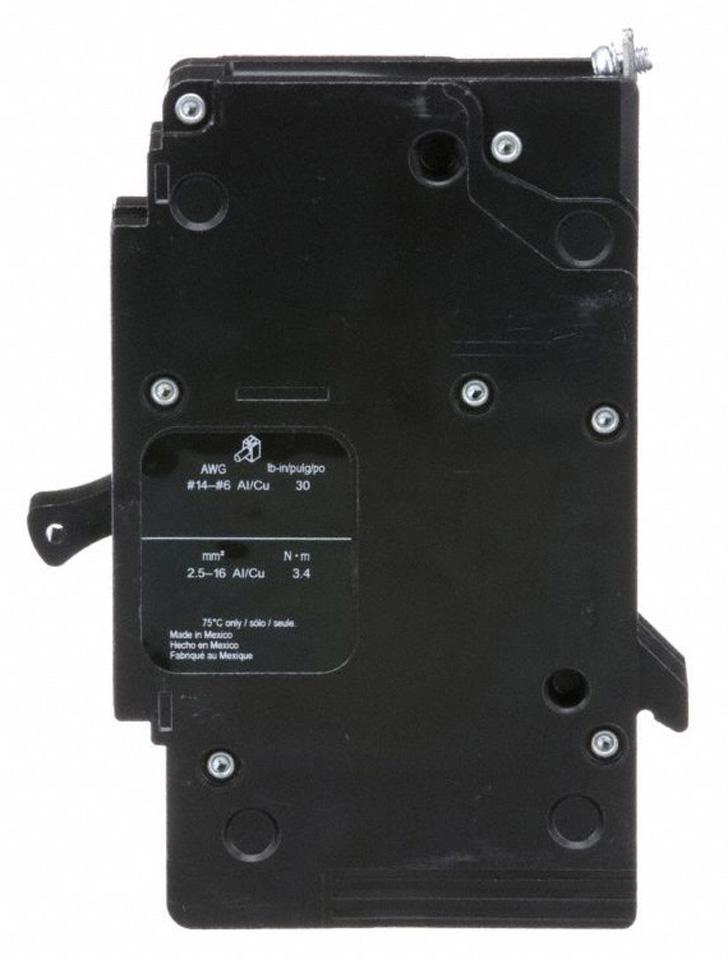

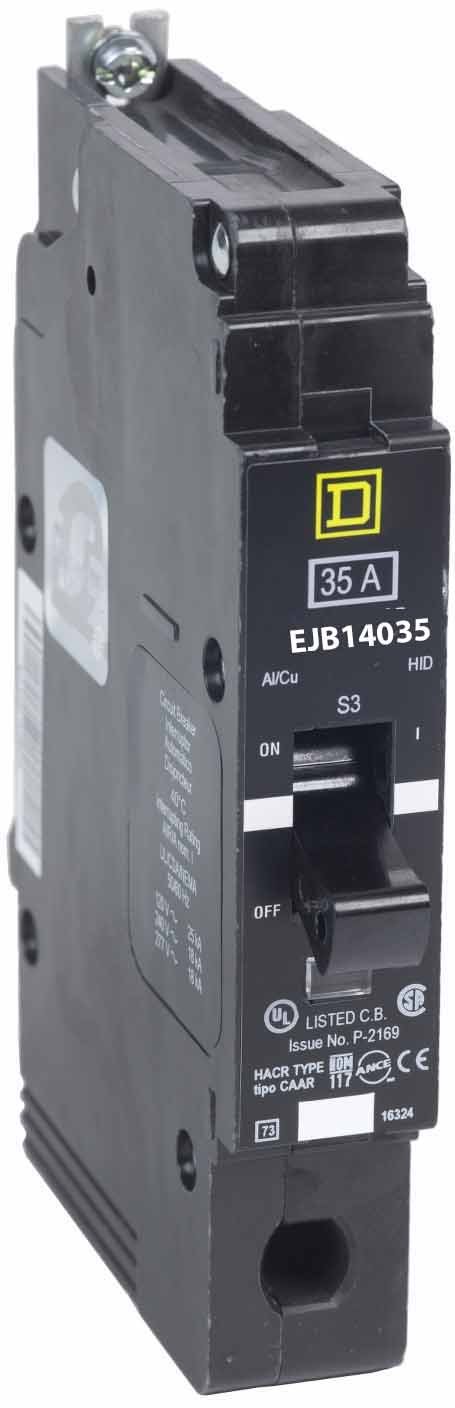

Square D EJB14035 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 35A current rating and a 277V AC voltage rating, housed within a compact, bolt-on unit measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.301 lb. This thermal magnetic breaker is cULus certified for safety and offers a 65kA interrupting capacity at 480V, ensuring compliance with industry standards for fault protection. Its single-pole design with LI (Long-Time and Instantaneous) trip functions makes it suitable for installation in NF panelboards, protecting circuits with wire sizes from AWG 14 to 2/0 copper or AWG 12 to 2/0 aluminum at an ambient temperature up to 40°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 277V AC
  • Current Rating: 35A
  • Dimensions: 5.66 in H (143.76 mm) x 0.98 in W (24.89 mm) x 4.05 in D (102.87 mm)
  • Weight: 1.301 lb
  • Standards: cULus Certified
  • Applications: NF Panelboards, Industrial & Commercial Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Single Unit
  • Temp Rating: 104 °F (40 °C)
  • Shipping Dimensions: As Product Dimensions
  • Phase: 1
  • Voltage: 277V
  • Amperage: 35A
  • AIC rating: 65kA @ 480V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: EJB Series
  • Trip Type: Thermal Magnetic
  • Panel Type: NF panelboard
  • Breaker Type: Molded Case
  • Wire Size: AWG 12...AWG 2/0 aluminum / AWG 14...AWG 2/0 copper
  • Certification: cULus
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Bolt-On
  • Standards: cULus
  • Compatible Frames: NF Panelboard
  • Installation Type: Panel Mount
  • Manufacturer: Schneider Electric
  • Family: EJB Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 78590113053
  • GTIN: 00785901130536
