Square D
Price
Save $269.04
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

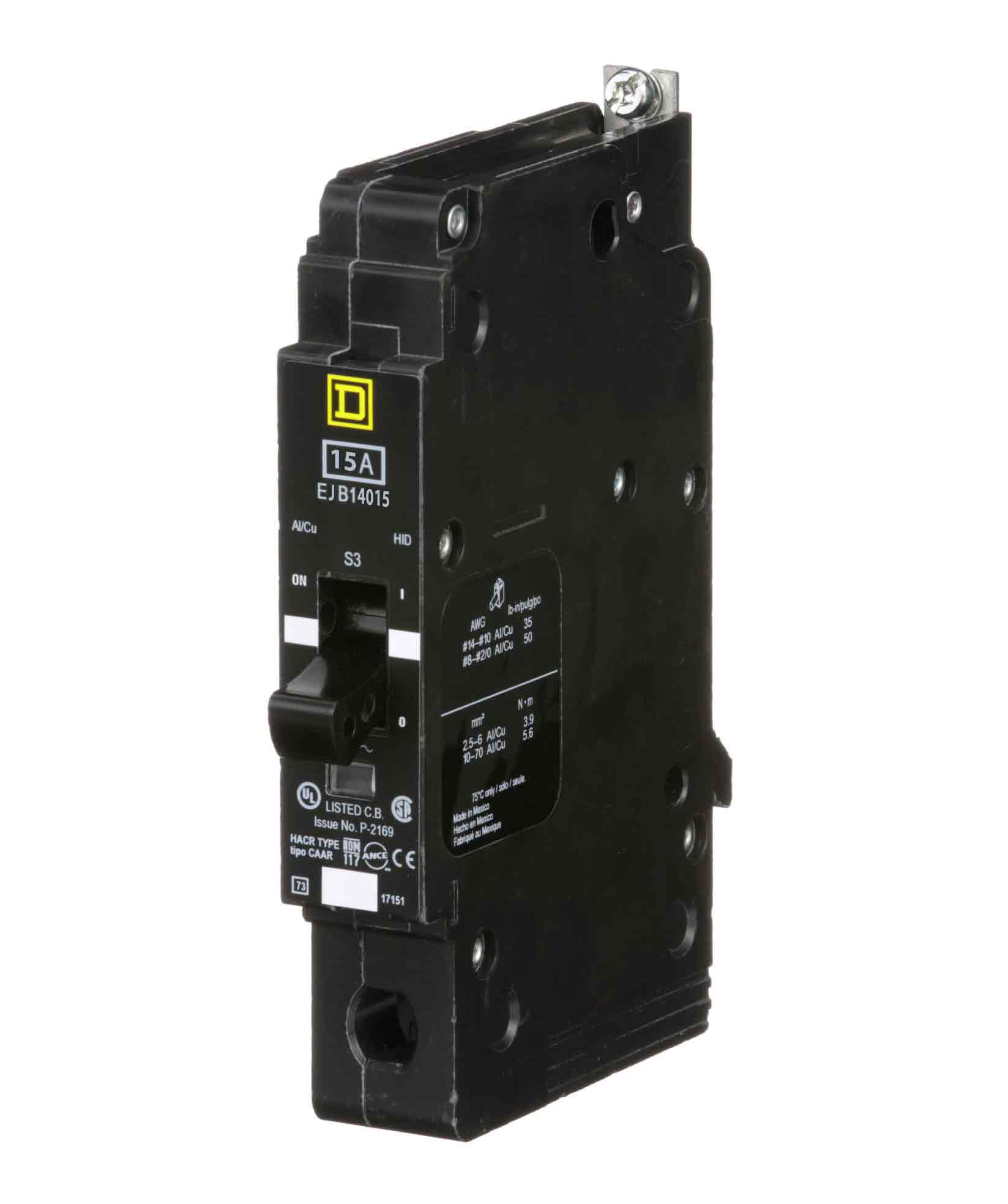

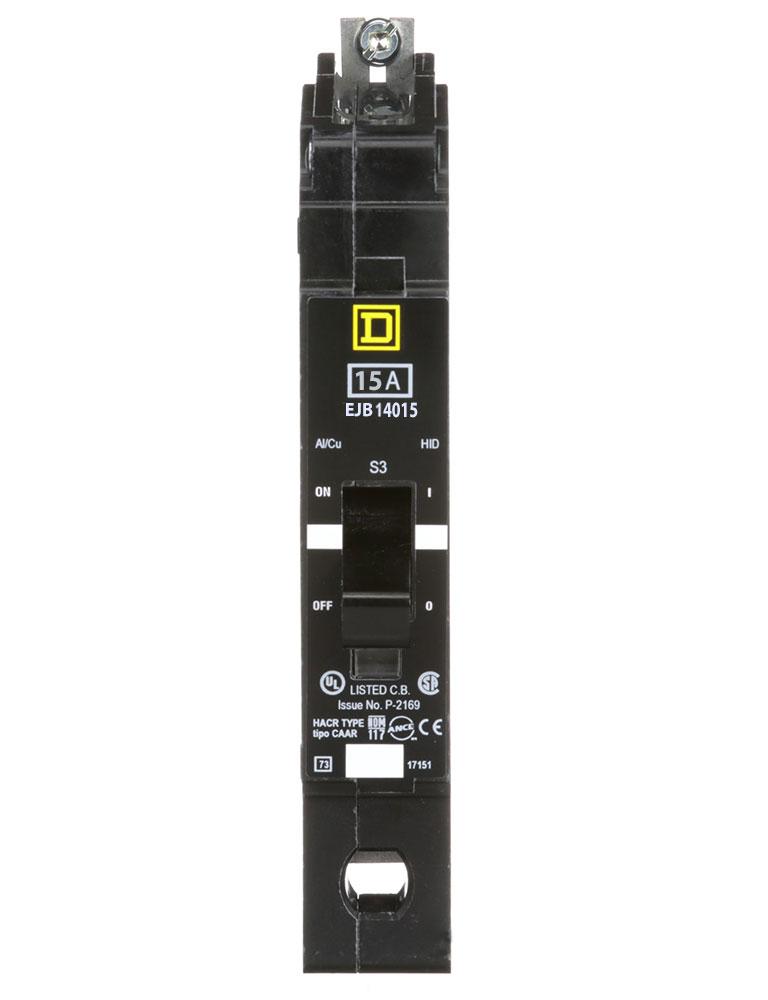

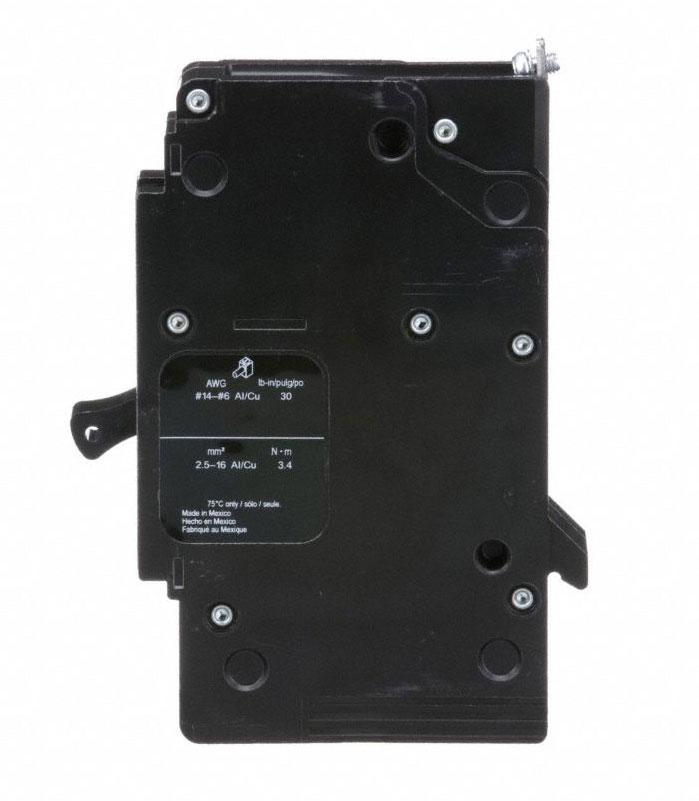

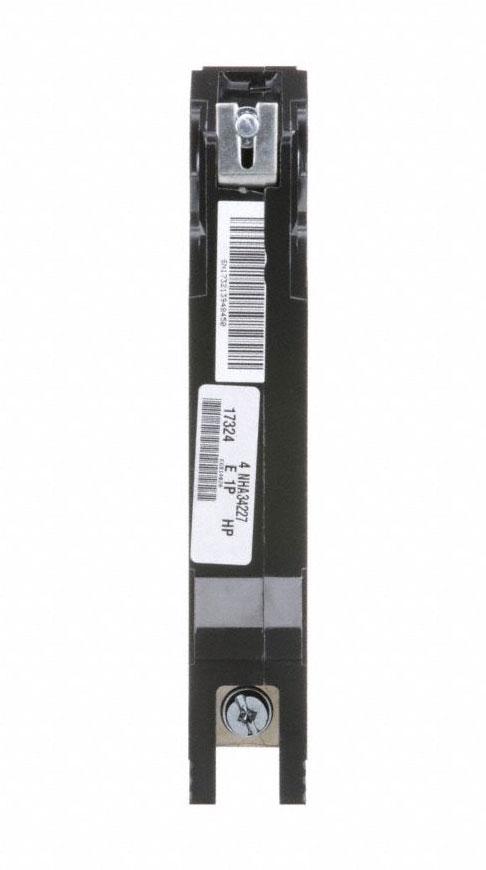

Square D EJB14015 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 15A current rating and a 277V voltage rating, suitable for single-phase applications. The breaker is constructed with a compact bolt-on connection, measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 2.094 lb, and is built to operate in temperatures from -25°C to 70°C. It complies with cULus standards and offers a high interrupting capacity of 65kA at 480V. This thermal magnetic breaker is typically applied in NF panelboards for protecting circuits with copper or aluminum conductors from size AWG 14 to AWG 6.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, EJB Series
  • Voltage Rating: 277V AC
  • Current Rating: 15A
  • Dimensions: 143.76 mm H x 24.89 mm W x 102.87 mm D (5.66 in x 0.98 in x 4.05 in)
  • Weight: 2.094 lb
  • Standards: cULus Certified
  • Applications: Overcurrent protection in NF panelboards for industrial/commercial single-phase systems
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 65kA @ 480V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Panel Type: NF panelboard
  • Breaker Type: Molded Case
  • Wire Size: AWG 14 to AWG 6, AWG 12 to AWG 6, Cu/Al
  • Certification: cULus


Product Identification
  • UPC: 785901130499
  • GTIN: 00785901130499
