Cutler Hammer
Price
Save $1,011.12
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

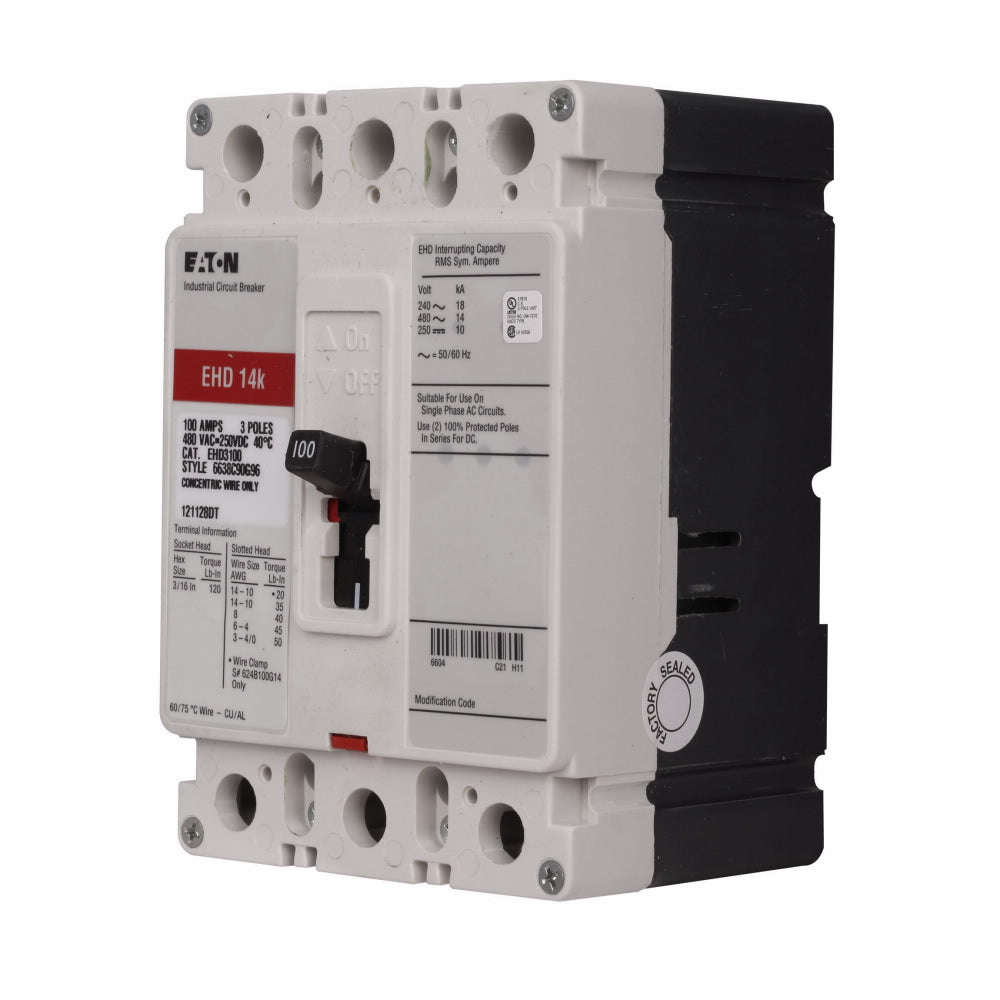

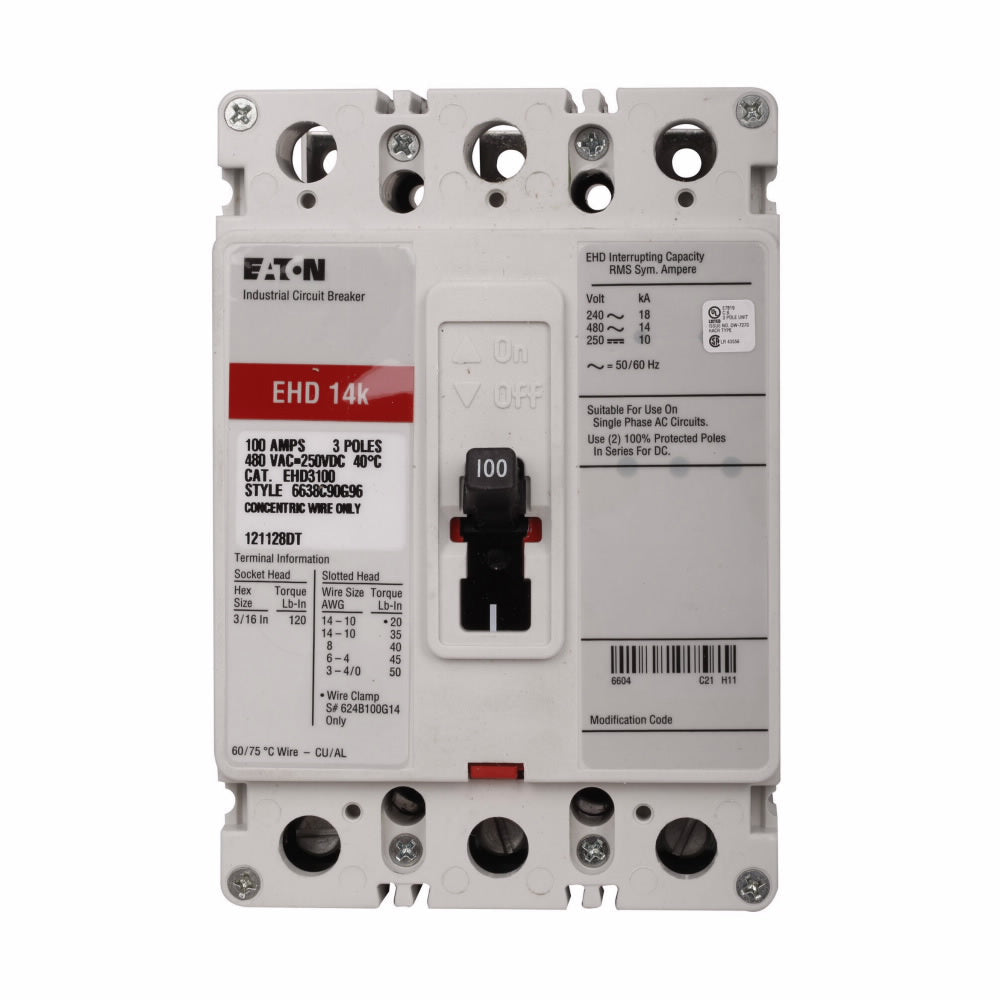

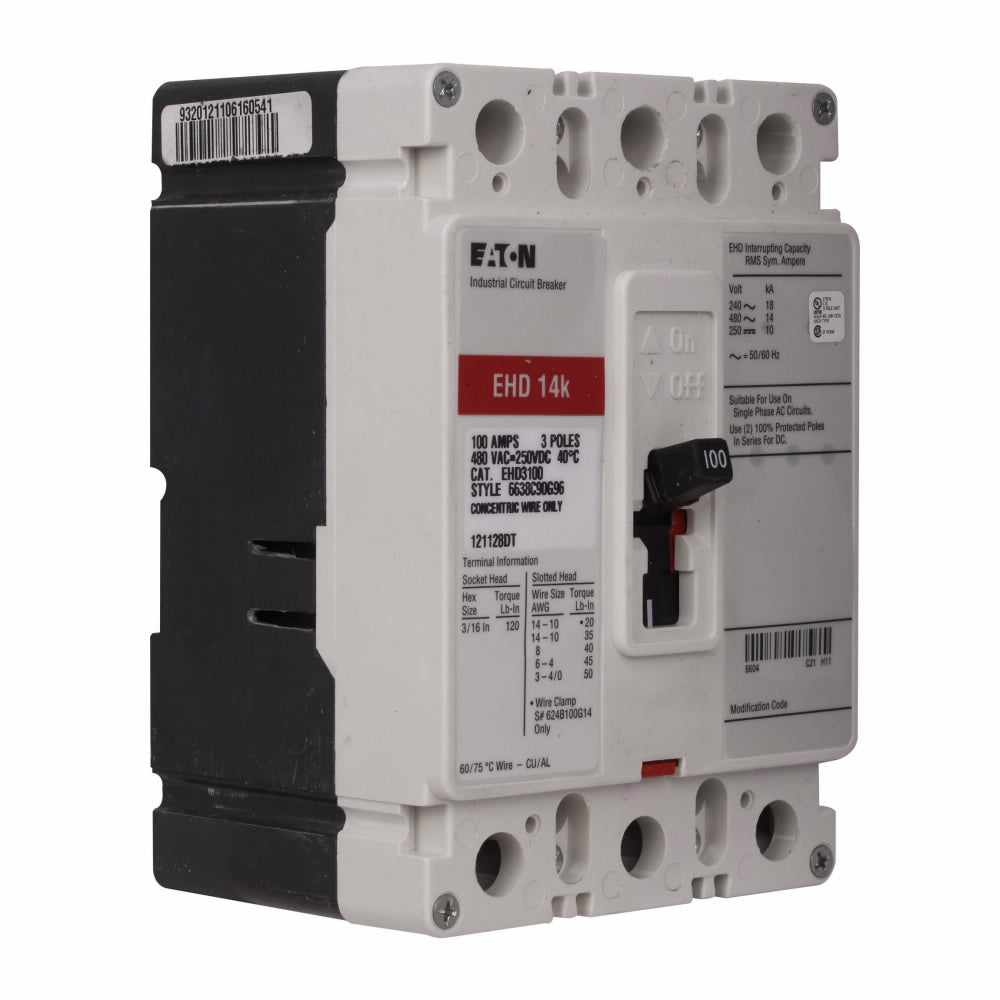

Cutler Hammer EHD3100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power systems. It features a 100A current rating and a 480V AC voltage rating, housed within a compact, durable frame measuring 3.38 in (D) x 6 in (H) x 4.13 in (W) and weighing 4.5 lb. The breaker is constructed with thermal-magnetic protection for both long-time delay and instantaneous tripping functions, ensuring compliance with UL, CSA, and IEC standards. Its 14kA interrupting rating at 480V and bolt-on connection with load-side lugs make it suitable for installation in motor control centers, switchboards, and enclosed controls from major manufacturers like Allen-Bradley and Rockwell Automation.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Dimensions: 3.38 in (Depth) x 6 in (Height) x 4.13 in (Width)
  • Weight: 4.5 lb
  • Standards & Certification: UL Listed, CSA Certified, IEC Rated
  • Applications: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse Panel
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -4°F to 158°F (-20°C to 70°C)
  • Phase: 3
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On, Load Side Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 100A/F
  • Breaker Type: Standard
  • Phase Connection: ABC
  • MCM Size / Wire Range: 14 AWG to 1/0 AWG
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679317204
  • GTIN: 00786679317204
