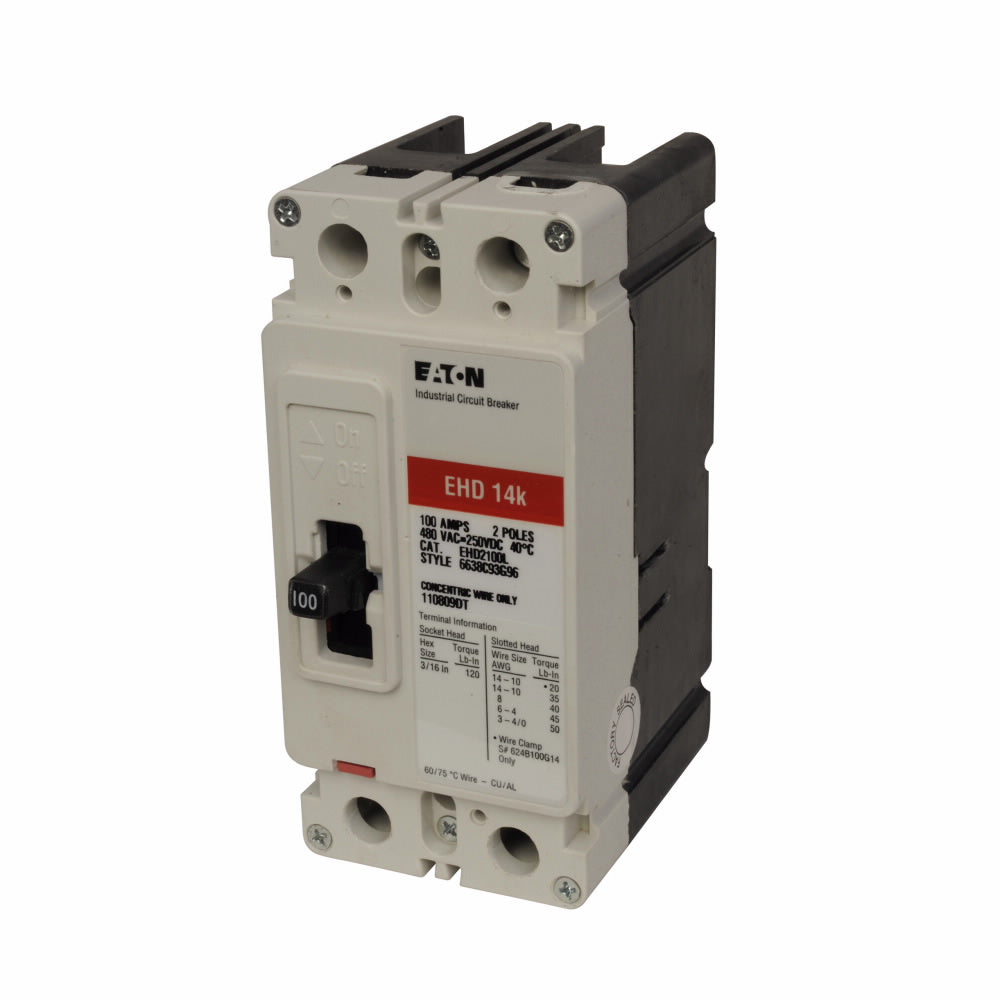

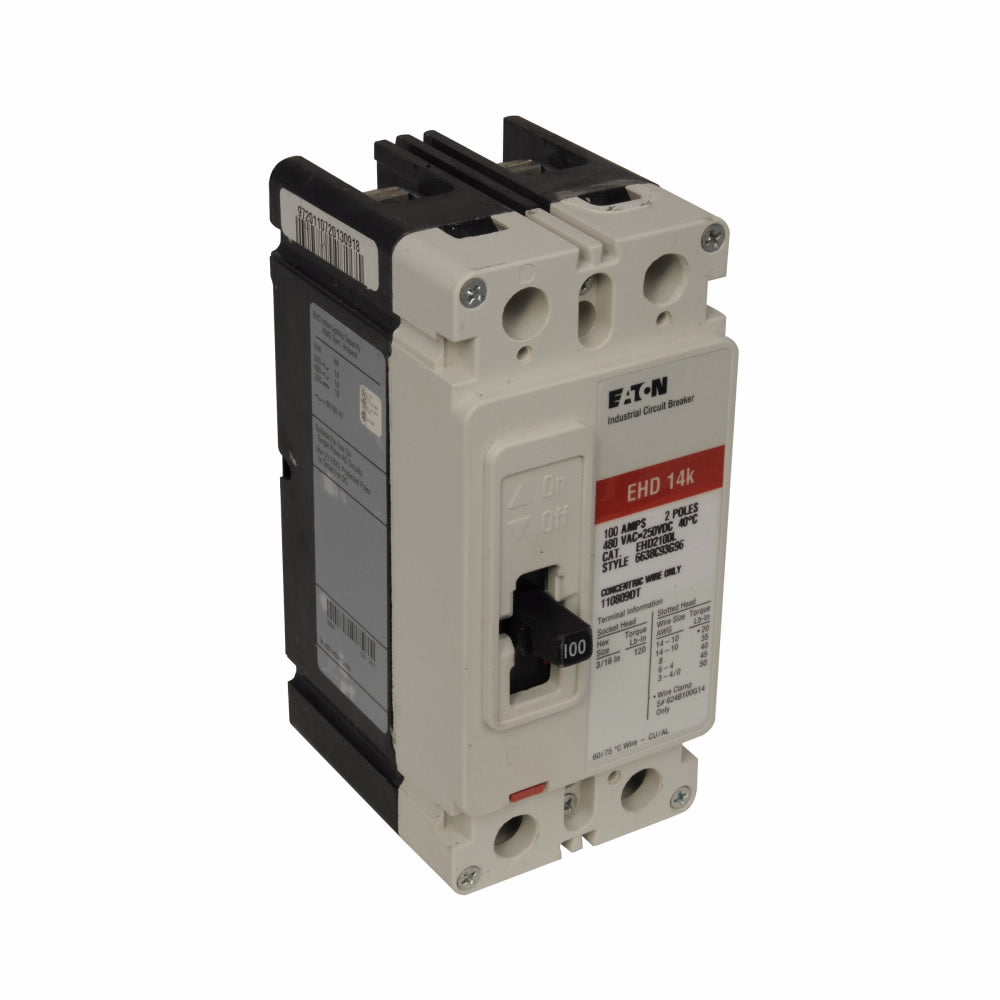

Westinghouse EHD2060 - Molded Case Circuit Breaker 60A 480V 2-Pole
Westinghouse EHD2060 - Molded Case Circuit Breaker 60A 480V 2-Pole
Westinghouse EHD2060 - Molded Case Circuit Breaker 60A 480V 2-Pole
Westinghouse EHD2060 - Molded Case Circuit Breaker 60A 480V 2-Pole

Westinghouse EHD2060 - Molded Case Circuit Breaker 60A 480V 2-Pole

Eaton
Price
Save $556.28
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price
Westinghouse EHD2060 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial electrical systems. It features a 60A current rating and a 480V AC voltage rating, housed within a compact, durable frame measuring 3.38 in x 6 in x 2.75 in and weighing 3 lb. This thermal magnetic breaker is CSA Certified, IEC Rated, and UL Listed, ensuring compliance with key industry standards for safety and performance. Its typical applications include integration into motor control centers (MCCs), switchboards, and enclosed control panels from major manufacturers like Allen-Bradley, Eaton, and Rockwell Automation.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic Protection, Standard Breaker Type, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 60A
  • Dimensions: 3.38 in (D) x 6 in (H) x 2.75 in (W)
  • Standards: CSA Certified, IEC Rated, UL Listed
  • Applications: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse Panel
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Shipping Dimensions: 3.38 in x 6 in x 2.75 in
  • Phase: 1
  • Voltage: 480V
  • Amperage: 60A
  • AIC rating: 14kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 100A/F
  • Panel Type: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 1/0 AWG
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Terminal Connection: Load Side Lug
  • Frequency Rating: 50/60 Hz
  • Phase Connection: ABC
  • Compatible Frames: Series C Family
  • Item QTY: 1
  • Breaker Frame: 100A
  • Operating Temperature Maximum Celsius: 70 °C
  • Weight: 3 lb


Product Identification
  • UPC: 786679317488
  • GTIN: 00786679317488
