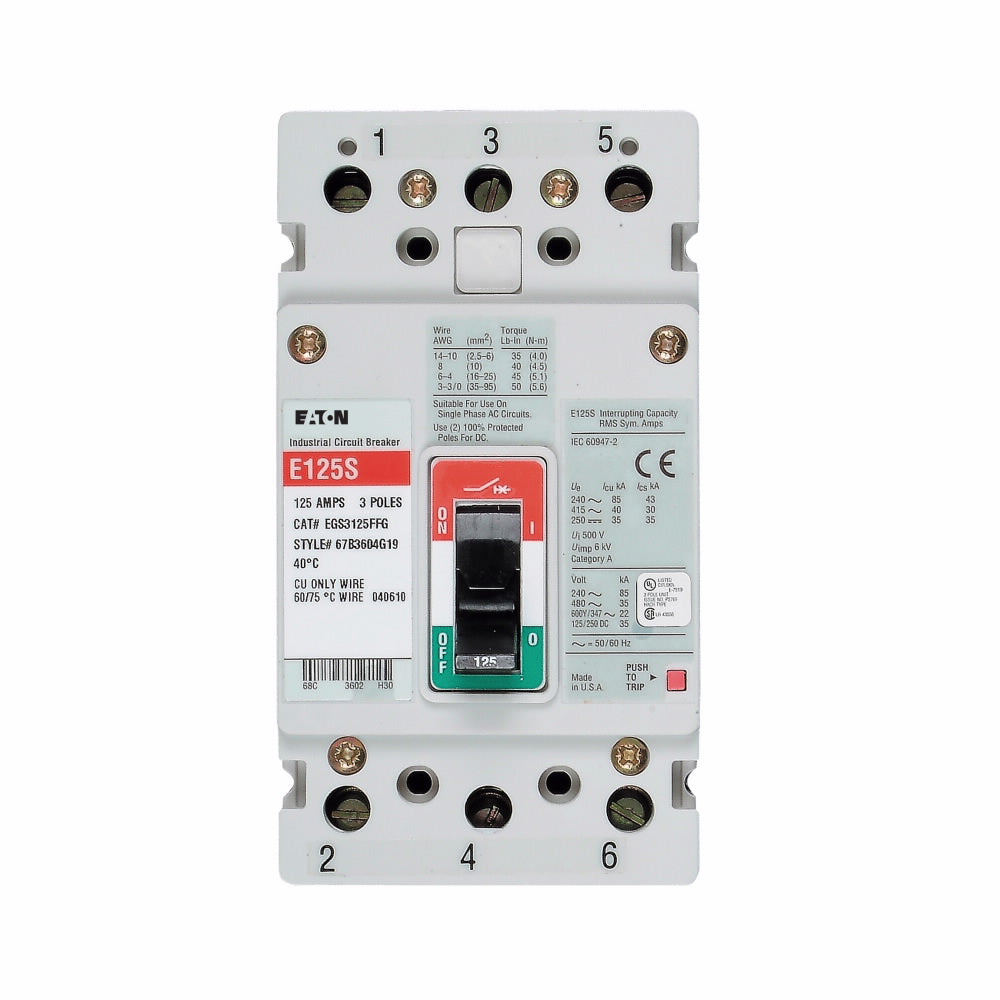

Cutler Hammer EGS3125FFG - 3-Pole Molded Case Breaker, 125A 600V
Cutler Hammer EGS3125FFG - 3-Pole Molded Case Breaker, 125A 600V

Cutler Hammer EGS3125FFG - 3-Pole Molded Case Breaker, 125A 600V

Cutler Hammer
Price
Save $2,381.35
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
The Cutler Hammer EGS3125FFG is a three-pole molded case circuit breaker designed to provide reliable overcurrent protection for three-phase industrial power distribution systems. It features a 125A current rating and a 600V voltage rating, housed in a compact, durable frame measuring 2.99" x 5.5" x 3" (LxHxW) and weighing 3 lb. This thermal magnetic breaker, with its LI (Long-time and Instantaneous) trip functions and 35kA interrupting capacity at 480V, complies with key industry standards including UL 489, CSA, IEC, and carries the CE Mark. Its feed-thru connection design makes it suitable for protecting feeders, branch circuits, and motor applications in commercial and industrial panels.

Key Features & Specifications
  • Type: EGS Series G, 3-Pole Molded Case Circuit Breaker, Thermal Magnetic Protection with LI (Long-time & Instantaneous) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Dimensions: 2.99 in (Depth) x 5.5 in (Height) x 3 in (Width)
  • Standards: UL Listed, CSA Certified, IEC Rated, UL 489, CE Marked
  • Applications: Industrial power distribution, feeder and branch circuit protection, motor circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 125A
  • AIC Rating: 35kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: Series G
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Mounting: Panel Mount
  • Certification: UL Listed, CSA Certified, IEC Rated, CE Marked
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Standards: UL 489
  • Installation Type: Fixed
  • Breaker Frame: Series G
  • Country of Origin: Dominican Republic
  • Weight: 3 lb


Product Identification
  • UPC: 782114877241
  • GTIN: 00782114877241
