Cutler Hammer EGS3125FFB - Molded Case Circuit Breaker 125A 600V 3P
Cutler Hammer EGS3125FFB - Molded Case Circuit Breaker 125A 600V 3P
Cutler Hammer EGS3125FFB - Molded Case Circuit Breaker 125A 600V 3P
Cutler Hammer EGS3125FFB - Molded Case Circuit Breaker 125A 600V 3P
Cutler Hammer EGS3125FFB - Molded Case Circuit Breaker 125A 600V 3P
Cutler Hammer EGS3125FFB - Molded Case Circuit Breaker 125A 600V 3P

Cutler Hammer EGS3125FFB - Molded Case Circuit Breaker 125A 600V 3P

Cutler Hammer
Price
Save $1,693.18
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

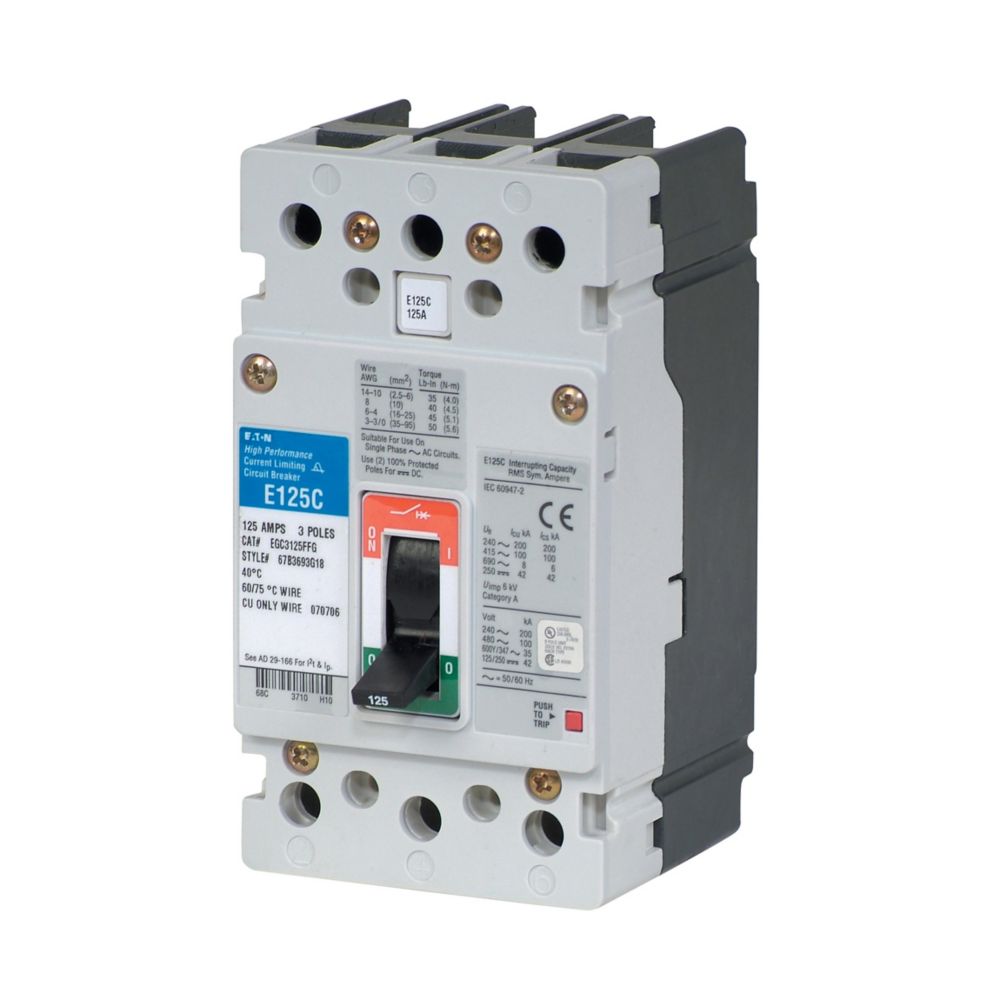

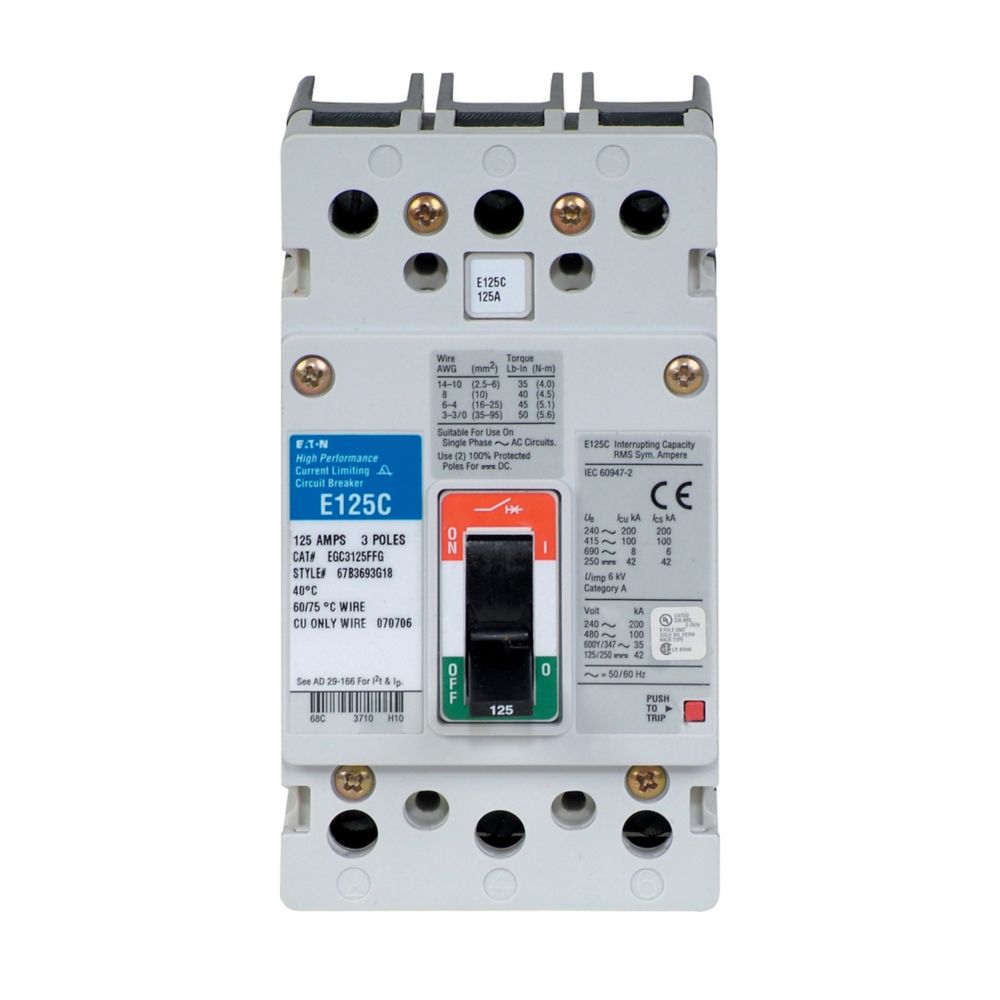

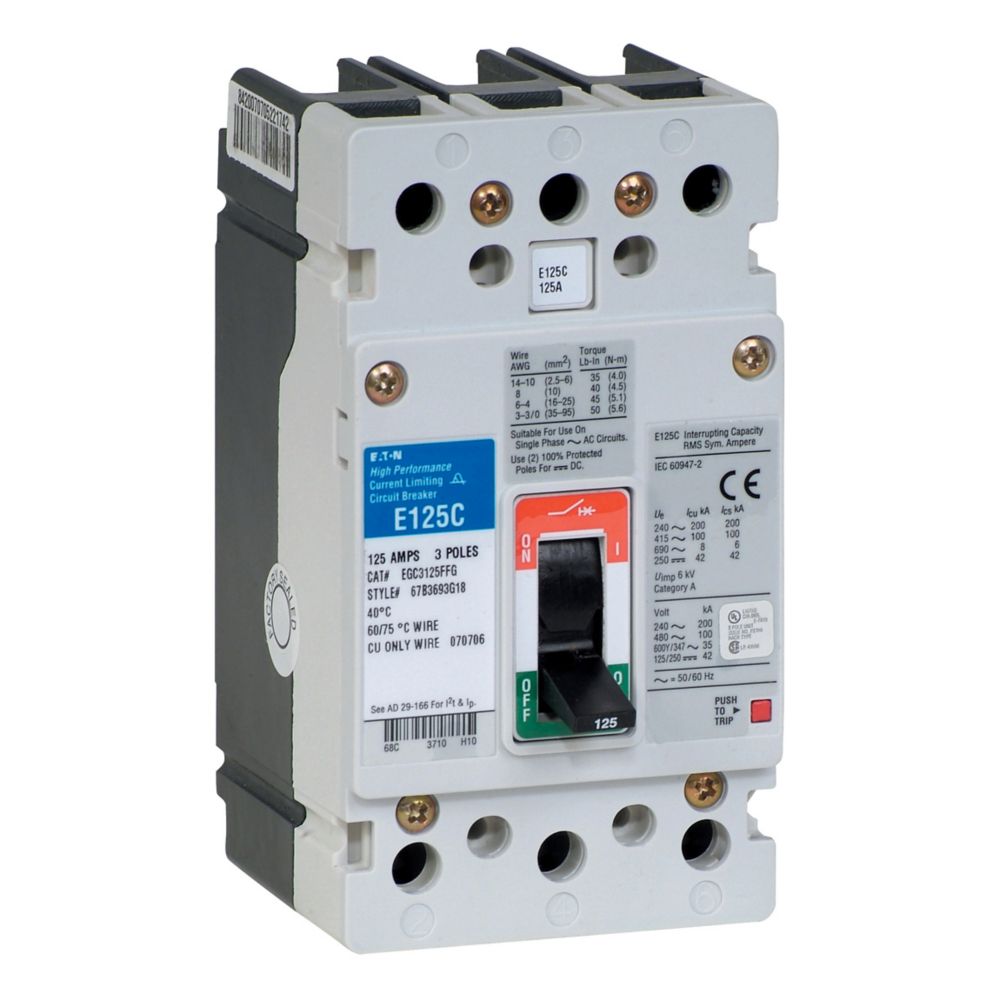

Cutler Hammer EGS3125FFB is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 125A current rating and a 600V voltage rating, housed in a compact, bolt-on configuration measuring 2.99 in (L) x 5.5 in (H) x 3 in (W) and weighing 3 lb. The breaker is certified to UL 489, CSA, IEC, and CE standards, ensuring compliance with rigorous international safety requirements for industrial applications such as panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: EGS Series G, Molded Case, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Dimensions: 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
  • Weight: 3 lb
  • Standards: UL Listed (UL 489), CSA Certified, IEC Rated, CE Marked
  • Applications: Industrial Power Distribution, Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 35kA at 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: Series G
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786685382234
  • GTIN: 00786685382234
