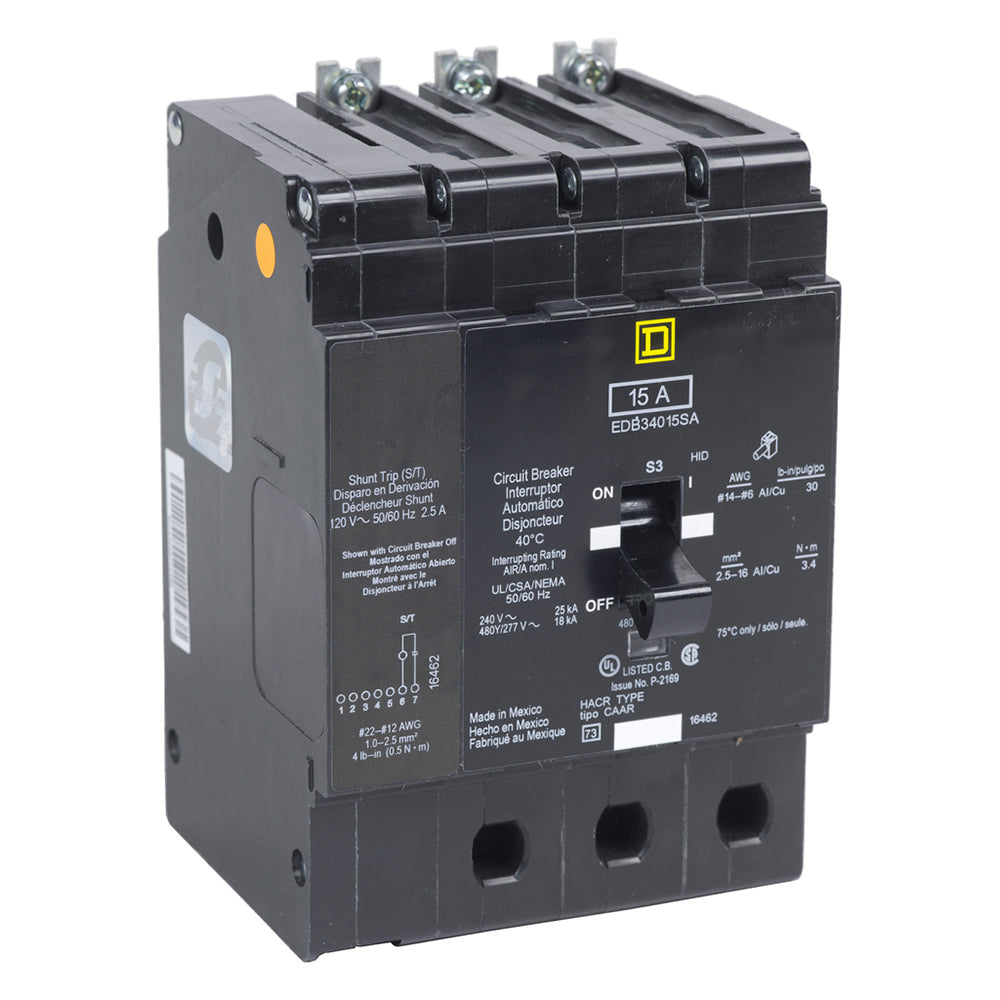

Square D EGB34015SA - Molded Case Circuit Breaker 15A 480V
Square D EGB34015SA - Molded Case Circuit Breaker 15A 480V

Square D EGB34015SA - Molded Case Circuit Breaker 15A 480V

Square D
Price
Save $516.59
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D EGB34015SA is a 3-pole molded case circuit breaker designed for overcurrent protection in industrial power distribution systems. It is rated for 480V AC, 15A, with a 35kA interrupting capacity at 480V, and provides LI (Long-Time and Instantaneous) protection functions. This bolt-on unit features thermal-magnetic protection, measures 5.66 in x 3.92 in x 4.05 in, weighs 4.34 lb, and accepts copper wire from AWG 14 to AWG 6 or aluminum wire from AWG 12 to AWG 6. It is cULus certified, operates within a temperature range of -25 to 70 °C, and is manufactured in Mexico by Schneider Electric. The breaker is commonly used in panelboards, switchboards, and motor control centers requiring reliable overcurrent protection, and it is complete with a 120V shunt trip.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, thermal-magnetic, bolt-on
  • Voltage Rating: 480V AC
  • Current Rating: 15A
  • Dimensions: 5.66 in (143.76 mm) x 3.92 in (99.57 mm) x 4.05 in (102.87 mm) (H x W x D)
  • Standards: cULus
  • Applications: Industrial power distribution, panelboards, switchboards, motor control centers
  • Switch Type: Circuit breaker
  • Configuration: 3-pole
  • Coil Voltage Maximum: 120V (shunt trip)
  • Temp Rating: -25 to 70 °C
  • Shipping Dimensions: 5.66 in x 3.92 in x 4.05 in
  • Phase: 3
  • Voltage: 480V
  • Amperage: 15A
  • AIC rating: 35kA@480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: EGB
  • Trip Type: Thermal-magnetic
  • Panel Type: N/A
  • Breaker Type: Molded Case
  • Control Voltage Minimum: 120V (shunt trip)
  • Control Voltage Maximum: 120V (shunt trip)
  • MCM Size: N/A
  • Metal Type: N/A
  • Panel Style: N/A
  • Bus Type: N/A
  • Fuse Class: N/A
  • Insulation Temperature: N/A
  • Inductance: N/A
  • Impedance: N/A
  • Barrels: N/A
  • Class Rating: N/A
  • Diameter: N/A
  • Velocity: N/A
  • Clip Center: N/A
  • Clas: N/A
  • Mounting: Bolt-on
  • Hz: 50/60 Hz
  • Coil Material: N/A
  • Horse Power: N/A
  • Aux Contacts: N/A
  • CPT: N/A
  • Full Load Amps: N/A
  • Dist Voltage: N/A
  • Bucket Size: N/A
  • Bucket Style: N/A
  • Bucket Type: N/A
  • Full Load Amp Maximum: N/A
  • Full Load Amp Minimum: N/A
  • Enclosure: N/A
  • Relay Style: N/A
  • Coil Voltage Minimum: 120V (shunt trip)
  • Wire: AWG 14 to AWG 6 (copper), AWG 12 to AWG 6 (aluminum)
  • Amperage Maximum: 15A
  • Amperage Minimum: 15A
  • Nema Rating: N/A
  • Switch Style: N/A
  • Wire Size: AWG 14 to AWG 6 (copper), AWG 12 to AWG 6 (aluminum)
  • Certification: cULus
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Bolt-on
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-phase
  • Standards: cULus
  • Compatible Frames: EGB
  • Installation Type: Bolt-on
  • Item QTY: 1
  • Nema Starter Size: N/A
  • Breaker Frame: EGB
  • Current Rating: 15A
  • Reverse Standoff Voltage: N/A
  • Watts: N/A
  • Peak Pulse Current: N/A
  • Breakdown Voltage (MIN VBR@IT ) (V): N/A
  • Breakdown Voltage (VBR@IT) (V): N/A
  • Polarity: N/A
  • Operating Temperature Maximum Celsius: 70 °C
  • Max Clamp Voltage: N/A
  • On-State Current: N/A


Product Identification
  • UPC: 078590144640
  • GTIN: 00785901446408
