Square D
Price
Save $923.09
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

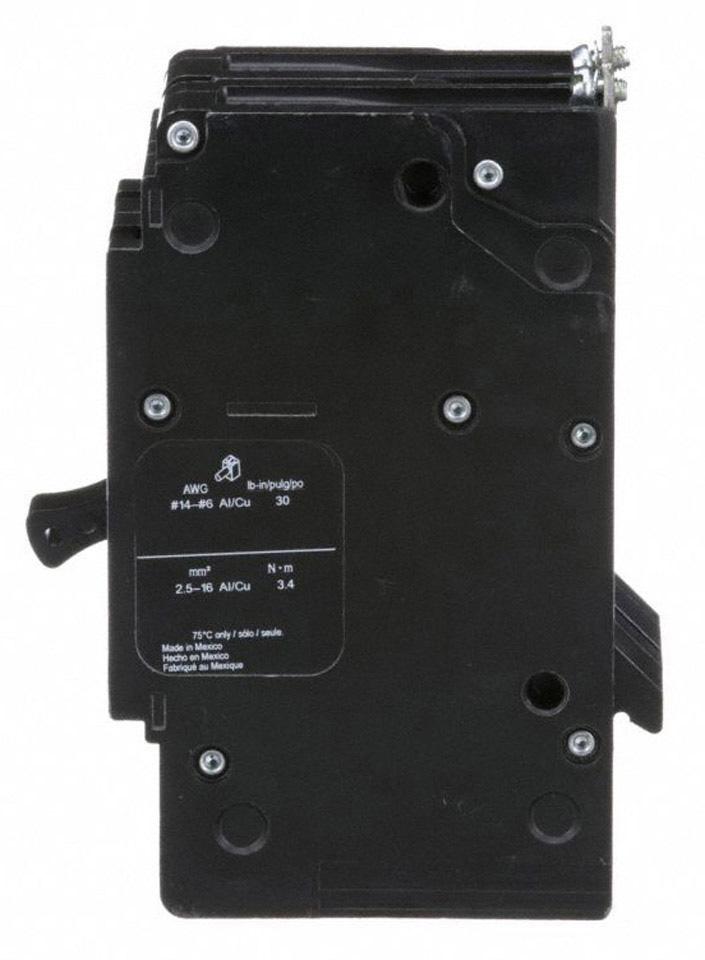

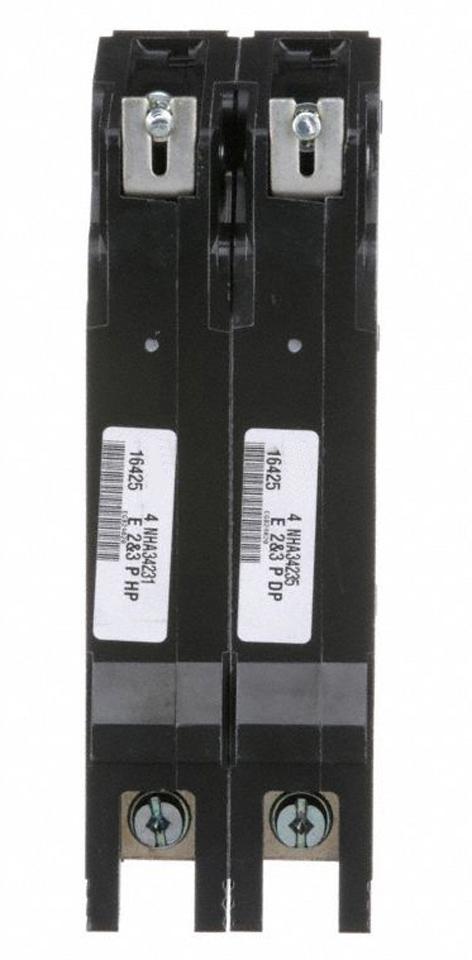

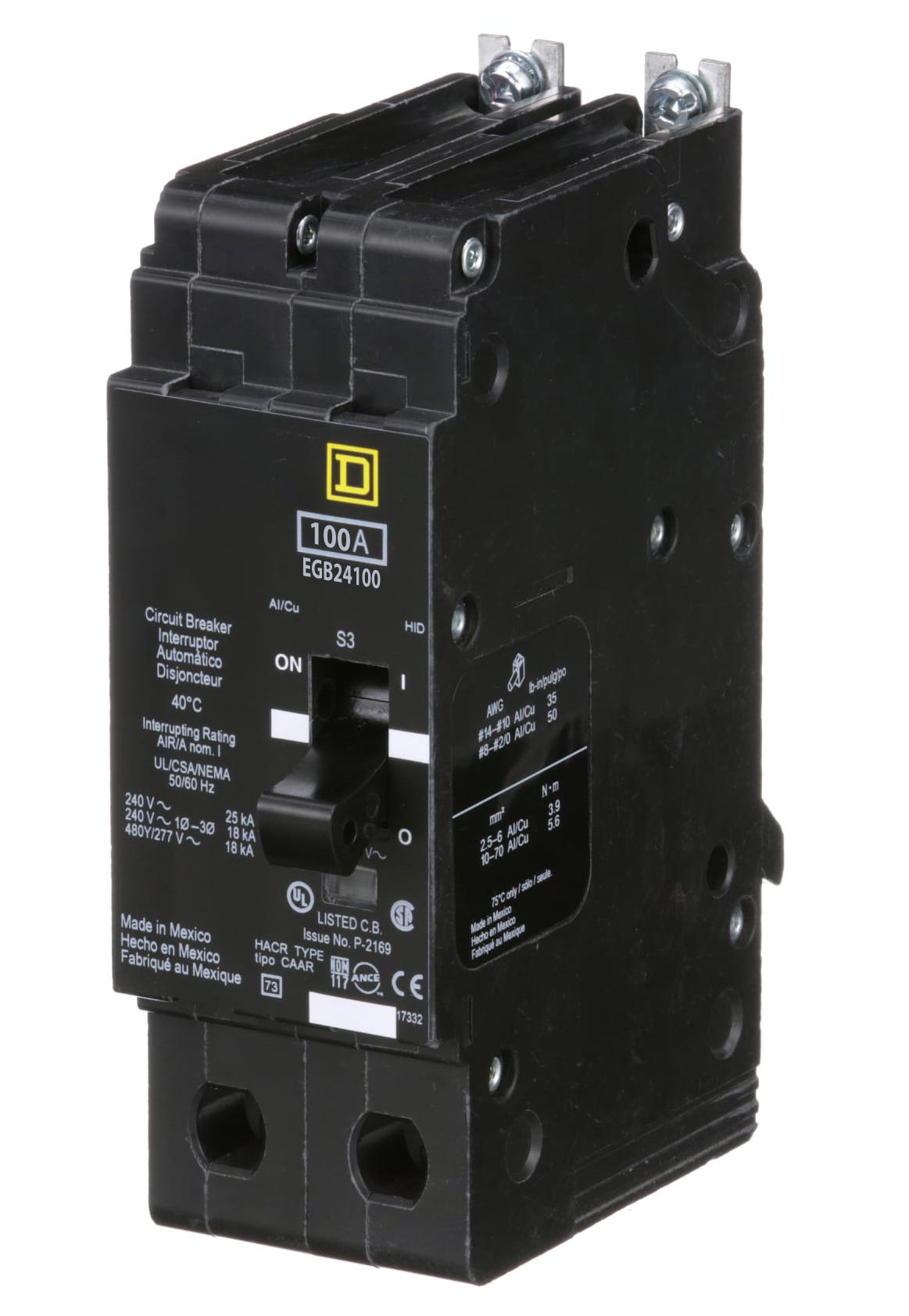

Square D EGB24100 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 100A current rating and a 480V AC voltage rating, housed within a compact, durable E-Frame construction measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.48 lb. This thermal-magnetic breaker is cULus listed and complies with industry standards, offering a 35kA interrupting rating at 480V for robust fault protection. Its typical applications include integration into NF panelboards for safeguarding single-phase branch circuits, utilizing a bolt-on, two-pole connection with lug terminals suitable for copper or aluminum wiring from AWG 14 to 2/0.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Dimensions: 5.66 in (143.76 mm) H x 1.96 in (49.78 mm) W x 4.05 in (102.87 mm) D
  • Standards: cULus
  • Applications: NF Panelboards, Industrial & Commercial Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Poles: 2
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: G; E-Frame
  • Panel Type: NF panelboard
  • Breaker Type: Molded Case
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Connection: Bolt-On
  • Terminal Connection: Lug
  • Wire Size: AWG 12 to AWG 2/0 (Aluminum), AWG 14 to AWG 2/0 (Copper)
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu); Max. 6 AWG (Cu/Al)
  • Certification: cULus
  • Weight: 2.48 lb


Product Identification
  • UPC: 785901128595
  • GTIN: 00785901128595
