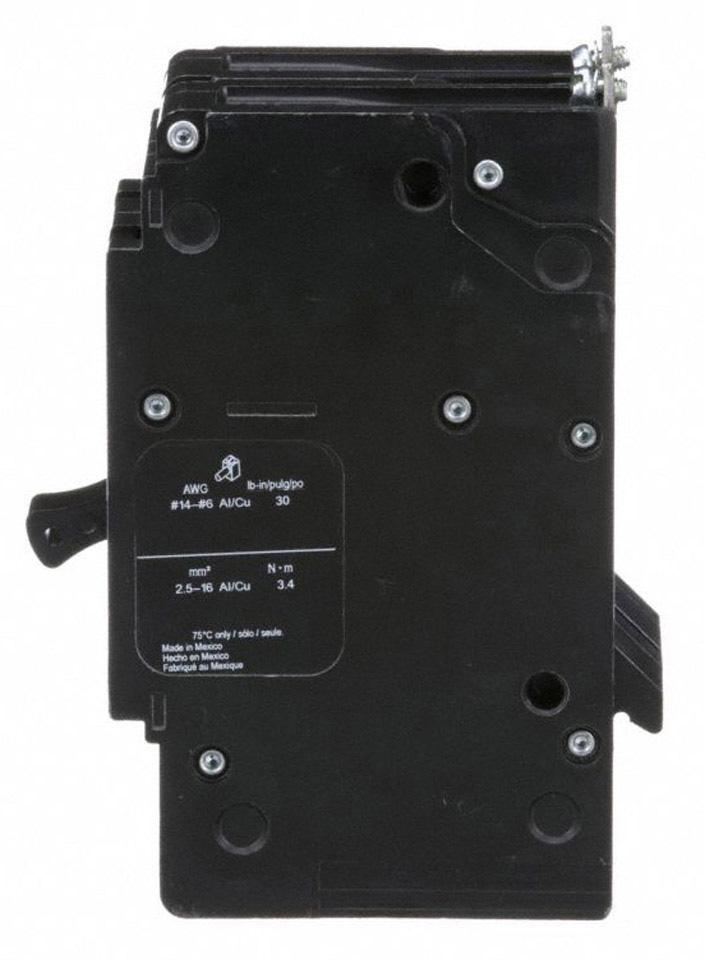

Square D EGB24090 - Molded Case Circuit Breaker, 90A, 480V
Square D EGB24090 - Molded Case Circuit Breaker, 90A, 480V
Square D EGB24090 - Molded Case Circuit Breaker, 90A, 480V
Square D EGB24090 - Molded Case Circuit Breaker, 90A, 480V
Square D EGB24090 - Molded Case Circuit Breaker, 90A, 480V
Square D EGB24090 - Molded Case Circuit Breaker, 90A, 480V
Square D EGB24090 - Molded Case Circuit Breaker, 90A, 480V
Square D EGB24090 - Molded Case Circuit Breaker, 90A, 480V

Square D EGB24090 - Molded Case Circuit Breaker, 90A, 480V

Square D
Price
Save $1,464.79
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Square D EGB24090 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 90A current rating and a 480V AC voltage rating, housed within a compact, bolt-on unit measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.458 lb. The breaker is cULus certified and operates across a temperature range of -25 to 70 °C, ensuring compliance with industry standards for safety and performance. Its thermal-magnetic protection with long-time and instantaneous (LI) trip functions makes it suitable for installation in NF panelboards, protecting feeder and branch circuits with copper or aluminum wiring.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 90A
  • Dimensions: 5.66 in (143.76 mm) H x 1.96 in (49.78 mm) W x 4.05 in (102.87 mm) D
  • Standards: cULus Certified
  • Applications: NF Panelboards, Industrial & Commercial Feeder/Branch Circuit Protection
  • Poles: 2
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Connection: Bolt-On
  • Wire Size: AWG 12 to 2/0 (Aluminum), AWG 14 to 2/0 (Copper)
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Panel Type: NF panelboard
  • Weight: 2.458 lb


Product Identification
  • UPC: 785901325000
  • GTIN: 00785901325000
