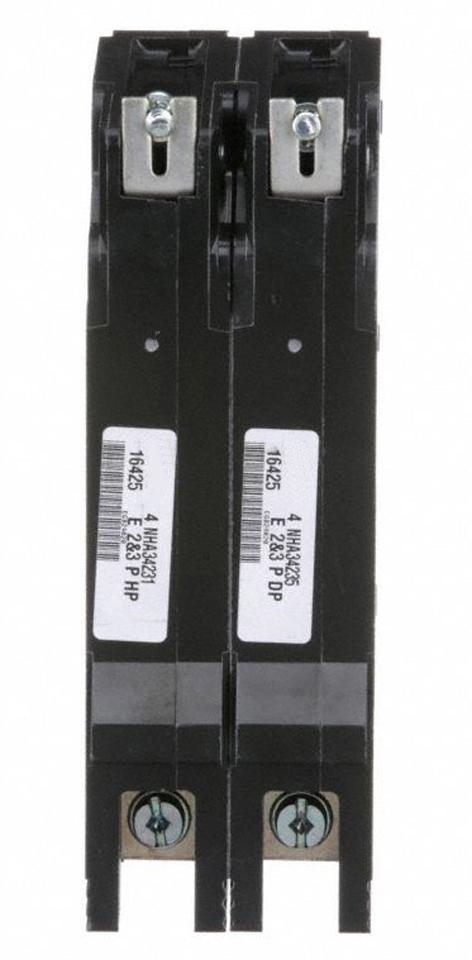

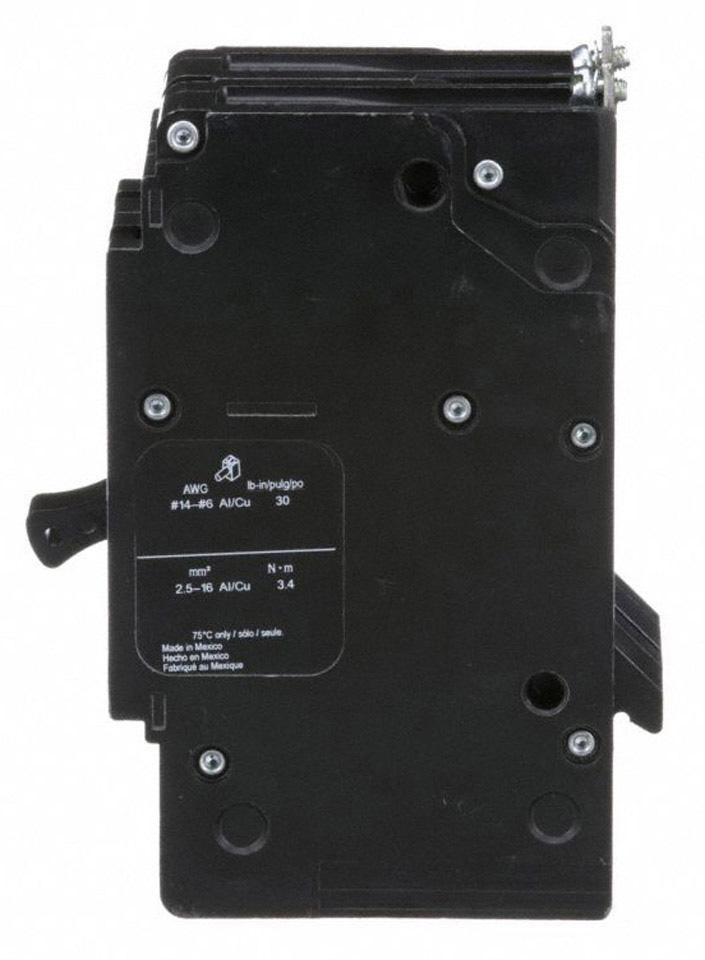

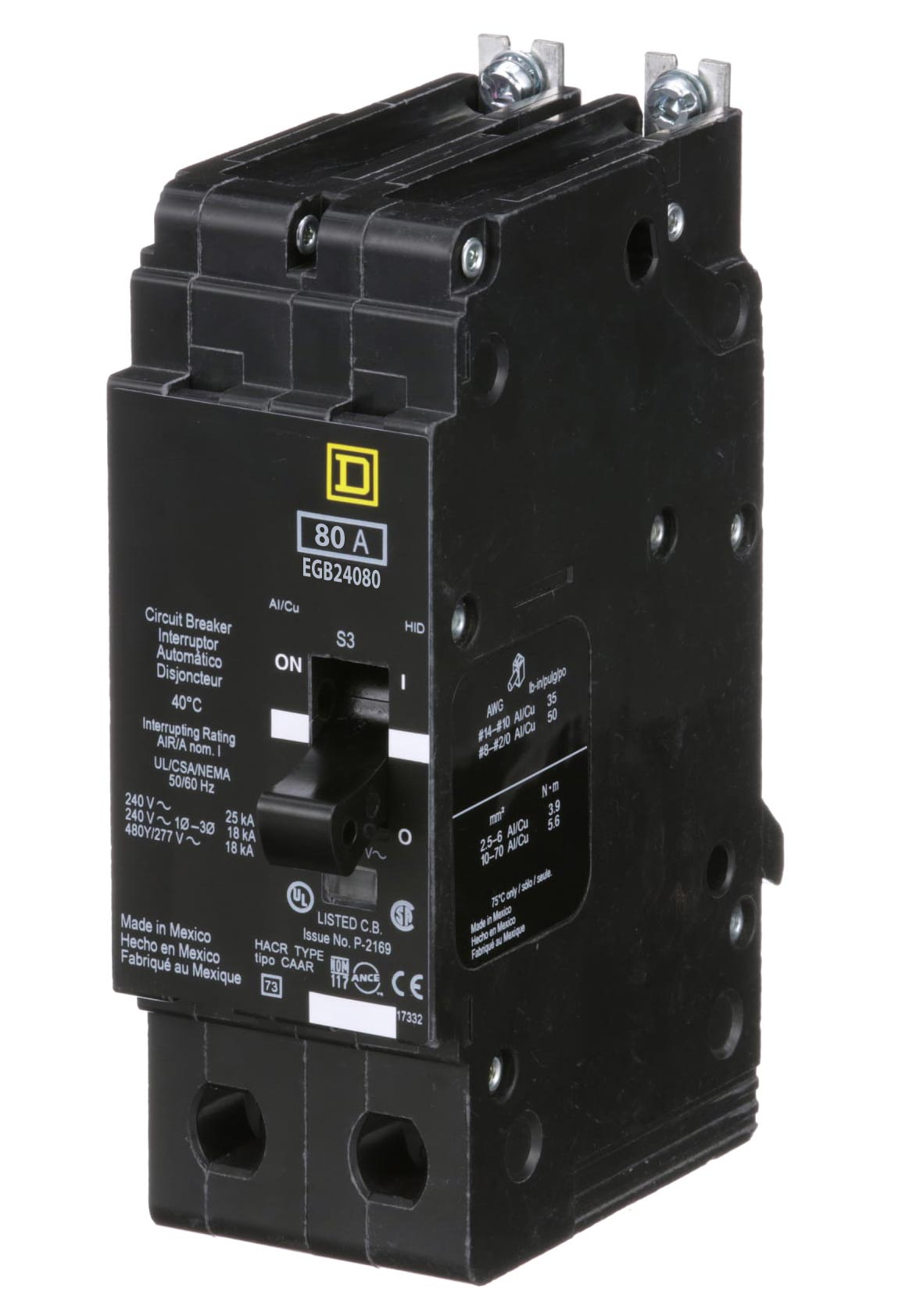

Square D EGB24080 - Molded Case Circuit Breaker 80A 480V 2-Pole

Price
Regular price $414.20
Regular price $1,280.00 Sale price $414.20
Save $865.80
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Square D EGB24080 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions, rated for 80A at 480V AC with a 35kA interrupting capacity. The compact, bolt-on unit measures 143.76 mm H x 49.78 mm W x 102.87 mm D, weighs 2.458 lb, and operates within a temperature range of -25 to 70 °C. It is cULus listed for safety compliance and is engineered for integration into NF panelboards, accommodating copper wire sizes from AWG 14 to 2/0 and aluminum from AWG 12 to 2/0.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, LI (Long-Time & Instantaneous) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 80A
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Standards: cULus
  • Applications: Industrial and Commercial Electrical Distribution, NF Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Poles: 2
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • AIC rating: 35kA @ 480V
  • Phase: 1
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Wire Size: AWG 12 to 2/0 (Aluminum), AWG 14 to 2/0 (Copper)
  • Panel Type: NF panelboard
  • Certification: cULus
  • Weight: 2.458 lb


Product Identification
  • UPC: 785901130468
  • GTIN: 00785901130468
