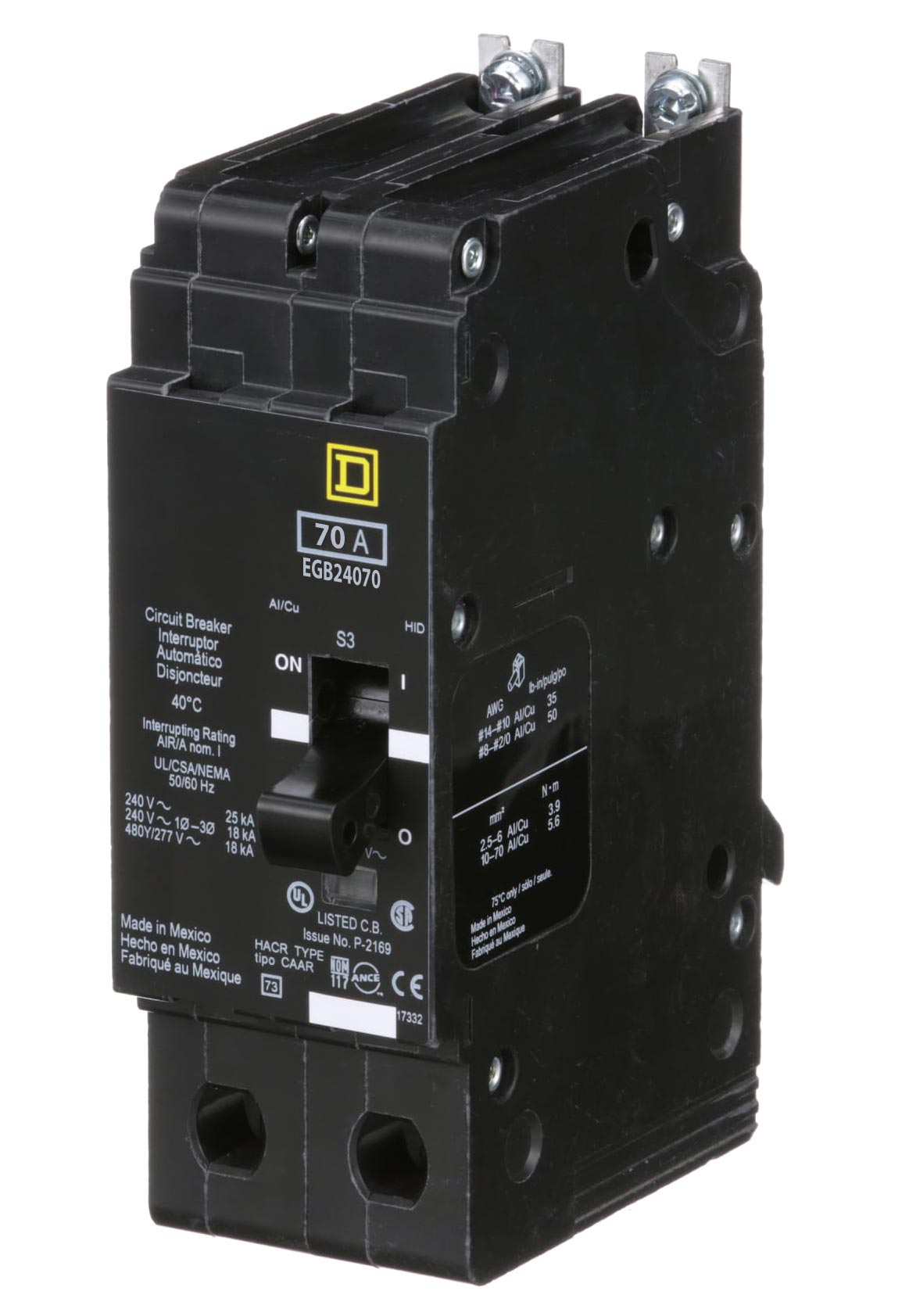

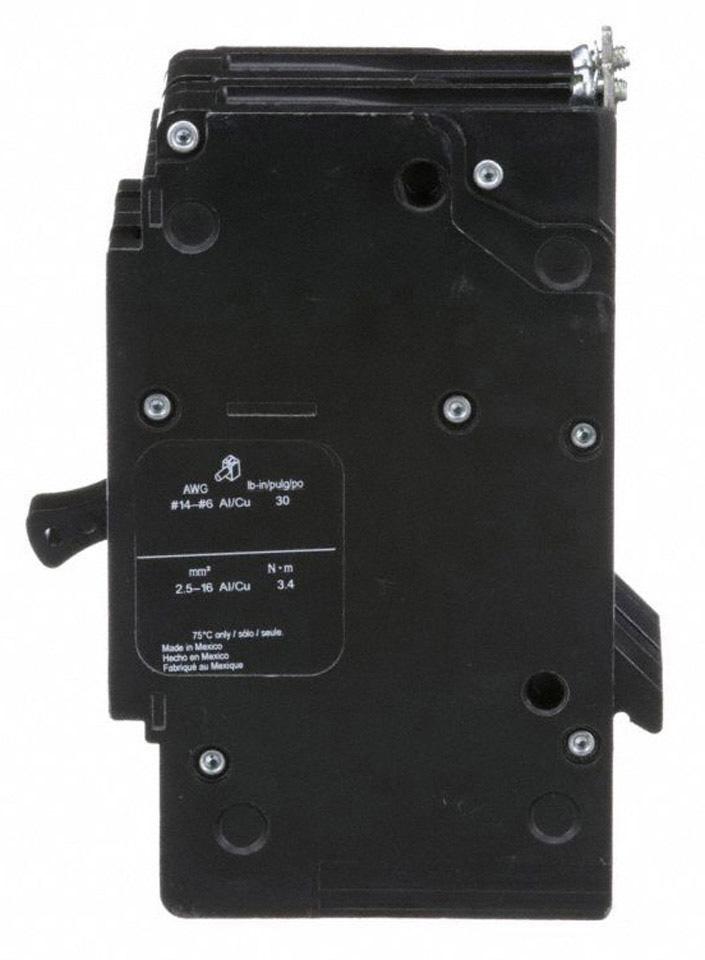

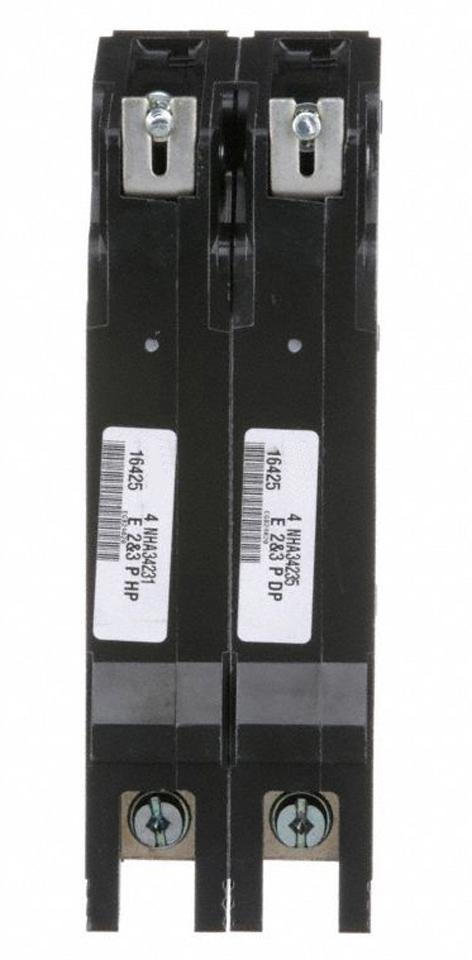

Square D EGB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EGB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EGB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EGB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EGB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EGB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EGB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole
Square D EGB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole

Square D EGB24070 - Molded Case Circuit Breaker 70A 480V 2-Pole

Square D
Price
Save $797.91
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D EGB24070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 70A current rating and a 480V AC voltage rating, engineered for single-phase applications within NF panelboards. The breaker's compact dimensions of 143.76 mm H x 49.78 mm W x 102.87 mm D and 2.458 lb weight house a robust thermal-magnetic trip unit providing both long-time and instantaneous (LI) protection functions. It is cULus listed and built to operate in a wide temperature range from -25°C to 70°C (-13°F to 158°F). This two-pole, bolt-on breaker is typically applied to protect feeders and branch circuits, compatible with copper wire sizes from AWG 14 to 2/0 and aluminum from AWG 12 to 2/0, and offers an interrupting capacity of 35kA at 480V AC.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Dimensions: 5.66 in H (143.76 mm) x 1.96 in W (49.78 mm) x 4.05 in D (102.87 mm)
  • Standards: cULus Certified
  • Applications: Industrial & Commercial Feeder/Branch Circuit Protection in NF Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Panel Type: NF Panelboard
  • Breaker Type: Molded Case
  • Wire Size: AWG 14 to 2/0 (Copper), AWG 12 to 2/0 (Aluminum)
  • Certification: cULus
  • Family: EGB Series
  • Country of Origin: Mexico
  • Weight: 2.458 lb


Product Identification
  • UPC: 785901130451
  • GTIN: 00785901130451
