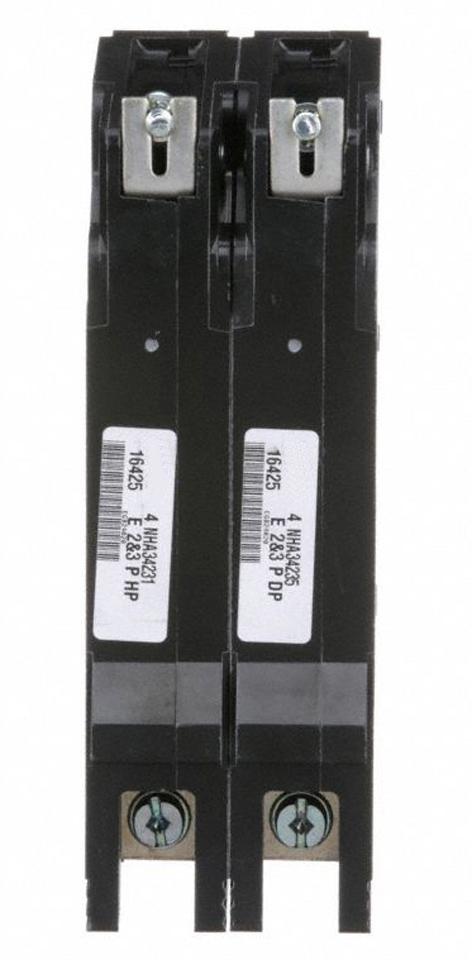

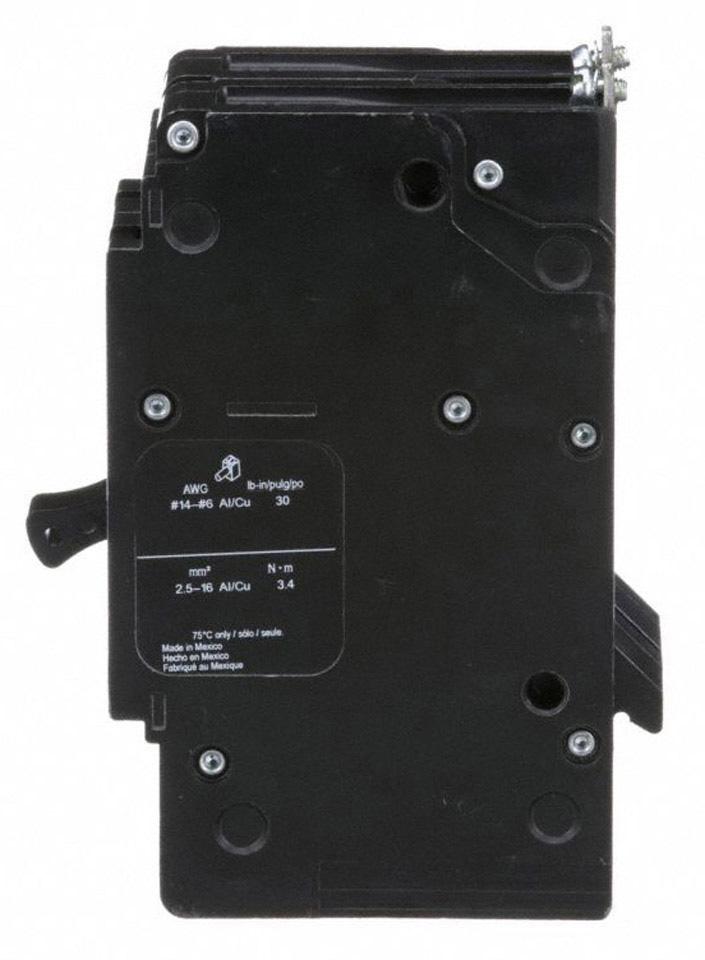

Square D EGB24060 - 60A 2-Pole Circuit Breaker (480V, 35kA)
Square D EGB24060 - 60A 2-Pole Circuit Breaker (480V, 35kA)
Square D EGB24060 - 60A 2-Pole Circuit Breaker (480V, 35kA)
Square D EGB24060 - 60A 2-Pole Circuit Breaker (480V, 35kA)
Square D EGB24060 - 60A 2-Pole Circuit Breaker (480V, 35kA)
Square D EGB24060 - 60A 2-Pole Circuit Breaker (480V, 35kA)
Square D EGB24060 - 60A 2-Pole Circuit Breaker (480V, 35kA)
Square D EGB24060 - 60A 2-Pole Circuit Breaker (480V, 35kA)

Square D EGB24060 - 60A 2-Pole Circuit Breaker (480V, 35kA)

Square D
Price
Save $497.38
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

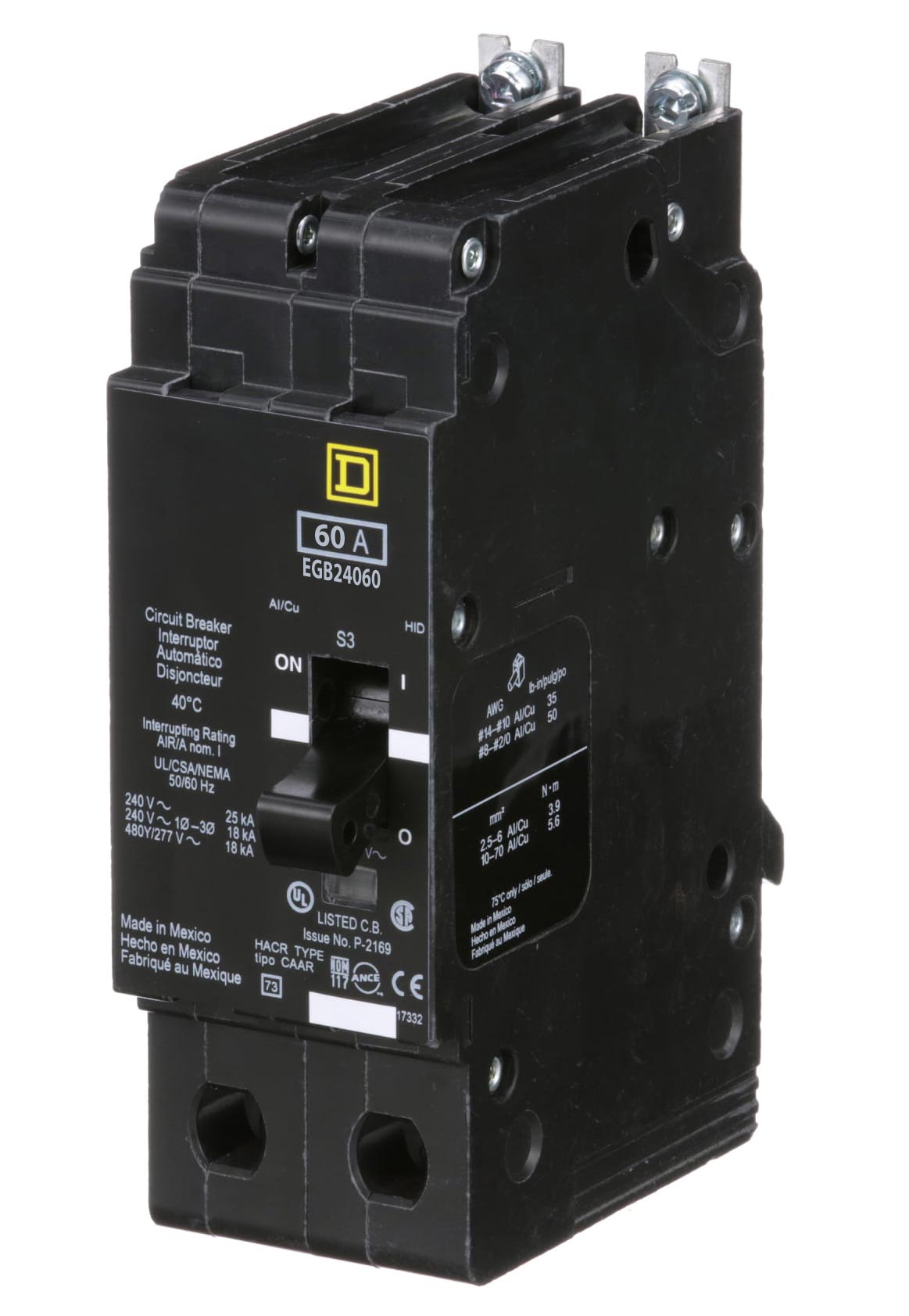

Square D EGB24060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 60A current rating and a 480V AC voltage rating, housed within a compact, bolt-on E-frame measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.2 lb. This thermal-magnetic breaker is cULus listed and provides 35kA interrupting capacity at 480V, with an operational temperature range of -25 to 70 °C, making it suitable for installation in NF panelboards for feeder and branch circuit applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 60A
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Standards: cULus
  • Applications: Industrial and Commercial Feeder/Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: Bolt-On, Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: G; E-Frame
  • Panel Type: NF Panelboard
  • Breaker Type: Molded Case
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu); Max. 6 AWG (Cu/Al)
  • Wire Size: AWG 12 to 2/0 (Aluminum), AWG 14 to 2/0 (Copper)
  • Certification: cULus
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Full Load Amps: 60A
  • Enclosure: Molded Case
  • Wire: Copper or Aluminum
  • Nema Rating: Standard Industrial
  • Certification: cULus
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Lug
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single Phase
  • Standards: cULus
  • Installation Type: Fixed
  • Breaker Frame: E-Frame
  • Current Rating: 60A
  • Operating Temperature Maximum Celsius: 70 °C


Product Identification
  • UPC: 785901130406
  • GTIN: 00785901130406
