Square D
Price
Save $502.81
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

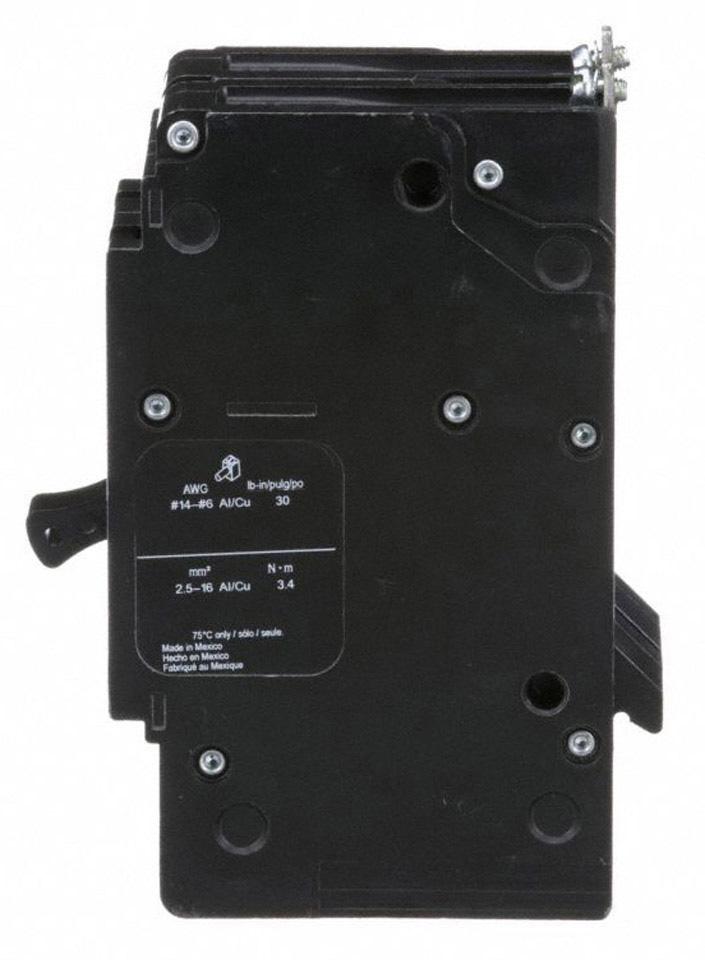

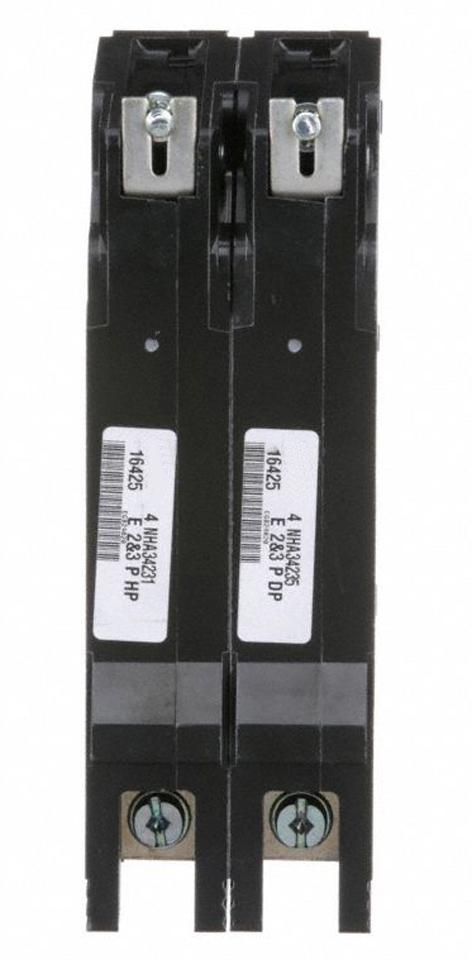

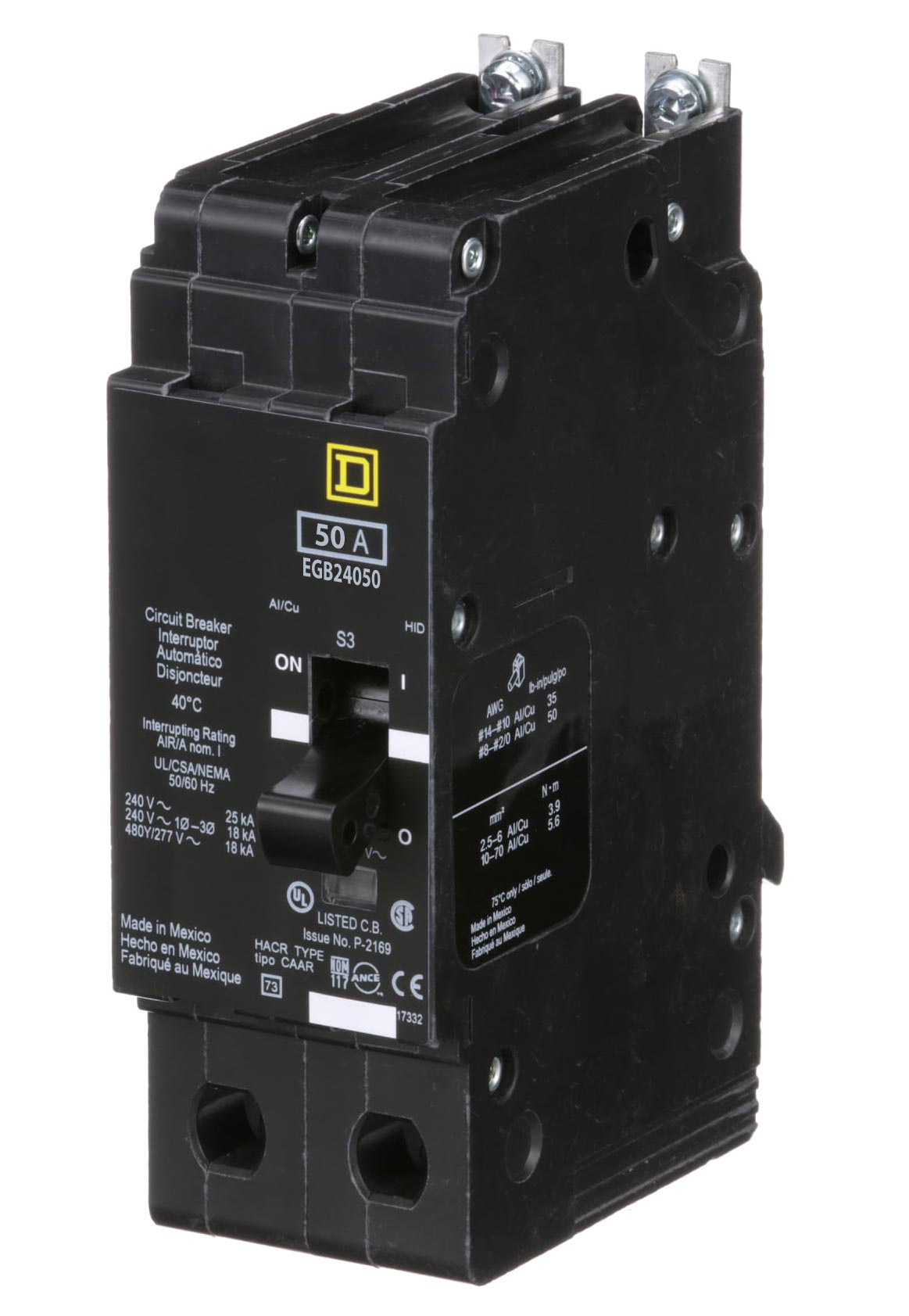

Square D EGB24050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 50A current rating and a 480V voltage rating, engineered for single-phase applications. The breaker is constructed with a compact E-frame design measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and a weight of 2.48 lb, featuring bolt-on connections and lug terminals for secure installation. It complies with cULus standards and is rated for an interrupting capacity of 35kA at 480V. This thermal-magnetic breaker is typically applied in NF panelboards for protecting feeder and branch circuits in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 50A
  • Dimensions: 5.66 in (143.76 mm) H x 1.96 in (49.78 mm) W x 4.05 in (102.87 mm) D
  • Standards & Certification: cULus
  • Applications: NF Panelboards, Industrial Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: G; E-Frame
  • Panel Type: NF panelboard
  • Breaker Type: Molded Case
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu); Max. 6 AWG (Cu/Al)
  • Terminal Connection: Lug
  • Wire Size: AWG 12 to 2/0 (Aluminum), AWG 14 to 2/0 (Copper)


Product Identification
  • UPC: 785901323259
  • GTIN: 00785901323259
