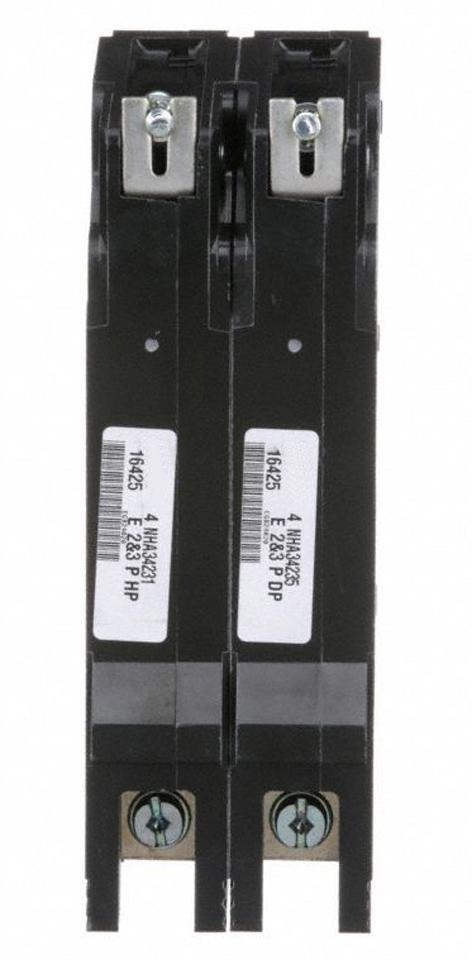

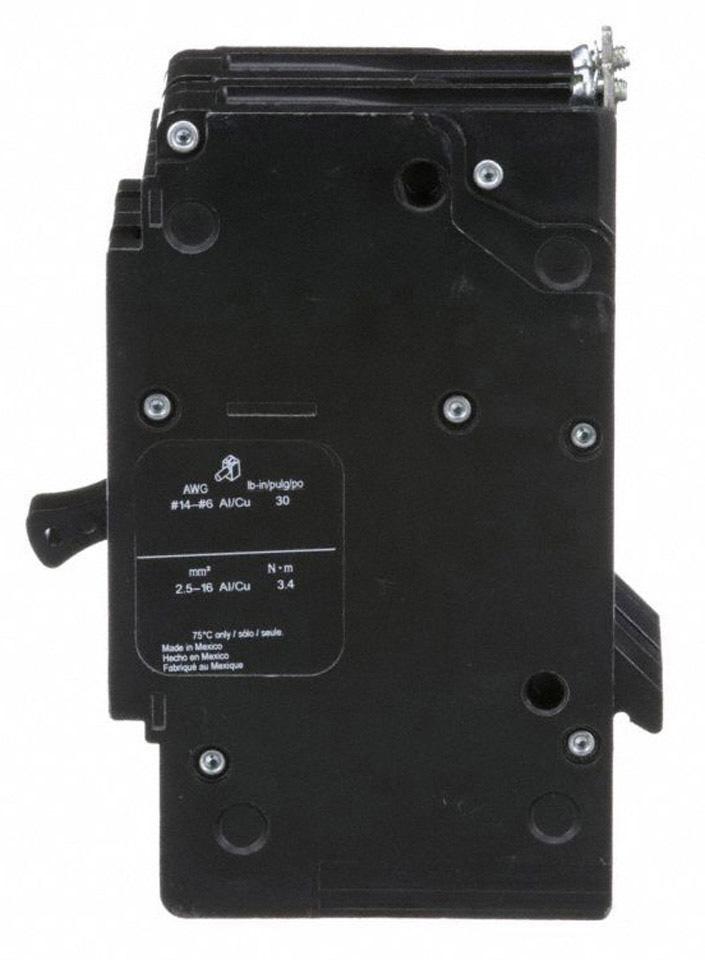

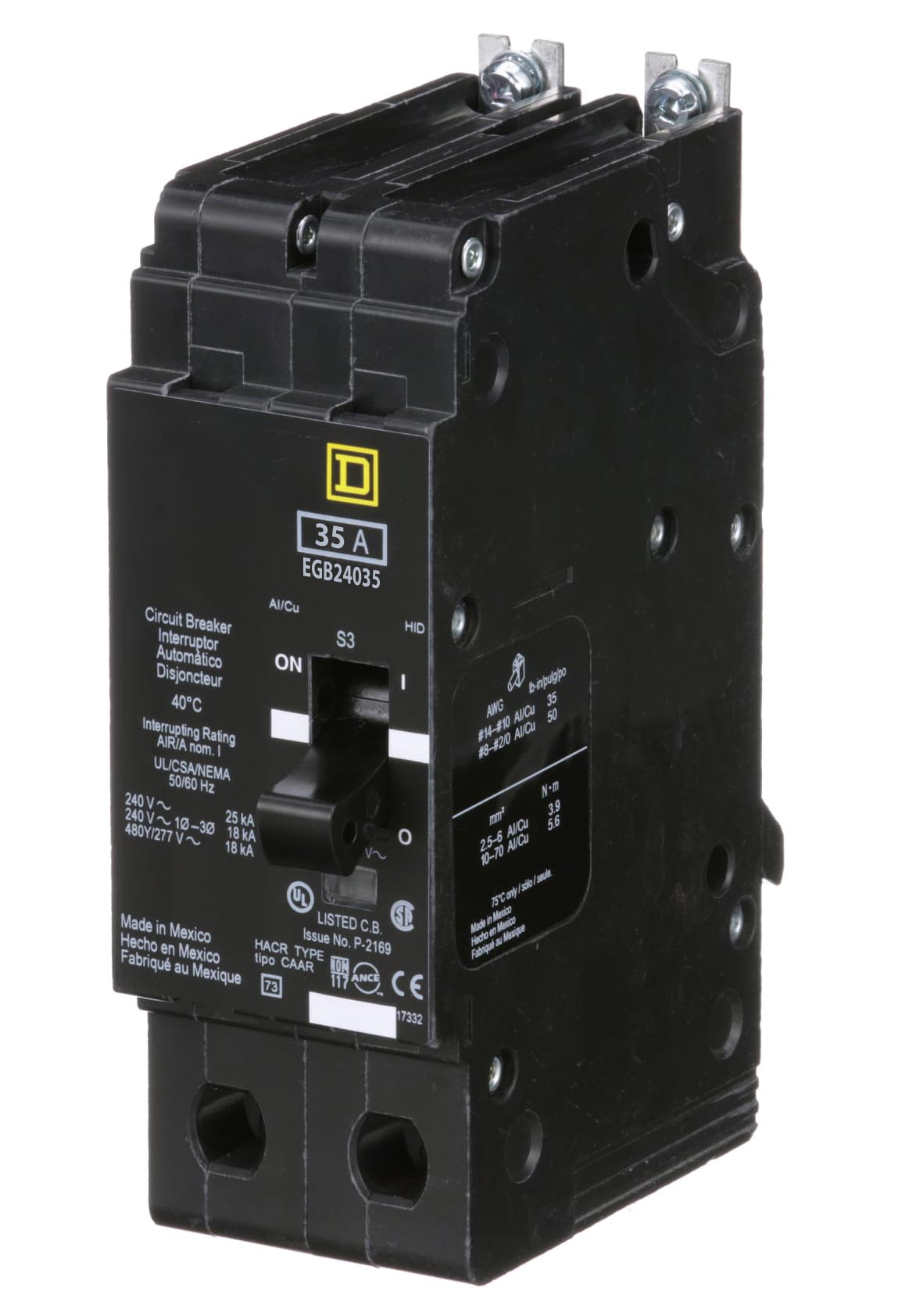

Square D EGB24035 - Molded Case Circuit Breaker 35A 480V 2-Pole
Square D EGB24035 - Molded Case Circuit Breaker 35A 480V 2-Pole
Square D EGB24035 - Molded Case Circuit Breaker 35A 480V 2-Pole
Square D EGB24035 - Molded Case Circuit Breaker 35A 480V 2-Pole
Square D EGB24035 - Molded Case Circuit Breaker 35A 480V 2-Pole
Square D EGB24035 - Molded Case Circuit Breaker 35A 480V 2-Pole
Square D EGB24035 - Molded Case Circuit Breaker 35A 480V 2-Pole
Square D EGB24035 - Molded Case Circuit Breaker 35A 480V 2-Pole

Square D EGB24035 - Molded Case Circuit Breaker 35A 480V 2-Pole

Square D
Price
Save $500.90
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D EGB24035 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 35A current rating and a 480V AC voltage rating, suitable for single-phase applications. The breaker is constructed with a compact form factor measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and a weight of 2.47 lb, utilizing a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection functions. It is cULus listed and engineered for installation in NF panelboards, operating effectively within a temperature range of -25 to 70 °C. Typical applications include protecting feeders and branch circuits in commercial buildings and industrial facilities, accommodating wire sizes from AWG 14 to 2/0 copper or AWG 12 to 2/0 aluminum with its bolt-on connection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, LI (Long-Time & Instantaneous) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 35A
  • Dimensions: 5.66 in (143.76 mm) H x 1.96 in (49.78 mm) W x 4.05 in (102.87 mm) D
  • Standards: cULus Certified
  • Applications: Feeder and Branch Circuit Protection in NF Panelboards for Commercial/Industrial Use
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Phase: 1
  • AIC Rating: 35kA at 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Panel Type: NF panelboard
  • Breaker Type: Molded Case
  • Wire Size: AWG 12 to AWG 2/0, Aluminum; AWG 14 to AWG 2/0, Copper
  • Certification: cULus
  • Family: EGB Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901335207
  • GTIN: 00785901335207
