Square D
Price
Save $504.81
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

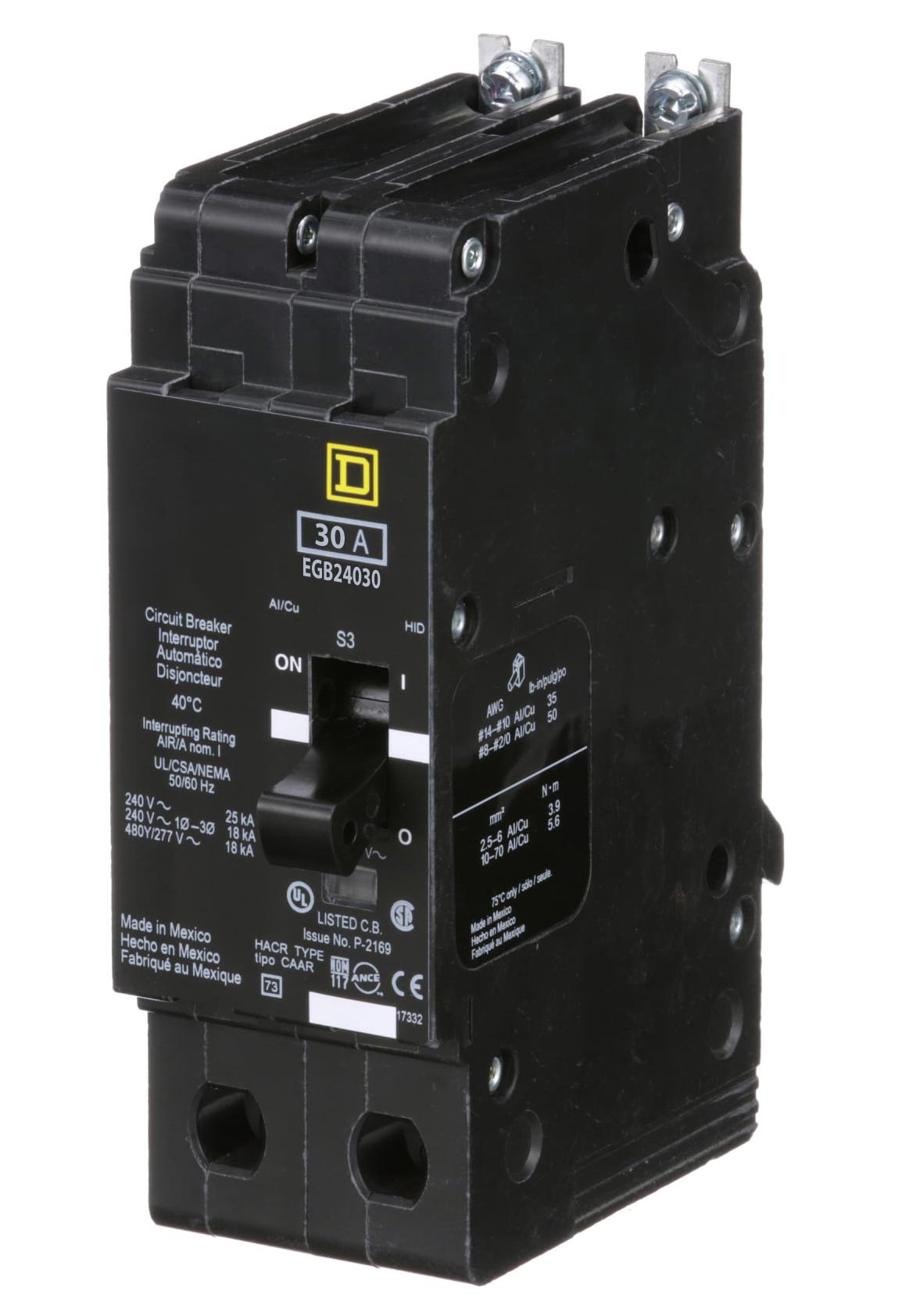

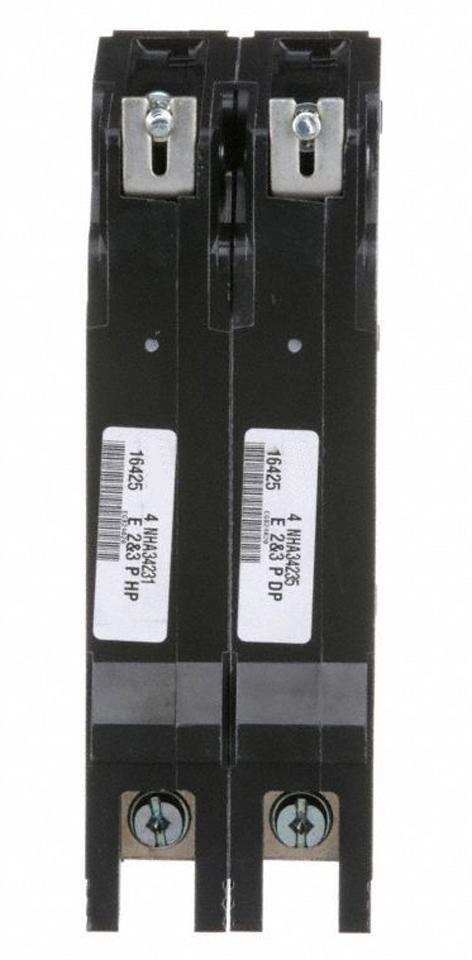

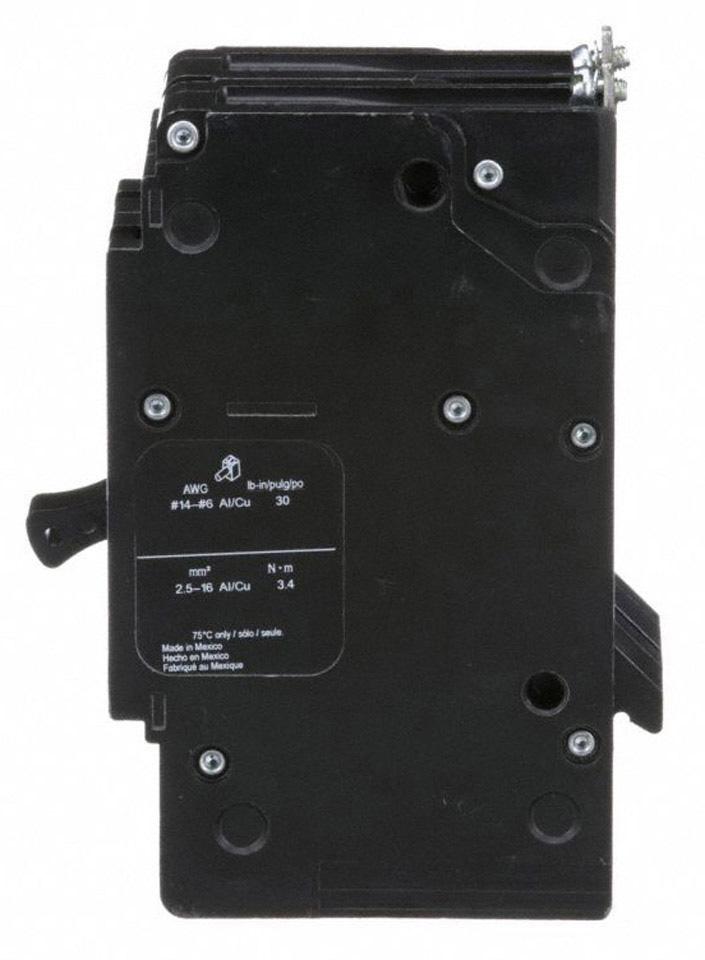

Square D EGB24030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 30A current rating and a 480V AC voltage rating, housed within a compact E-Frame/G Frame design measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.6 lb. The breaker is cULus listed and provides thermal-magnetic protection with a 35kA interrupting rating at 480V, utilizing a long-time and instantaneous (LI) trip function. Its bolt-on connection with lug terminals and compatibility with 6-12 AWG aluminum or 6-14 AWG copper wire makes it suitable for installation in NF-style panelboards for motor and feeder protection circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, LI (Long-Time & Instantaneous) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 30A
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Standards: cULus
  • Applications: Motor & Feeder Protection in Industrial Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: G; E-Frame
  • Panel Type: NF panelboard
  • Breaker Type: Molded Case
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • MCM Size: Min. 12 AWG (Al), 14 AWG (Cu); Max. 6 AWG (Cu/Al)
  • Terminal Connection: Lug
  • Wire Size: AWG 12 to AWG 6 (Aluminum), AWG 14 to AWG 6 (Copper)
  • Certification: cULus
  • Connection: Bolt-On
  • Weight: 2.6 lb


Product Identification
  • UPC: 785901397694
  • GTIN: 00785901397694
