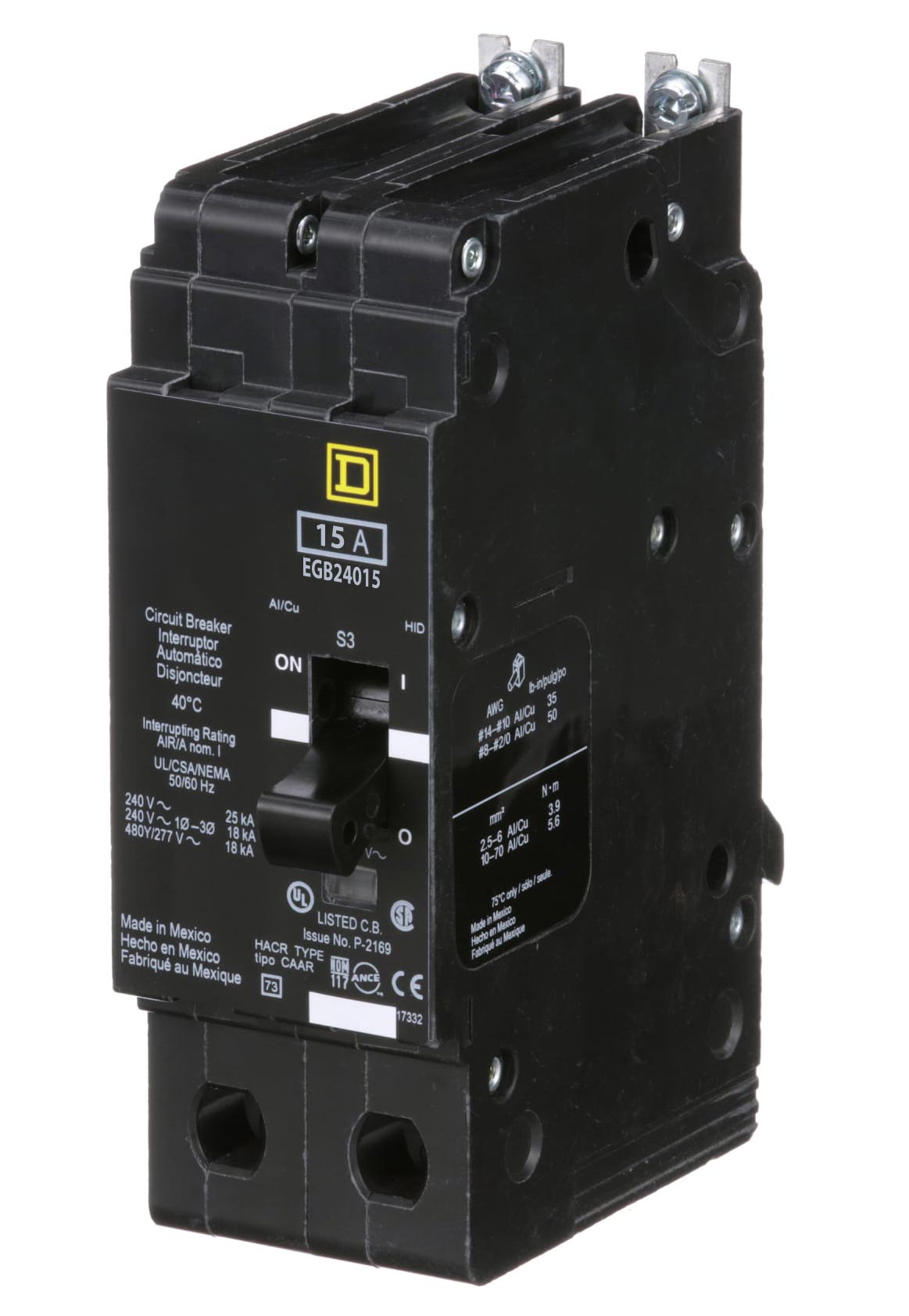

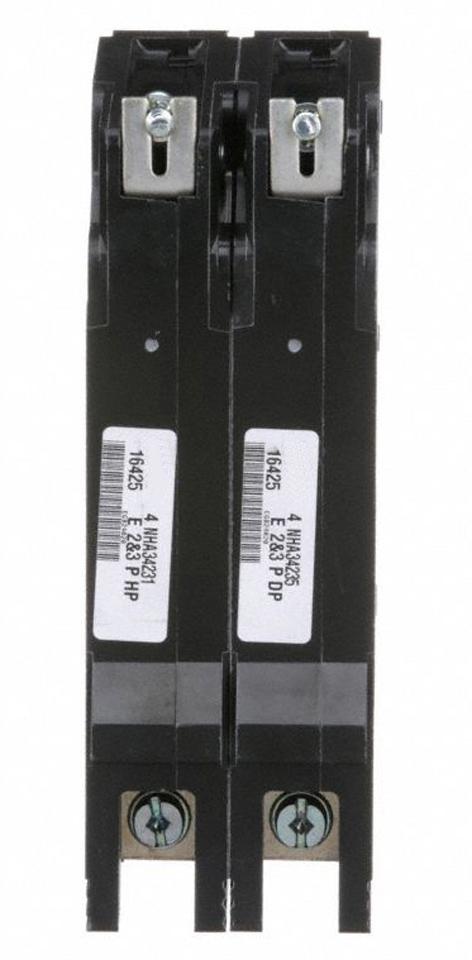

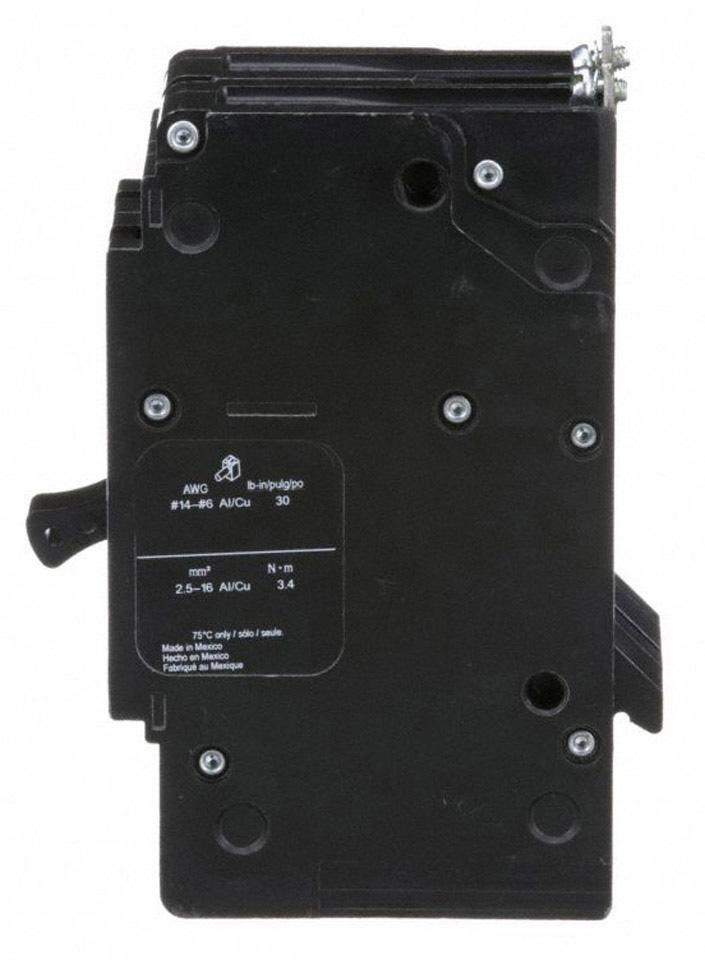

Square D EGB24015 - Molded Case Circuit Breaker, 15A 2-Pole
Square D EGB24015 - Molded Case Circuit Breaker, 15A 2-Pole
Square D EGB24015 - Molded Case Circuit Breaker, 15A 2-Pole
Square D EGB24015 - Molded Case Circuit Breaker, 15A 2-Pole
Square D EGB24015 - Molded Case Circuit Breaker, 15A 2-Pole
Square D EGB24015 - Molded Case Circuit Breaker, 15A 2-Pole
Square D EGB24015 - Molded Case Circuit Breaker, 15A 2-Pole
Square D EGB24015 - Molded Case Circuit Breaker, 15A 2-Pole

Square D EGB24015 - Molded Case Circuit Breaker, 15A 2-Pole

Square D
Price
Save $524.76
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D EGB24015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 15A current rating and a 480Y/277V voltage rating, housed within a compact 125A/EGB frame with dimensions of 143.76 mm H x 49.78 mm W x 102.87 mm D and a weight of 2.61 lb. This thermal magnetic breaker is cULus certified for safety and operates effectively across a temperature range of -25 to 70 °C. Its 2-pole, bolt-on configuration with lug terminals is engineered for NF panelboards, offering a 35kA interrupting capacity at 480V to safeguard branch circuits.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic Protection, Standard Breaker
  • Voltage Rating: 480Y/277V AC
  • Current Rating: 15A
  • Frame Size: 125A/EGB
  • AIC Rating: 35kA @ 480V
  • Poles: 2
  • Connection: Bolt-On, Lug Terminal
  • Phase: 1
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Wire Size Compatibility: 12-6 AWG (Aluminum), 14-6 AWG (Copper)
  • Panel Type: NF Panelboard
  • Standards & Certification: cULus
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Weight: 2.61 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901335191
  • GTIN: 00785901335191
